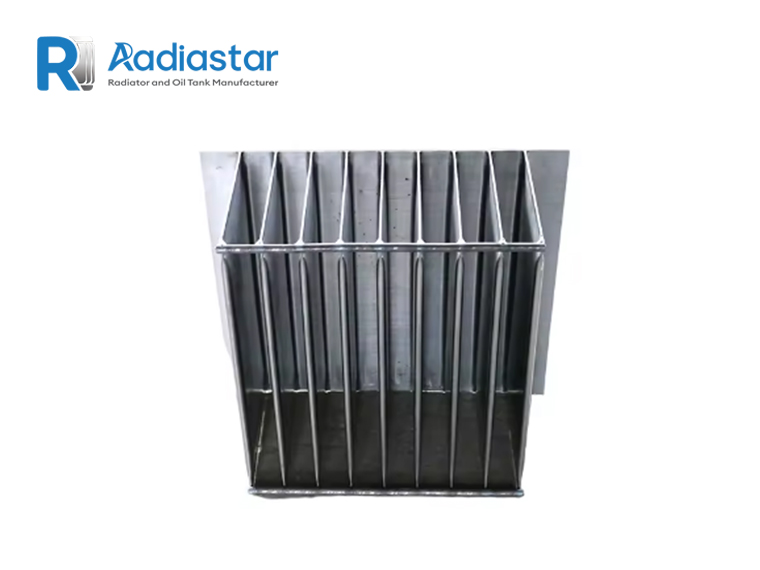

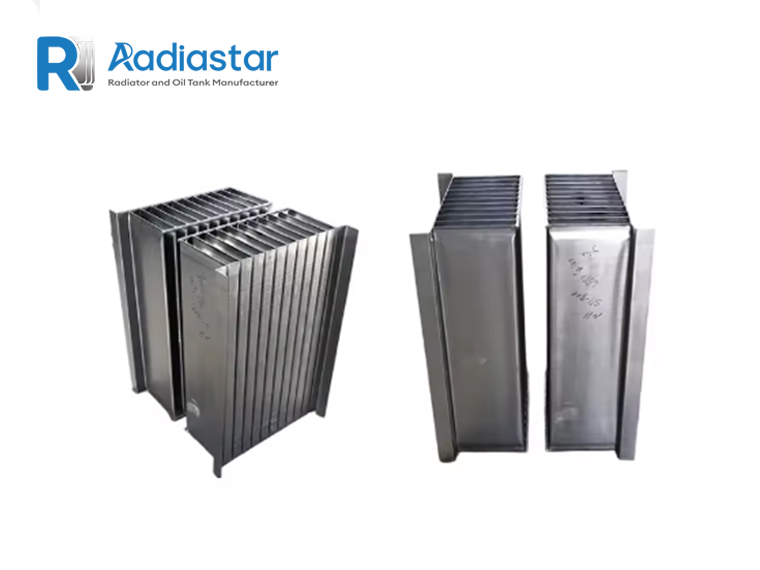

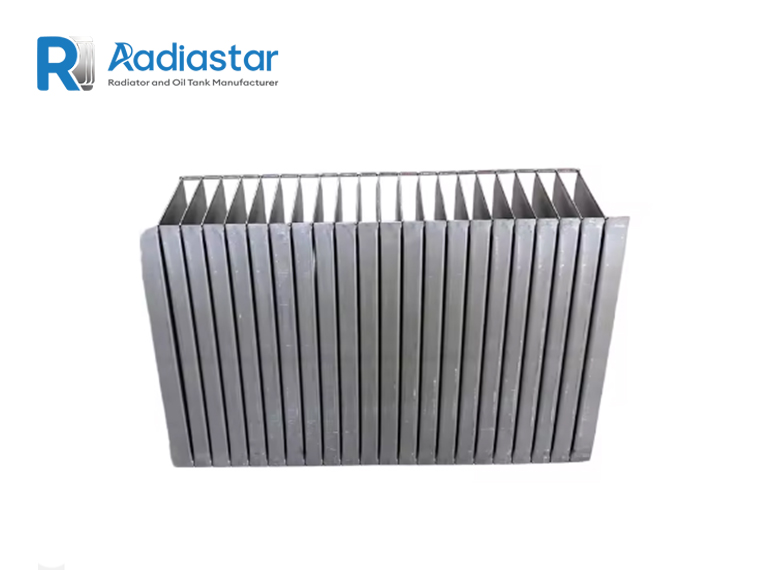

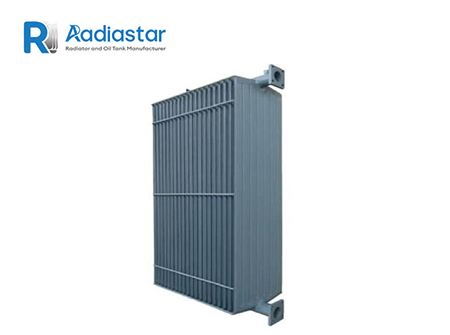

Finned radiators Separate the two media with unequal pressures, with a flexible round film, the flexible surface of the diaphragm can be close to the plane without corrugation, that is, a flat diaphragm or an approximate flat diaphragm, or it can have a variety of corrugations.as the cooling components of the power transformer and special transformer, are widely used at home and abroad.

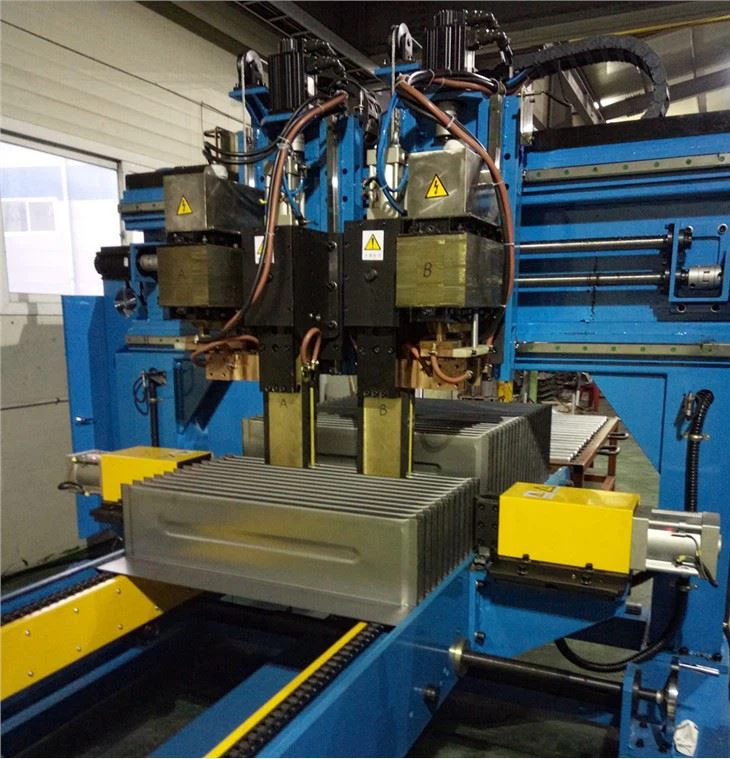

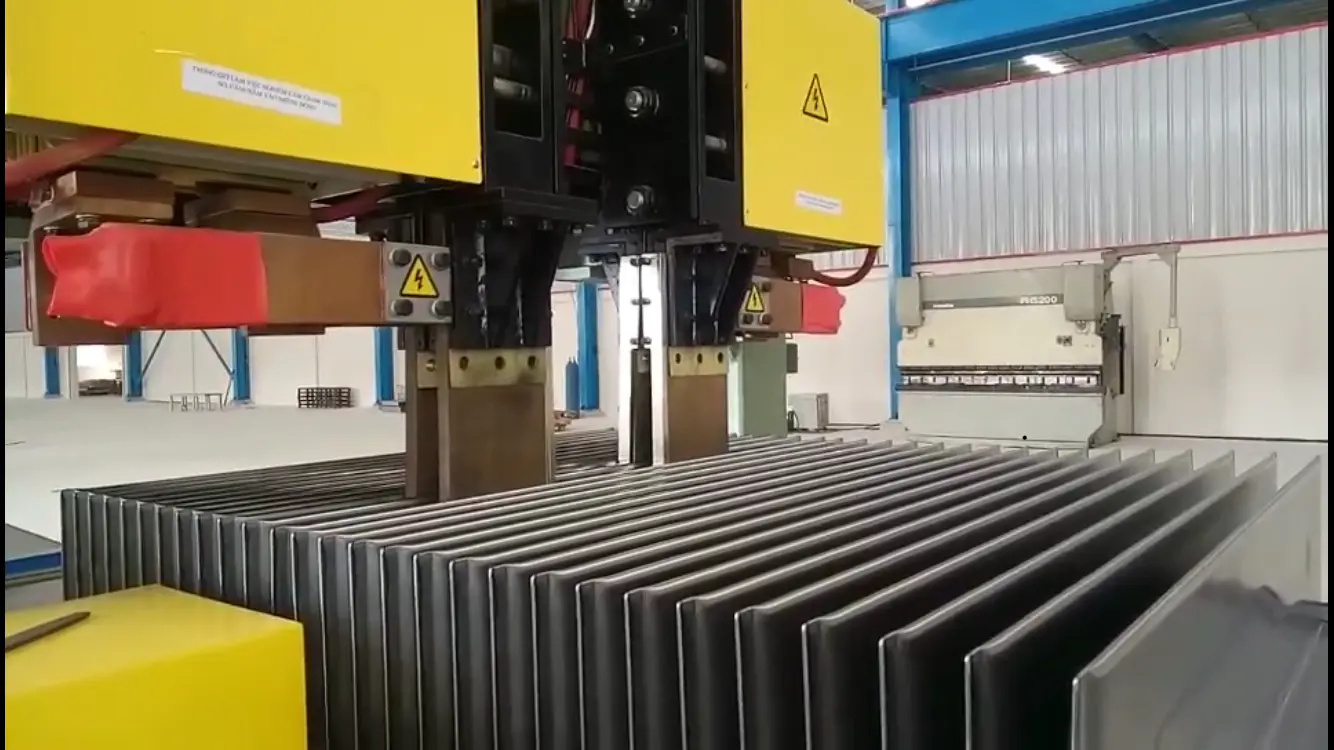

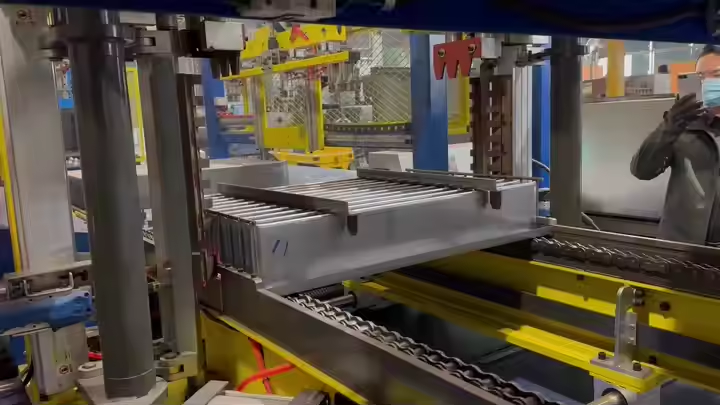

Our radiator is manufactured by automatically punching, combining, drop sew-welding & edge cutting with high quality cold rolled steel to make the elements. The connection between elements and oil collection pipe apply outside welding(CO2 protecting welding)which has completed solved the problems of welding residue&scrap iron to affect the production quality by applying inner welding. It has also experienced sealing testing,surface treating and hot oil flushing to ensure the product quality. Product tested by the third-party to fully meet the transformer industry standard(JBT5347-99).
Corrugated diaphragm is a thin-shell elastomer, and the diaphragm is a round membrane-like elastic sensitive element. When the two sides of the diaphragm are subjected to different pressures (or forces), the diaphragm moves towards the strain of the lower pressure side, causing its center to produce a displacement that is related to the pressure difference
| Type | PG,PC |
| Width(mm) | 310,380,480,520,535 |
| Center distance(mm) | 500-4000 |
| Fin thickness(mm) | 1.0, 1.2, 1.5 |
| Surface treatment | Liquid paint,Powder spray |
