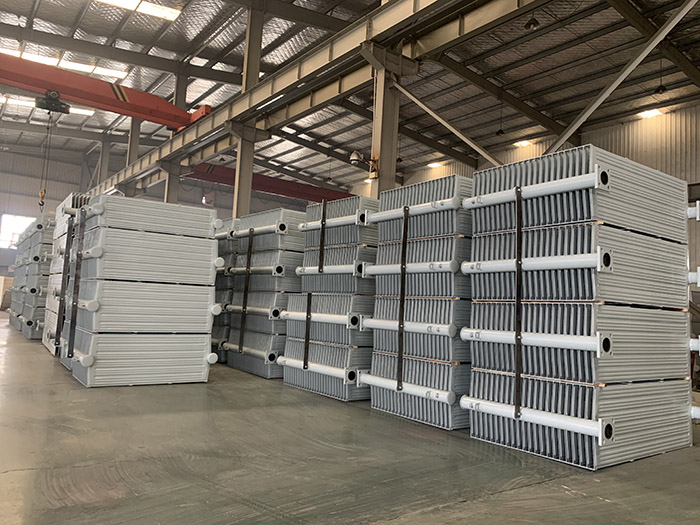

A Beveled Corner Transformer Radiator is a specially designed cooling component used in oil-immersed transformers. Unlike traditional straight radiators, the beveled (chamfered) corner design improves airflow distribution and optimizes space utilization.
This structure helps reduce sharp edges, allowing better heat dissipation and smoother oil circulation within the transformer cooling system.
Applications
Beveled corner transformer radiators are widely used in:
Oil-immersed power transformers
Distribution transformers
(1)The radiator according to the installation divided into:PG stationary and PC detachable.
PG type:stationary,don’t use the flange,direct welding on transformer tank.
PC type:detachable,through the flange fixed to the transformer tank.
(2)The radiator according to the structure can be divided into:
Conventional type:the center is the same,for example PC3200-30/520
Gooseneck type:for example PC2600(2200)-33(2)/520 the center of the film is different,the film is divided into long films and shor films,and the short film are more than two pieces.
Substations and power plants
Industrial power systems
Renewable energy systems (solar & wind)
Material & Custom Options
| P G H – N / 3 1 0 Radiator Parameter Table | ||||||||||
| Number of Fin Sheets | Center Distance (mm) | 400 | 450 | 500 | 625 | 750 | 875 | 1000 | 1250 | 1500 |
| 3 | Weight(Kg) | 10.2 | 10.9 | 11.5 | 14.6 | |||||
| Oil Capacity(Kg) | 2.93 | 4.1 | 5.2 | 5.8 | ||||||
| ONAN Effective Cooling Area (m2) | 0.61 | 0.67 | 0.75 | 0.9 | ||||||
| 4 | Weight(Kg) | 13.7 | 13.8 | 14.5 | 18.3 | 21.5 | ||||
| Oil Capacity(Kg) | 3.7 | 5.4 | 6.4 | 7.1 | 7.9 | |||||
| ONAN Effective Cooling Area (m2) | 0.76 | 0.84 | 0.96 | 1.13 | 1.34 | |||||
| 5 | Weight(Kg) | 17.2 | 18.7 | 17.8 | 22.1 | 25.8 | 29.5 | 32.7 | 37.2 | 44.5 |
| Oil Capacity(Kg) | 4.46 | 6.7 | 7.6 | 8.3 | 9.9 | 9.4 | 10.6 | 13.2 | 15.9 | |
| ONAN Effective Cooling Area (m2) | 0.92 | 1.02 | 1.16 | 1.36 | 1.61 | 1.85 | 2.10 | 2.63 | 3.16 | |
| 6 | Weight(Kg) | 19.6 | 20.7 | 25.9 | 30.2 | 34.8 | 38.4 | 44.3 | 53.5 | |
| Oil Capacity(Kg) | 6.1 | 8.7 | 10.1 | 11.9 | 11.1 | 12.6 | 15.7 | 18.9 | ||
| ONAN Effective Cooling Area (m2) | 1.17 | 1.35 | 1.57 | 1.88 | 2.15 | 2.44 | 3.05 | 3.66 | ||
| 7 | Weight(Kg) | 22.4 | 23.8 | 29.7 | 34.8 | 40.1 | 44.1 | 51.4 | 62.5 | |
| Oil Capacity(Kg) | 9.4 | 9.9 | 11.9 | 13.8 | 12.8 | 14.6 | 18.2 | 21.9 | ||
| ONAN Effective Cooling Area (m2) | 1.33 | 1.63 | 1.78 | 2.1 | 2.43 | 2.76 | 3.47 | 4.16 | ||
| 8 | Weight(Kg) | 25.3 | 26.9 | 33.6 | 39 | 45.6 | 49.6 | 58.4 | 71 | |
| Oil Capacity(Kg) | 10.8 | 11 | 13.6 | 15.8 | 14.5 | 16.6 | 20.7 | 24.8 | ||
| ONAN Effective Cooling Area (m2) | 1.49 | 1.71 | 2 | 2.36 | 2.73 | 3.09 | 3.89 | 4.68 | ||
| 9 | Weight(Kg) | 28.2 | 30 | 37.4 | 43.4 | 51.2 | 55.6 | 65.5 | 79.5 | |
| Oil Capacity(Kg) | 12.1 | 13.2 | 15.4 | 17.7 | 16.2 | 18.5 | 23.1 | 27.7 | ||
| ONAN Effective Cooling Area (m2) | 1.65 | 1.89 | 2.21 | 2.61 | 3.02 | 3.42 | 4.32 | 5.19 | ||
| 10 | Weight(Kg) | 31 | 33.1 | 41.2 | 47.8 | 56.4 | 61.2 | 72.7 | 98 | |
| Oil Capacity(Kg) | 13.4 | 14.3 | 17.1 | 19.7 | 17.9 | 20.5 | 25.6 | 30.6 | ||
| ONAN Effective Cooling Area (m2) | 1.81 | 2.08 | 2.44 | 2.89 | 3.33 | 3.78 | 4.73 | 5.67 | ||
| 11 | Weight(Kg) | 33.8 | 36.2 | 44.9 | 52.5 | 61.5 | 66.9 | 79.8 | 96.5 | |
| Oil Capacity(Kg) | 14.7 | 15.5 | 18.8 | 21.7 | 19.6 | 22.5 | 28.1 | 33.6 | ||
| ONAN Effective Cooling Area (m2) | 1.99 | 2.26 | 2.67 | 3.16 | 3.65 | 4.16 | 5.51 | 6.18 | ||
| 12 | Weight(Kg) | 36.6 | 39 | 48.7 | 56.6 | 66.7 | 72.6 | 86.9 | 104.5 | |
| Oil Capacity(Kg) | 16 | 16.7 | 20.5 | 23.6 | 21.4 | 24.4 | 30.6 | 36.7 | ||
| ONAN Effective Cooling Area (m2) | 2.17 | 2.44 | 2.9 | 3.43 | 3.97 | 4.5 | 5.56 | 6.66 | ||
| 13 | Weight(Kg) | 39.4 | 42.4 | 52.5 | 61 | 71.9 | 78.3 | 94.1 | 113 | |
| Oil Capacity(Kg) | 17.3 | 17.9 | 22.2 | 25.6 | 23.7 | 26.4 | 33.1 | 39.6 | ||
| ONAN Effective Cooling Area (m2) | 2.33 | 2.62 | 3.12 | 3.69 | 4.26 | 4.84 | 5.98 | 7.16 | ||
| 14 | Weight(Kg) | 42.2 | 45.5 | 56.4 | 85.4 | 77.1 | 84 | 101.1 | 121.5 | |
| Oil Capacity(Kg) | 18.7 | 19 | 23.9 | 27.5 | 24.8 | 28.4 | 35.5 | 42.6 | ||
| ONAN Effective Cooling Area (m2) | 2.49 | 2.8 | 3.33 | 3.94 | 4.56 | 5.17 | 6.39 | 7.85 | ||
| 15 | Weight(Kg) | 69 | 82.3 | 89.7 | 108.2 | 130 | ||||
| Oil Capacity(Kg) | 26.5 | 30.3 | 38 | 45.7 | ||||||
| ONAN Effective Cooling Area (m2) | 4.84 | 5.49 | 6.81 | 8.16 | ||||||
| 16 | Weight(Kg) | 88 | 95.4 | 115.3 | 138.5 | |||||
| Oil Capacity(Kg) | 28.2 | 32.3 | 40.5 | 48.6 | ||||||
| ONAN Effective Cooling Area (m2) | 5.13 | 5.82 | 7.22 | 8.65 | ||||||
| 17 | Weight(Kg) | 92.8 | 101.1 | 122.5 | 147 | |||||
| Oil Capacity(Kg) | 30 | 34.3 | 43 | 51.6 | ||||||
| ONAN Effective Cooling Area (m2) | 5.44 | 6.17 | 7.63 | 9.13 | ||||||
| 18 | Weight(Kg) | 98 | 106.8 | 129.5 | 155.5 | |||||
| Oil Capacity(Kg) | 31.6 | 36.2 | 46.5 | 54.6 | ||||||
| ONAN Effective Cooling Area (m2) | 5.75 | 6.52 | 8.04 | 9.02 | ||||||
| P C H – N / 3 1 0 Radiator Parameter Table | ||||||||||
| Number of Fin Sheets | Center Distance (mm) | 1000 | 1250 | 1500 | 1750 | 2000 | 2250 | 2500 | 2750 | 3000 |
| 6 | Weight(Kg) | 44.1 | 52.3 | 60.5 | 88.4 | 76.7 | 85 | 93.1 | ||
| Oil Capacity(Kg) | 32.6 | 15.7 | 18.9 | 21.9 | 24.9 | 28.1 | 31.3 | |||
| ONAN Effective Cooling Area (m2) | 2.44 | 3.05 | 3.67 | 4.27 | 4.88 | 5.49 | 6.1 | |||
| ONAF Effective Cooling Area (m²) | 4.86 | 5.55 | 8.24 | 6.93 | ||||||
| 7 | Weight(Kg) | 49.8 | 59.2 | 68.7 | 78 | 87.5 | 96.9 | 106.3 | ||
| Oil Capacity(Kg) | 14.6 | 18.2 | 21.8 | 25.5 | 28.9 | 32.5 | 36.3 | |||
| ONAN Effective Cooling Area (m2) | 2.78 | 3.47 | 4.17 | 4.85 | 5.54 | 6.23 | 6.92 | |||
| ONAF Effective Cooling Area (m²) | 5.56 | 8.35 | 7.14 | 7.93 | ||||||
| 8 | Weight(Kg) | 55.6 | 66.3 | 76.9 | 97.5 | 98.2 | 108.8 | 119.5 | ||
| Oil Capacity(Kg) | 16.8 | 20.7 | 24 | 28.9 | 33 | 37.2 | 41.3 | |||
| ONAN Effective Cooling Area (m2) | 3.12 | 3.89 | 4.67 | 5.43 | 6.2 | 6.97 | 7.74 | |||
| ONAF Effective Cooling Area (m²) | 6.26 | 7.15 | 8.04 | 8.93 | ||||||
| 9 | Weight(Kg) | 61.3 | 73.2 | 85.1 | 97.1 | 108.9 | 120.9 | 132.7 | 144.6 | 156.5 |
| Oil Capacity(Kg) | 18.5 | 23.1 | 27.6 | 32.4 | 37 | 41.5 | 46.3 | 50.8 | 55.3 | |
| ONAN Effective Cooling Area (m2) | 3.45 | 4.32 | 5.18 | 6.06 | 6.93 | 7.8 | 8.67 | 9.54 | 9.9 | |
| ONAF Effective Cooling Area (m²) | 6.96 | 7.95 | 8.94 | 9.94 | 10.92 | 11.81 | ||||
| 10 | Weight(Kg) | 67.1 | 80.3 | 93.4 | 106.5 | 119.7 | 132.8 | 146 | 159.1 | 172.3 |
| Oil Capacity(Kg) | 20.5 | 25.8 | 30.6 | 36.8 | 41 | 46.2 | 51.3 | 56.5 | 81.7 | |
| ONAN Effective Cooling Area (m2) | 3.79 | 4.73 | 5.66 | 6.62 | 7.55 | 8.49 | 9.43 | 10.37 | 10.94 | |
| ONAF Effective Cooling Area (m²) | 7.66 | 8.75 | 9.84 | 10.93 | 12.02 | 12.86 | ||||
| 11 | Weight(Kg) | 72.8 | 87.2 | 101.6 | 116 | 130.4 | 144.8 | 159.3 | 173.7 | 188.1 |
| Oil Capacity(Kg) | 22.4 | 28.1 | 33.6 | 39.5 | 46.1 | 50.6 | 56.4 | 61.9 | 68.1 | |
| ONAN Effective Cooling Area (m2) | 4.12 | 6.15 | 7.16 | 7.21 | 8.25 | 9.27 | 10.3 | 11.33 | 11.98 | |
| ONAF Effective Cooling Area (m²) | 9.36 | 9.56 | 10.74 | 11.93 | 13.12 | 14.11 | ||||
| 12 | Weight(Kg) | 78.5 | 94.2 | 109.9 | 125.5 | 141.2 | 156.7 | 172.5 | 188.2 | 203.9 |
| Oil Capacity(Kg) | 24.4 | 30.6 | 36.6 | 43 | 49.1 | 55.2 | 61.4 | 67.5 | 74.5 | |
| ONAN Effective Cooling Area (m2) | 4.46 | 5.56 | 6.66 | 7.76 | 8.86 | 9.96 | 11.06 | 12.16 | 13.02 | |
| ONAF Effective Cooling Area (m²) | 9.06 | 10.36 | 11.64 | 12.94 | 14.22 | 15.36 | ||||
| 13 | Weight(Kg) | 84.3 | 101.2 | 118.1 | 135 | 152 | 168.9 | 185.8 | 202.7 | 219.6 |
| Oil Capacity(Kg) | 28.4 | 33.1 | 39.6 | 46.5 | 53.1 | 59.7 | 66.5 | 23 | 80.9 | |
| ONAN Effective Cooling Area (m2) | 4.8 | 5.98 | 7.16 | 9.34 | 9.52 | 10.7 | 11.88 | 13.06 | 13.99 | |
| ONAF Effective Cooling Area (m²) | 9.76 | 11.15 | 12.54 | 13.93 | 15.32 | 16.53 | ||||
| 14 | Weight(Kg) | 90 | 108.2 | 126.4 | 144.6 | 162.7 | 180.8 | 199.1 | 217.2 | 236.4 |
| Oil Capacity(Kg) | 28.4 | 35.5 | 42.6 | 50.5 | 57.2 | 64.2 | 71.4 | 78.6 | 87.3 | |
| ONAN Effective Cooling Area (m2) | 5.13 | 6.39 | 7.65 | 8.91 | 10.17 | 11.43 | 12.69 | 13.95 | 14.95 | |
| ONAF Effective Cooling Area (m²) | 10.46 | 11.95 | 13.44 | 14.93 | 16.42 | 17.88 | ||||
| 15 | Weight(Kg) | 95.8 | 115.2 | 134.5 | 154.1 | 173.5 | 192.9 | 212.3 | 231.7 | 251.2 |
| Oil Capacity(Kg) | 30.3 | 38 | 45.6 | 53.5 | 61.2 | 68.8 | 76.5 | 84.2 | 93.7 | |
| ONAN Effective Cooling Area (m2) | 5.46 | 6.81 | 8.15 | 9.51 | 10.86 | 12.21 | 13.56 | 14.91 | 15 | |
| ONAF Effective Cooling Area (m²) | 11.17 | 12.76 | 14.36 | 16.96 | 17.56 | 18.92 | ||||
| 16 | Weight(Kg) | 101.5 | 122.1 | 142.9 | 163.5 | 184.2 | 204.9 | 225.6 | 246.2 | 266.9 |
| Oil Capacity(Kg) | 32.2 | 40.5 | 48.7 | 57 | 65.2 | 73.3 | 81.5 | 99.7 | 100.1 | |
| ONAN Effective Cooling Area (m2) | 5.79 | 7.22 | 8.65 | 10.08 | 11.51 | 12.94 | 14.37 | 15.8 | 16.84 | |
| ONAF Effective Cooling Area (m²) | 11.94 | 13.51 | 15.2 | 16.88 | 18.56 | 19.95 | ||||
| 17 | Weight(Kg) | 107.2 | 129.2 | 151.1 | 173.1 | 195 | 221.3 | 239.8 | 260.8 | 282.7 |
| Oil Capacity(Kg) | 34.3 | 43 | 51.6 | 60.5 | 69.2 | 77.9 | 96.5 | 95.2 | 106.5 | |
| ONAN Effective Cooling Area (m2) | 6.13 | 7.63 | 9.13 | 10.63 | 12.13 | 13.63 | 15.13 | 16.63 | 17.86 | |
| ONAF Effective Cooling Area (m²) | 12.53 | 14.29 | 16.06 | 17.83 | 19.6 | 21.18 | ||||
| 18 | Weight(Kg) | 113.7 | 136.1 | 159.4 | 182.5 | 205.7 | 228.9 | 252 | 275.3 | 298.5 |
| Oil Capacity(Kg) | 36.2 | 45.5 | 54.4 | 84 | 73.2 | 82.3 | 91.6 | 100.9 | 112.9 | |
| ONAN Effective Cooling Area (m2) | 6.46 | 8.04 | 9.62 | 11.2 | 12.78 | 14.36 | 15.94 | 17.52 | 18.88 | |
| ONAF Effective Cooling Area (m²) | 13.21 | 16 | 16.97 | 18.85 | 20.73 | 22.4 | ||||
| 19 | Weight(Kg) | 118.7 | 143.1 | 167.8 | 192 | 216.5 | 240.9 | 265.4 | 289.8 | 314.3 |
| Oil Capacity(Kg) | 38.2 | 47.9 | 57.6 | 67.5 | 77.1 | 87 | 96.5 | 106.6 | 119.3 | |
| ONAN Effective Cooling Area (m2) | 6.79 | 8.45 | 10.11 | 11.77 | 13.43 | 15.09 | 16.75 | 18.41 | 19.3 | |
| ONAF Effective Cooling Area (m²) | 13.89 | 15.86 | 17.83 | 19.8 | 21.77 | 23.51 | ||||
| 20 | Weight(Kg) | 124.5 | 150.1 | 175.9 | 201.5 | 227.2 | 252.9 | 278.6 | 304.3 | 330 |
| Oil Capacity(Kg) | 40.2 | 50.4 | 60.6 | 70.9 | 81.1 | 91.5 | 101.6 | 111.8 | 125.7 | |
| ONAN Effective Cooling Area (m2) | 7.12 | 8.86 | 10.6 | 12.34 | 14.08 | 15.82 | 17.56 | 19.3 | 20.71 | |
| ONAF Effective Cooling Area (m²) | 14.58 | 16.66 | 18.74 | 20.82 | 22.9 | 24.6 | ||||
| 21 | Weight(Kg) | 130.2 | 157.2 | 184.1 | 211 | 238 | 265 | 291.6 | 318.8 | 345.8 |
| Oil Capacity(Kg) | 42.1 | 52.9 | 63.7 | 174.5 | 85.1 | 96 | 106.6 | 117.5 | 132.1 | |
| ONAN Effective Cooling Area (m2) | 7.44 | 9.25 | 11.06 | 12.86 | 14.68 | 16.5 | 18.3 | 20.11 | 21.61 | |
| ONAF Effective Cooling Area (m²) | 15.22 | 17.37 | 19.53 | 21.67 | 23.82 | 25.68 | ||||
| 22 | Weight(Kg) | 135.9 | 164.1 | 192.3 | 220.6 | 248.8 | 276.8 | 305.2 | 333.3 | 361.8 |
| Oil Capacity(Kg) | 44.1 | 55.3 | 66.6 | 78 | 89.1 | 100.5 | 111.8 | 123 | 138.5 | |
| ONAN Effective Cooling Area (m2) | 7.77 | 9.66 | 11.62 | 13.41 | 15.29 | 17.17 | 19.05 | 20.93 | 22.5 | |
| ONAF Effective Cooling Area (m²) | 15.87 | 18.11 | 20.35 | 22.69 | 24.83 | 26.75 | ||||
| 23 | Weight(Kg) | 141.6 | 171.1 | 200.6 | 230.1 | 259.5 | 289 | 319.4 | 347.9 | 377.3 |
| Oil Capacity(Kg) | 46.1 | 57.9 | 69.6 | 81.5 | 93.1 | 105 | 116.7 | 128.5 | 144.9 | |
| ONAN Effective Cooling Area (m2) | 8.09 | 10.03 | 11.98 | 13.94 | 15.89 | 17.85 | 19.79 | 21.74 | 23.37 | |
| ONAF Effective Cooling Area (m²) | 16.51 | 18.82 | 21.14 | 23.44 | 25.75 | 27.8 | ||||
| 24 | Weight(Kg) | 147.3 | 178.2 | 208.8 | 239.6 | 270.3 | 300.9 | 331.7 | 362.4 | 393.1 |
| Oil Capacity(Kg) | 48.1 | 48.2 | 72.6 | 85 | 97.2 | 109.6 | 121.8 | 134.1 | 151.3 | |
| ONAN Effective Cooling Area (m2) | 8.41 | 10.44 | 12.47 | 14.5 | 16.53 | 18.56 | 20.69 | 22.62 | 24.24 | |
| ONAF Effective Cooling Area (m²) | 17.16 | 19.56 | 21.96 | 24.36 | 26.76 | 28.84 | ||||
| 25 | Weight(Kg) | 153 | 185.3 | 217.1 | 249 | 281 | 313 | 345 | 376.9 | 408.9 |
| Oil Capacity(Kg) | 50 | 62.7 | 75.5 | 88.5 | 101.2 | 114.2 | 126.8 | 139.6 | 157.8 | |
| ONAN Effective Cooling Area (m2) | 8.73 | 10.84 | 12.93 | 15.03 | 17.13 | 19.23 | 21.33 | 23.43 | 25.1 | |
| ONAF Effective Cooling Area (m²) | 17.8 | 20.27 | 22.74 | 26.21 | 27.6 | 29.87 | ||||
| 26 | Weight(Kg) | 158.7 | 192.4 | 225.3 | 258.6 | 291.8 | 325 | 358.2 | 391.4 | 424.7 |
| Oil Capacity(Kg) | 52 | 65.2 | 78.6 | 92 | 105.1 | 118.7 | 131.8 | 145.2 | 164.2 | |
| ONAN Effective Cooling Area (m2) | 9.04 | 11.21 | 13.38 | 15.55 | 17.72 | 19.89 | 22.06 | 24.23 | 25.94 | |
| ONAF Effective Cooling Area (m²) | 18.42 | 20.97 | 23.52 | 26.07 | 28.62 | 30.89 | ||||
| 27 | Weight(Kg) | 164.4 | 199.5 | 233.6 | 268.1 | 302.5 | 337 | 371.5 | 406 | 440.4 |
| Oil Capacity(Kg) | 54 | 67.7 | 81.6 | 95.5 | 109.2 | 123.3 | 137 | 150.7 | 170.7 | |
| ONAN Effective Cooling Area (m2) | 9.36 | 11.58 | 13.82 | 16.05 | 18.28 | 20.62 | 22.74 | 24.97 | 26.78 | |
| ONAF Effective Cooling Area (m²) | 19.05 | 21.69 | 24.34 | 26.96 | 29.61 | 31.01 | ||||
| 28 | Weight(Kg) | 170.1 | 206.6 | 241.8 | 277.6 | 313.3 | 349 | 3847 | 420.4 | 456.2 |
| Oil Capacity(Kg) | 56 | 70.2 | 84.5 | 99 | 113.2 | 127.8 | 142 | 156.5 | 177.1 | |
| ONAN Effective Cooling Area (m2) | 9.67 | 11.96 | 14.27 | 16.57 | 18.87 | 21.18 | 23.47 | 25.77 | 27.61 | |
| ONAF Effective Cooling Area (m²) | 19.67 | 22.39 | 25.12 | 27.83 | 30.55 | 32.9 | ||||
| 29 | Weight(Kg) | 175.8 | 213.7 | 250.1 | 286.9 | 324 | 361 | 398 | 435 | 472 |
| Oil Capacity(Kg) | 57.9 | 72.7 | 87.6 | 102.5 | 117.2 | 132 | 147.1 | 161.8 | 183.6 | |
| ONAN Effective Cooling Area (m2) | 9.98 | 12.34 | 14.72 | 17.09 | 19.46 | 21.82 | 24.2 | 26.57 | 29.57 | |
| ONAF Effective Cooling Area (m²) | 20.3 | 23.11 | 25.91 | 28.73 | 31.54 | 34.06 | ||||
| 30 | Weight(Kg) | 181.5 | 220.8 | 258.4 | 296.3 | 334.8 | 373.1 | 411.3 | 449.6 | 487.7 |
| Oil Capacity(Kg) | 50 | 75.1 | 90.5 | 106 | 121.3 | 136.8 | 152.1 | 167.6 | 190.1 | |
| ONAN Effective Cooling Area (m2) | 10.29 | 12.72 | 15.17 | 17.81 | 20.05 | 22.5 | 24.93 | 27.37 | 29.38 | |
| ONAF Effective Cooling Area (m²) | 20.92 | 23.81 | 26.71 | 29.69 | 32.4B | 35.02 | ||||
| P C ( G ) H – N / 4 8 0 Radiator Parameter Table | |||||||||||||||||||||||||||
| Number of Fin Sheets | Center Distance (mm) | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 | 2100 | 2200 | 2300 | 2400 | 2500 | 2600 | 2700 | 2800 | 2900 | 3000 |
| 4 | Weight(Kg) | 27.0 | 30.2 | 33.5 | 97.1 | 40.0 | 43 | 46.6 | 50 | 53.5 | |||||||||||||||||
| Oil Capacity(Kg) | 9.2 | 9.8 | 10.5 | 11.1 | 13.0 | 14.2 | 14.8 | 15.4 | 16.2 | ||||||||||||||||||
| ONAN Effective Cooling Area (m2) | 1.31 | 1.56 | 1.51 | 2.06 | 2.28 | 2.54 | 3.0 | 3.1 | 3.43 | ||||||||||||||||||
| ONAF Effective Cooling Area (m²) | |||||||||||||||||||||||||||
| 5 | Weight(Kg) | 31.6 | 35.6 | 39.7 | 43 | 47.7 | 51.7 | 55.8 | 60 | 84.4 | |||||||||||||||||
| Oil Capacity(Kg) | 10.3 | 11 | 12.6 | 14.2 | 16.7 | 17.3 | 18.2 | 19.2 | 20 | ||||||||||||||||||
| ONAN Effective Cooling Area (m2) | 1.69 | 1.91 | 2.22 | 2.51 | 2.78 | 3.1 | 3.41 | 3.77 | 4.13 | ||||||||||||||||||
| ONAF Effective Cooling Area (m²) | |||||||||||||||||||||||||||
| 6 | Weight(Kg) | 38.1 | 40.8 | 45.7 | 50.8 | 66.4 | 80.2 | 66 | 70 | 76.1 | 79.6 | 84.8 | 89.7 | 94.5 | 99.4 | 104.5 | |||||||||||
| Oil Capacity(Kg) | 12.4 | 14.9 | 15.7 | 17.5 | 19.4 | 20.4 | 21.5 | 22.7 | 24 | 25.5 | 26.1 | 27.4 | 28.3 | 29.4 | 29.8 | ||||||||||||
| ONAN Effective Cooling Area (m2) | 1.87 | 2.26 | 2.52 | 2.96 | 3.35 | 3.71 | 4.08 | 4.44 | 4.34 | 6.17 | 6.68 | 6.91 | 6.27 | 6.9 | 7.43 | ||||||||||||
| ONAF Effective Cooling Area (m²) | |||||||||||||||||||||||||||
| 7 | Weight(Kg) | 40 | 46 | 51.7 | 57.6 | 63.1 | 68.8 | 742 | 79.8 | 85.8 | 91.5 | 97.1 | 102.8 | 105.3 | 114 | 119.9 | |||||||||||
| Oil Capacity(Kg) | 14.5 | 17.1 | 19.1 | 21 | 22.6 | 23.5 | 25.1 | 25.5 | 28.6 | 39 | 30.5 | 1.9 | 32.9 | 34.2 | 34.7 | ||||||||||||
| ONAN Effective Cooling Area (m2) | 2.14 | 2.61 | 3.01 | 3.41 | 3.85 | 4.27 | 4.69 | 5.11 | 5.53 | 5.95 | 6.37 | 6.77 | 7.2 | 7.82 | 0.3 | ||||||||||||
| ONAF Effective Cooling Area (m²) | |||||||||||||||||||||||||||
| 8 | Weight(Kg) | 45.2 | 51.5 | 57.7 | 84.5 | 70.7 | 77.2 27.1 | 83.4 | 89.9 30.3 | 98.5 | 103 33.7 | 309.4 | 115.8 | 122.2 | 128 | 135.3 | 141.8 | 147.3 | 154.5 | 160.8 | 167.3 | ||||||
| Oil Capacity(Kg) | 16 | 19.9 | 22.5 | 24.4 | 25.8 | 27.1 | 28.7 | 30.3 | 32.0 | 33.7 | 34.9 | 36.4 | 37.5 | 39 | 39.3 | 41.9 | 42.6 | 44.8 | 46.3 | 46.8 | |||||||
| ONAN Effective Cooling Area (m2) | 2.43 | 2.94 | 3.4 | 3.86 | 4.35 | 4.82 | 5.29 | 5.76 | 6.24 | 5.71 | 7.18 | 7.63 | 8.12 | 8.74 | 9.33 | 9.69 | 10.25 | 10.76 | 11.31 | 11.89 | |||||||
| ONAF Effective Cooling Area (m²) | 11.46 | 12.09 | 13.14 | 13.72 | 14.34 | ||||||||||||||||||||||
| 9 | Weight(Kg) | 9.8 | 58.8 | 63.5 | 71.4 | 78.4 | 85.7 | 92.8 | 90.9 | 107.2 | 114.5 | 121.7 | 128.8 | 136.1 | 143.2 | 150.7 | 157.7 | 164.3 | 172.2 | 179.5 | 166.3 | ||||||
| Oil Capacity(Kg) | 18.7 | 22.4 | 26.9 | 27.9 | 29.6 | 21.1 | 32.3 | 242 | 36 | 7.8 | 39.3 | 40.9 | 42.1 | 43.9 | 44.2 | 47 | 47.7 | 50.3 | 61.5 | 624 | |||||||
| ONAN Effective Cooling Area (m2) | 2.71 | 7.28 | 3.6 | 4.3 | 4.64 | 5.36 | 5.89 | 6.41 | 6.94 | 7.47 | 7.9D | 8.49 | 9.04 | 9.66 | 10.28 | 10.72 | 11.32 | 11.86 | 12.64 | 13.06 | |||||||
| ONAF Effective Cooling Area (m²) | 12.67 | 13.3 | 14.29 | 14.93 | 15.59 | ||||||||||||||||||||||
| 10 | Weight(Kg) | 54.2 | 62.1 | 70 | 78.1 | 88 | 84.2 | 101 | 109.9 | 117.9 | 125.9 | 134 | 141.8 | 149.9 | 157.8 | 166.2 | 179.8 | 181.8 | 189.9 | 197.8 | 200.8 | 213.8 | 221.6 | 229.8 | |||
| Oil Capacity(Kg) | 20.8 | 24.9 | 28.9 | 90.9 | 31.5 | 33.7 | 35.9 | 38 | 40 | 41.9 | 43.7 | 25.4 | 46.9 | 48.9 | 49.1 | 52 | 52.6 | 55.8 | 56.7 | 58 | 59.1 | 51.1 | 62.4 | ||||
| ONAN Effective Cooling Area (m2) | 2.98 | 3.64 | 4.2 | 4.74 | 5.32 | 5.9 | 5.48 | 7.06 | 7.54 | 3.21 | 8.79 | 9.35 | 9.95 | 10.58 | 11.23 | 11.75 | 12.39 | 12.97 | 13.81 | 14.26 | 14.65 | 15.48 | 15.06 | ||||
| ONAF Effective Cooling Area (m²) | 13.87 | 14.57 | 16.44 | 16.14 | 16.89 | 1.7.6G | 15.26 | 16.94 | |||||||||||||||||||
| 11 | Weight(Kg) | 58.1 | 67.4 | 76 | 4.8 | 93.7 | 102.8 | 111 | 1*9.9 | 128.8 | 137.5 | 146.3 | 154.8 | 163.6 | 172.5 | 181.5 | 180.9 | 195.8 | 207.5 | 216.3 | 224.9 | 233.8 | 242.6 | 251.3 | |||
| Oil Capacity(Kg) | 22.9 | 27.4 | 61.9 | 34.1 | 36.1 | 37.9 | 39.5 | 41.7 | 44 | 46.2 | 48 | 49.9 | 51.5 | 53.7 | 54 | 57.2 | 57.7 | 61.3 | 61.8 | 63.6 | 65 | 65.9 | 66.7 | ||||
| ONAN Effective Cooling Area (m2) | 3.25 | 3.96 | 4.6 | 5.19 | 5.5 | 6.43 | 5.95 | 7.68 | 8.32 | 3.96 | 9:59 | 10.21 | 10.85 | 12.5 | 12.18 | 12.78 | 13.45 | 14.07 | 14.75 | 15.44 | 15.S4 | 16.75 | 17.24 | ||||
| ONAF Effective Cooling Area (m²) | 15.07 | 15.85 | 15.63 | 17.39 | 16.29 | 18.86 | 19.69 | 20.35 | |||||||||||||||||||
| 12 | Weight(Kg) | 2.7 | 72.8 | 62.1 | 92 | 101.4 | 111.2 | 120.2 | 129.9 | 139.5 | 149 | 168.G | 167.8 | 177.6 | 187 | 1,869 | 206 | 216.8 | 226.5 | 2348 | 244.3 | 253.9 | 263.4 | 272.8 | 282.3 | 232 | 303.5 |
| Oil Capacity(Kg) | 26 | 29.9 | 34.8 | 37.1 | 39.3 | 40.4 | 43.1 | 46.2 | 45.6 | 5o,3 | 52.4 | 63.8 | 6G.2 | 68.5 | 60.9 | G2.3 | 63 | GG.8 | 67.1 | GD.2 | 70.9 | 72.7 | 74.5 | 78 | Bo.7 | 83.5 | |
| ONAN Effective Cooling Area (m2) | 3.52 | 4.36 | 4.95 | 5.62 | 5.25 | 5.06 | 7.65 | 8.32 | 9.01 | 9.69 | 10.37 | 11.06 | 11.74 | 12.42 | 13.14 | 13.81 | 14.51 | 15.19 | 16.91 | 16.61 | 17.22 | 18.03 | 18.61 | 19.33 | 20.04 | 20.66 | |
| ONAF Effective Cooling Area (m²) | 16.27 | 17.12 | 17.92 | 18.77 | 19.69 | 20.37 | 21.21 | 21.09 | 22.86 | 23.49 | 24.56 | ||||||||||||||||
| 13 | Weight(Kg) | 98.7 | 105.8 | 119.7 | 129.4 | 139.9 | 150.2 | 160.4 | 170.8 | 180 | 191.4 | 201.6 | 212.3 | 222.1 | 232.7 | 243 | 253.3 | 263.5 | 273.8 | 284.2 | 294.5 | 304.7 | 314.9 | 325.5 | |||
| Oil Capacity(Kg) | 40.2 | 42.8 | 44.8 | 46.7 | 49.8 | 52 | 59.8 | 56.8 | 68.3 | 60.9 | 83.4 | 63.8 | 83.5 | 58.3 | 72.3 | 72.7 | 74.8 | 76.9 | 78.8 | 81.3 | 84.4 | 87.4 | Go.4 | ||||
| ONAN Effective Cooling Area (m2) | 6.05 | 6.7B | 7.48 | 8.21 | 8.96 | 9.68 | 10.43 | 11.16 | 11.88 | 12.62 | 13.35 | 14.09 | 14 | 15.57 | 16.31 | 17.06 | 17.78 | 18.49 | 19.3 | 19.07 | 20.74 | 21.49 | 22.18 | ||||
| ONAF Effective Cooling Area (m²) | 17.48 | 18.29 | 19.26 | 20.15 | 21.08 | 21.71 | 22.76 | 23.62 | 24.53 | 25.3 | 26.33 | ||||||||||||||||
| 14 | Weight(Kg) | 105 | 116.5 | 128.2 | 138.6 | 149.9 | 160.9 | 171.5 | 583.2 | 193.8 | 204.2 | 216.3 | 227.7 | 238.2 | 249.6 | 260.7 | 271.8 | 282.8 | 293.8 | 905 | 315.9 | 326.9 | 338 | 349.3 | |||
| Oil Capacity(Kg) | 47.2 | 45.8 | 48.2 | 50.3 | 53.1 | 56 | 57.9 | 61.2 | 62.8 | 65.6 | 63.3 | 68.7 | 72.7 | 79.6 | 77.9 | 78.3 | 80.7 | 32.8 | 84.8 | 87.5 | 90.9 | 94.1 | 97.3 | ||||
| ONAN Effective Cooling Area (m2) | 5.48 | 7.28 | 8.02 | 8.78 | 9.55 | 10.35 | 11.13 | 11.92 | 12.7 | 13.49 | 14.27 | 15.05 | 15.84 | 16.63 | 17.41 | 18.21 | 18.93 | 19.75 | 20.57 | 21.33 | 22.14 | 22.84 | 23.69 | ||||
| ONAF Effective Cooling Area (m²) | 14.01 | 14.96 | 19.96 | 16.83 | 17.76 | 18.69 | 19.65 | 20.66 | 21.62 | 22.48 | 23.56 | 24.31 | 25.24 | 26.2 | 27.05 | 28.1 | |||||||||||
| 15 | Weight(Kg) | 112.5 | 124.2 | 136.7 | 147.8 | 159.9 | 171.5 | 863.3 | 199.5 | 206.8 | 219.2 | 230.8 | 242.9 | 254.3 | 266.8 | 275.4 | 290.3 | 301.9 | 313.8 | 325.8 | 337.6 | 349.5 | 361.2 | 373.2 | |||
| Oil Capacity(Kg) | 61.2 | 49 | 51.7 | 53.8 | 56.9 | 60 | 62 | 65.6 | 68 | 70.3 | 73.1 | 70.6 | 77.8 | 78.8 | 85.5 | 83.9 | 86.5 | 88.7 | 90.9 | 93.9 | 97.4 | 100.8 | 104.2 | ||||
| ONAN Effective Cooling Area (m2) | 5.94 | 7.78 | 8.57 | 9.36 | 10.38 | 11.01 | 11.55 | 12.54 | 13.51 | 14.34 | 15.18 | 16 | 16.85 | 17.68 | 18.51 | 19.35 | 20.16 | 21.01 | 21.65 | 22.68 | 23.53 | 24.57 | 25.19 | ||||
| ONAF Effective Cooling Area (m²) | 14.93 | 15.93 | 16.32 | 17.91 | 10.94 | 19.9 | 20.9 | 21.89 | 22.8 | 23.88 | 24.86 | 25.87 | 26.86 | 27.87 | 28.84 | 29.87 | |||||||||||
| 16 | Weight(Kg) | 119.3 | 131.8 | 146.2 | 157 | 169.9 | 182.5 | 196.3 | 207.8 | 219.8 | 232.9 | 245.4 | 268.5 | 270.4 | 283.7 | 206.1 | 308.8 | 321 | 333.8 | 346.6 | 358.8 | 271.6 | 384.4 | 396.9 | |||
| Oil Capacity(Kg) | 54 | 52.2 | 55.2 | 52.5 | B0.7 | 64 | 66.2 | 69.9 | 71.9 | 74.9 | 78 | 78.6 | 3 | 64 | 9 | 89.5 | 92.3 | 94.6 | 97 | 100.2 | 103.6 | 107.5 | 111.2 | ||||
| ONAN Effective Cooling Area (m2) | 7.44 | 8.26 | 9.12 | 9.99 | 10.78 | 11.69 | 12.54 | 23.43 | t4,38 | 15.19 | 16.08 | 16.9 | 17.0d | 18.73 | 19.61 | 20.49 | 21.37 | 22.26 | 23.13 | 24.02 | 24.91 | 26.7 | 26.67 | ||||
| ONAF Effective Cooling Area (m²) | 16.83 | 16.88 | 17.94 | 18.99 | 20.04 | 31.1 | 22.15 | 23.21 | 24.26 | 25.32 | 26.37 | 27.42 | 26.67 | 29.53 | 30.5 | 31.64 | |||||||||||
| 17 | Weight(Kg) | 139.4 | 153.7 | 166.2 | 179.9 | 193.3 | 205.7 | 220.1 | 202.8 | 246.8 | 260 | 273.9 | 286.5 | 300.6 | 313.8 | 327.3 | 340.4 | 353.9 | 367.4 | 380.6 | 193.8 | 407.7 | 423 | ||||
| Oil Capacity(Kg) | 55.4 | 58.7 | 51 | 64.5 | 66 | 70.3 | 743 | 70.4 | 78.7 | 62.2 | 83.6 | 0.2 | 59.3 | 94.6 | 85.1 | 98 | 100.5 | 103 | 106.5 | 110.2 | 114.1 | 116 | |||||
| ONAN Effective Cooling Area (m2) | 5.75 | 9.67 | 10.56 | 11.45 | 12.25 | 13.25 | 14.17 | 5.1 | 16.03 | 16.96 | 17.9 | 18.83 | 19.76 | 20.09 | 21.82 | 22.55 | 23.49 | 24.42 | 25.35 | 26.28 | 27.21 | 28.15 | |||||
| ONAF Effective Cooling Area (m²) | 1672 | 17.83 | 18.94 | 20.05 | 21.17 | 20.28 | 23.39 | 2451 | 25.82 | 26.73 | 27.84 | 20.06 | 30.07 | 31.18 | 32.3 | 33.41 | |||||||||||
| 18 | Weight(Kg) | 147.2 | 161.2 | 175.4 | 189.9 | 203.5 | 217.7 | 232.3 | 246.3 | 260.3 | 274.3 | 288.6 | 302.7 | 317 | 331.2 | 345.3 | 359.5 | 373.6 | 388 | 402.2 | 416.2 | 430.4 | 444.3 | ||||
| Oil Capacity(Kg) | 58.6 | 62.2 | 64.7 | 68.3 | 72 | 74.5 | 78.6 | 80.9 | 84.4 | 87 | 88.4 | 93.4 | 94.5 | 99.6 | 100.7 | 103.8 | 106.5 | 109.1 | 112.8 | 116.6 | 120.8 | 125 | |||||
| ONAN Effective Cooling Area (m2) | 9.28 | 10.22 | 11.16 | 12.08 | 13.02 | 13.96 | 14.9 | 15 | 16.89 | 17.84 | 18.82 | 19.8 | 20.78 | 21.76 | 22.74 | 23.72 | 24.7 | 25.68 | 26.66 | 27.64 | 28.62 | 29.63 | |||||
| ONAF Effective Cooling Area (m²) | 17.69 | 18.74 | 19.94 | 21.11 | 22.28 | 23.46 | 24.62 | 25.79 | 26.96 | 28.13 | 29.3 | 30.48 | 31.65 | 32.82 | 33.99 | 33.16 | |||||||||||
| 19 | Weight(Kg) | 170.7 | 184.6 | 199.9 | 214.2 | 229.2 | 244.7 | 2,695 | 274.2 | 288.9 | 304 | 319 | 333.8 | 348.9 | 363.8 | 378.6 | 393.6 | 408.6 | 423.8 | 438.6 | 453.5 | 468.3 | |||||
| Oil Capacity(Kg) | 65.7 | 68.3 | 72 | 76 | 78.6 | 83 | 85.4 | 89 | 91.8 | 93.3 | 98.5 | 93.8 | 105.1 | 106.3 | 109.6 | 112.4 | 115.2 | 119.1 | 123 | 127.4 | 131.8 | ||||||
| ONAN Effective Cooling Area (m2) | 10.77 | 11.76 | 12.73 | 13.92 | 14.71 | 15.7 | 16.72 | 17.7 | 18.71 | 19.74 | 20.77 | 21.79 | 22.87 | 23.85 | 24.6 | 25.9 | 26.98 | 27.96 | 28.99 | 30.01 | 31.04 | ||||||
| ONAF Effective Cooling Area (m²) | 18.46 | 19.67 | 20.92 | 22.16 | 23.37 | 24.6 | 26.83 | 27.06 | 28.29 | 29.52 | 30.75 | 31.98 | 33.21 | 34.43 | 35.66 | 36.89 | |||||||||||
| 20 | Weight(Kg) | 179.2 | 193.8 | 203.9 | 225 | 240.7 | 256.5 | 272.5 | 288.2 | 303.5 | 319.4 | 335 | 350 | 366.6 | 382.1 | 398 | 413.6 | 429.4 | 445.4 | 460.8 | 476.5 | 492.2 | |||||
| Oil Capacity(Kg) | 69.2 | 71.9 | 75.8 | 80 | 62.7 | 87.4 | 89.9 | 93.7 | 96.7 | 98.2 | 103.7 | 105 | 110.7 | 111.9 | 115.4 | 118.3 | 121.3 | 125.4 | 129.5 | 132 | 138.8 | ||||||
| ONAN Effective Cooling Area (m2) | 11.32 | 12.36 | 13.38 | 14.42 | 15.46 | 16.5 | 17.54 | 18.6G | 19.63 | 20.67 | 21.72 | 22.79 | 23.87 | 24.94 | 26.02 | 27.09 | 28.18 | 29.24 | 30.43 | 31.39 | 32.46 | ||||||
| ONAF Effective Cooling Area (m²) | 19.32 | 20.58 | 21.89 | 23.17 | 2,446 | 25.74 | 27.03 | 28.32 | 29.6 | 30.89 | 32.17 | 33.5 | 34.75 | 36.03 | 37.32 | 38.6 | |||||||||||
| 21 | Weight(Kg) | 219.9 | 236 | 252.2 | 268.9 | 285.5 | 301.8 | 318.1 | 335.2 | 351.2 | 367.7 | 384.3 | 400.7 | 417.3 | 433.7 | 450.2 | 465.9 | 483.2 | 499.7 | 516.1 | |||||||
| Oil Capacity(Kg) | 79.6 | 84 | 86.9 | 91.8 | 94.4 | 98.4 | 101.5 | 103.1 | 108.8 | 110.4 | 116.2 | 117.5 | 121 | 124.2 | 127.3 | 131.6 | 135.9 | 138.9 | 146.6 | ||||||||
| ONAN Effective Cooling Area (m2) | 14.03 | 15.12 | 16.2 | 17.3 | 18.38 | 19.5 | 20.59 | 21.66 | 22.77 | 23.87 | 24.95 | 26 | 27.14 | 28.26 | 29.38 | 30.56 | 31.63 | 32.75 | 33.87 | ||||||||
| ONAF Effective Cooling Area (m²) | 20.16 | 2148 | 22.85 | 24.19 | 25.53 | 26.87 | 28.21 | 29.56 | 30.9 | 32.24 | 33.58 | 34.93 | 36.27 | 37.61 | 38.95 | 40.29 | |||||||||||
| 22 | Weight(Kg) | 229.9 | 246.5 | 263.B | 281.3 | 298.6 | 315.8 | 332.8 | 350.2 | 367.4 | 384.9 | 402 | 419.3 | 436.5 | 453.7 | 471 | 488.5 | 505.6 | 522.7 | 540 | |||||||
| Oil Capacity(Kg) | 83.5 | 88 | 92.6 | 96.2 | 98.9 | 103 | 106.4 | 108 | 114 | 115.6 | 121.9 | 123 | 126.8 | 130.1 | 133.4 | 137.9 | 142.4 | 145.8 | 152.6 | ||||||||
| ONAN Effective Cooling Area (m2) | 14.68 | 15.82 | 16.96 | 18.1 | 19.24 | 20.38 | 21.54 | 22.66 | 23.62 | 24.97 | 26.1 | 27.23 | 28.38 | 30.57 | 30.66 | 30.8 | 30.92 | 34.09 | 35.26 | ||||||||
| ONAF Effective Cooling Area (m²) | 21 | 22.37 | 23.79 | 25.19 | 26.69 | 27.99 | 29.38 | 30.78 | 32.18 | 33.58 | 36.35 | 36.37 | 37.77 | 39.17 | 40.57 | 41.91 | |||||||||||
| 23 | Weight(Kg) | 293.2 | 311.7 | 311.7 | 347.3 | 265.5 | 383.5 | 401.9 | 419.7 | 437.7 | 455.8 | 473.7 | 491.7 | 510 | 527.8 | 546 | 564 | ||||||||||
| Oil Capacity(Kg) | 100.5 | 103.4 | 107.8 | 111.2 | 112.9 | 119.2 | 120.8 | 127.5 | 128.7 | 132.6 | 136 | 139.5 | 144.1 | 148.8 | 152.7 | 159.4 | |||||||||||
| ONAN Effective Cooling Area (m2) | 18.9 | 20.09 | 20.09 | 22.5 | 23.66 | 24.87 | 25.72 | 27.25 | 28.64 | 29.63 | 3,082 | 32.01 | 33.2 | 34.37 | 35.58 | 36.76 | |||||||||||
| ONAF Effective Cooling Area (m²) | 21.82 | 23.26 | 24.73 | 26.18 | 27.63 | 29.09 | 30.54 | 31.99 | 33.95 | 34.9 | 36.35 | 37.8 | 39.26 | 40.71 | 42.16 | 43.61 | |||||||||||
| 24 | Weight(Kg) | 305.6 | 324.8 | 343.5 | 362 | 380.8 | 399.7 | 418.9 | 437.4 | 456.2 | 475 | 493.7 | 512.5 | 531.7 | 550.2 | 569 | 587.8 | ||||||||||
| Oil Capacity(Kg) | 104.9 | 109 | 112.5 | 116 | 117.9 | 124.4 | 126.2 | 132.5 | 134.2 | 138.4 | 141.9 | 145.6 | 160.4 | 156.3 | 159.6 | 166.4 | |||||||||||
| ONAN Effective Cooling Area (m2) | 19.7 | 20.94 | 22.18 | 23.46 | 24.68 | 25.92 | 27.17 | 28.4 | 2,963 | 3,088 | 3,212 | 33.38 | 34.6 | 35.82 | 口7.o | 38.21 | |||||||||||
| ONAF Effective Cooling Area (m²) | 22.64 | 24.13 | 26.65 | 27.16 | 2,867 | 30.17 | 31.68 | 33.19 | 34.7 | 36.2 | 37.71 | 3,922 | 40.72 | 42.23 | 43.74 | 45.24 | |||||||||||
| 25 | Weight(Kg) | 318 | 338 | 357.4 | 376.8 | 396.2 | 416 | 435.4 | 455 | 474.6 | 494.3 | 513.8 | 533.3 | 553.2 | 572.5 | 592.2 | 611.7 | ||||||||||
| Oil Capacity(Kg) | 109.3 | 113.6 | 117.1 | 120.9 | 122.8 | 129.6 | 131.4 | 138.6 | 139.8 | 144.1 | 147.8 | 151.6 | 156.6 | 161.7 | 166.5 | 173.2 | |||||||||||
| ONAN Effective Cooling Area (m2) | 20.5 | 21.78 | 23.8 | 24.4 | 25.66 | 26.31 | 28.27 | 29.55 | 30.83 | 32.13 | 33.42 | 34.71 | 36 | 37.27 | 38.58 | 39.86 | |||||||||||
| ONAF Effective Cooling Area (m²) | 23.46 | 24.5 | 26.57 | 26.13 | 29.67 | 31.25 | 32.81 | 34.37 | 35.93 | 37.49 | 39.05 | 40.61 | 42.17 | 43.73 | 45.29 | 46.85 | |||||||||||
| 26 | Weight(Kg) | 330.2 | 351.1 | 371.5 | 091.8 | 411.5 | 432 | 452.3 | 472.8 | 493.2 | 513.5 | 533.8 | 554.1 | 574.5 | 595 | 615.2 | 636.6 | ||||||||||
| Oil Capacity(Kg) | 113.6 | 118.1 | 121.9 | 126.7 | 127.7 | 134.8 | 136.2 | 144.1 | 145.5 | 140.9 | 153.8 | 157.7 | 162.9 | 168.2 | 173.4 | 180.2 | |||||||||||
| ONAN Effective Cooling Area (m2) | 21.3 | 22.64 | 24 | 25.36 | 26.68 | 28.02 | 29.37 | 30.7 | 32.03 | 33.3 | 34.72 | 36.06 | 37.4 | 38.72 | 40.0B | 41.41 | |||||||||||
| ONAF Effective Cooling Area (m²) | 24.28 | 25.81 | 27.47 | 29.08 | 30.69 | 32.31 | 33.92 | 35.54 | 37.15 | 38.76 | 40.38 | 41.99 | 43.G | 46.22 | 46.83 | 48.44 | |||||||||||
| 27 | Weight(Kg) | 385.2 | 406 | 427.5 | 488.1 | 469.3 | 490.5 | 511.5 | 532.8 | 553.8 | 575 | 595.4 | 617.2 | 638.3 | 659.6 | ||||||||||||
| Oil Capacity(Kg) | 126.7 | 130.5 | 132.6 | 140 | 141.8 | 149.6 | 151 | 155.7 | 159.7 | 163.7 | 169.1 | 174.6 | 180.3 | 187 | |||||||||||||
| ONAN Effective Cooling Area (m2) | 24.88 | 26.31 | 27.66 | 29.07 | 30.47 | 31.86 | 33.23 | 34.63 | 36.02 | 37.41 | 38.8 | 40.17 | 41.68 | 42.96 | |||||||||||||
| ONAF Effective Cooling Area (m²) | 28.61 | 30.02 | 31.69 | 33.35 | 35.02 | 35.69 | 38.35 | 40.02 | 41.65 | 43.35 | 45.02 | 46.69 | 48.34 | 5o,01 | |||||||||||||
| 28 | Weight(Kg) | 399 | 420.8 | 442.7 | 464.3 | 486.4 | 50B.2 | 630 | 552.1 | 573.8 | 595.7 | 617.8 | 639.5 | 661.5 | 683.4 | ||||||||||||
| Oil Capacity(Kg) | 131.5 | 135.3 | 137.5 | 146.2 | 147.1 | 166.2 | 156.6 | 161.5 | 166.6 | 169.8 | 176.4 | 181.1 | 187.2 | 184 | |||||||||||||
| ONAN Effective Cooling Area (m2) | 25.78 | 27.24 | 28.66 | 30.12 | 31.57 | 33 | 34.43 | 36.88 | 37.32 | 38.76 | 40.2 | 41.62 | 43.08 | 44.51 | |||||||||||||
| ONAF Effective Cooling Area (m²) | 29.45 | 30.95 | 32.67 | 34.39 | 36.1 | 37.82 | 38.54 | 41.26 | 42.97 | 44.69 | 46.41 | 48.13 | 49.84 | 51.56 | |||||||||||||
| 29 | Weight(Kg) | 412.7 | 435.5 | 458 | 480.3 | 603.1 | 526.1 | 548.5 | 571.2 | 693.8 | e | 69 | 662 | 684.7 | 707.3 | ||||||||||||
| Oil Capacity(Kg) | 136.3 | 140.1 | 142.4 | 150.4 | 152.4 | 160.7 | 162.2 | 167.2 | 171.5 | 175.8 | 181.6 | 187.5 | 194.1 | 200.8 | |||||||||||||
| ONAN Effective Cooling Area (m2) | 26.6B | 28.19 | 29.66 | 31.17 | 32.67 | 34.15 | 35.63 | 37.13 | 3B.62 | 40.11 | 41.6 | 43.07 | 44.58 | 46.06 | |||||||||||||
| ONAF Effective Cooling Area (m²) | 30.2 | 31.81 | 33.34 | 35.41 | 37.17 | 38.04 | 40.71 | 42.48 | 44.25 | 46.02 | 47.72 | 42.65 | 61.32 | 63.09 | |||||||||||||
| 30 | Weight(Kg) | 428.9 | 449.9 | 473.5 | 496.8 | 520.1 | 543.5 | 567 | 590.4 | 613.9 | 637.3 | 661 | 684.2 | 707.7 | 731.2 | ||||||||||||
| Oil Capacity(Kg) | 141.1 | 144.9 | 147.3 | 165.6 | 157.7 | 166.3 | 187.8 | 172.9 | 177.4 | 181.8 | 187-8 | 194 | 200.9 | 207.8 | |||||||||||||
| ONAN Effective Cooling Area (m2) | 27.5B | 2D.14 | 30.6G | 32.22 | 33.77 | 36.2 | S6.83 | 3,838 | 30.92 | 41.4G | 43 | 44.52 | 46.0B | 47.61 | |||||||||||||
| ONAF Effective Cooling Area (m²) | 31.13 | 32.78 | 34.6 | 36.41 | 38.24 | 40.05 | 41.87 | 43.6 | 45.51 | 47.32 | 49.14 | 50.96 | 52.78 | 54.6 | |||||||||||||
| 31 | Weight(Kg) | 464.6 | 488.9 | 513 | 537 | 561.3 | 585.4 | 609.7 | 633.9 | 658.1 | 682.5 | 706.6 | 731 | 755 | |||||||||||||
| Oil Capacity(Kg) | 149.7 | 152.2 | 1608 | 163 | 171.6 | 173.4 | 178.6 | 183.3 | 187.8 | 194.1 | 200.4 | 207.5 | 214.6 | ||||||||||||||
| ONAN Effective Cooling Area (m2) | 30.1 | 31.66 | 33.27 | 34.86 | 36.45 | 38.03 | 39.63 | 41.22 | 42.81 | 44.4 | 45.97 | 47.58 | 49.16 | ||||||||||||||
| ONAF Effective Cooling Area (m²) | 33.71 | 35.55 | 37.41 | 39.28 | 41.15 | 43.02 | 44.89 | 46.75 | 48.61 | 50.46 | 52.36 | 54.23 | 66.1 | ||||||||||||||
| P C ( G ) H 一 N / 4 8 0 Radiator Parameter Table | |||||||||||
| Number of Fin Sheets | Center Distance (mm) | 3100 | 3200 | 3300 | 3400 | 3500 | 3600 | 3700 | 3800 | 3900 | 4000 |
| 14 | Weight(Kg) | 3G0.2 | 371.1 | 382.2 | 393.4 | 404.5 | 415.5 | 426.6 | 437.7 | 448.8 | 459.8 |
| Oil Capacity(Kg) | 1005 | 103.8 | 107 | 110.2 | 113.4 | 116.6 | 119.6 | 125.1 | 126.3 | 129.6 | |
| ONAN Effective Cooling Area (m2) | 24.47 | 25.25 | 25.03 | 26.81 | 27.59 | 28.38 | 29.17 | 29.96 | 30.75 | 31.54 | |
| ONAF Effective Cooling Area (m²) | 29.0G | 29.87 | 30.94 | 31.9 | 32.85 | 33.81 | 34.76 | 35.72 | 36.68 | 37.63 | |
| 15 | Weight(Kg) | 384.8 | 396.7 | 40.8.5 | 420.4 | 432.2 | 444.1 | 455.9 | 467.8 | 479.5 | 491.5 |
| Oil Capacity(Kg) | 107.7 | 111.1 | 114.6 | 118 | 121.4 | 124.9 | 128.3 | 131.8 | 136.3 | 138.8 | |
| ONAN Effective Cooling Area (m2) | 26.02 | 26.85 | 27.67 | 28.49 | 29.31 | 30.13 | 30.95 | 31.78 | 32.6 | 33.42 | |
| ONAF Effective Cooling Area (m²) | 30.83 | 31.81 | 32.79 | 33.77 | 34.75 | 35.73 | 3G.71 | 37.59 | 38.65 | 3961 | |
| 16 | Weight(Kg) | 409.5 | 422.2 | 434.7 | 447.4 | 460 | 472.6 | 485.2 | 497.8 | 510.5 | 523.1 |
| Oil Capacity(Kg) | 114.8 | 118.5 | 122.2 | 125.8 | 129.5 | 133.2 | 136.9 | 140.6 | 144.3 | 148 | |
| ONAN Effective Cooling Area (m2) | 27.55 | 28.43 | 29.31 | 30.18 | 31.05 | 31.93 | 32.81 | 33.66 | 34.55 | 35.42 | |
| ONAF Effective Cooling Area (m²) | 32.69 | 33.75 | 34.8 | 35.88 | 36.92 | 37.97 | 39.03 | 40.05 | 41.14 | 42.19 | |
| 17 | Weight(Kg) | 434.2 | 447。5 | 461 | 474.3 | 487。7 | 501.1 | 514.5 | 527.9 | 641.3 | 554.7 |
| Oil Capacity(Kg) | 122 | 125.8 | 129.8 | 133.6 | 137.5 | 141.5 | 145.4 | 149.3 | 150.3 | 157.2 | |
| ONAN Effective Cooling Area (m2) | 29 | 30.01 | 50.94 | 31.87 | 2.8 | 33.73 | 34.65 | 35.57 | 36.49 | 37.41 | |
| ONAF Effective Cooling Area (m²) | 34.53 | 35.64 | 36.76 | 37.87 | 38.89 | 40.1 | 4122 | 42.33 | 43.45 | 44.56 | |
| 18 | Weight(Kg) | 458.8 | 473 | 487.2 | 501.3 | 515.5 | 529.7 | 543.9 | 558 | 572.2 | 586.4 |
| Oil Capacity(Kg) | 129.1 | 133.2 | 137.3 | 141.4 | 145.6 | 149.8 | 153.9 | 158.1 | 162.2 | 166.3 | |
| ONAN Effective Cooling Area (m2) | 30.61 | 31.59 | 32.57 | 33.55 | 34.53 | 35.51 | 36.49 | 37.47 | 38.45 | 39.43 | |
| ONAF Effective Cooling Area (m²) | 36.31 | 37.5 | 35.67 | 39.64 | 4101 | 42.18 | 43.35 | 44.52 | 45.69 | 46.86 | |
| 19 | Weight(Kg) | 483.5 | 488.4 | 513.4 | 528.3 | 543.3 | 658.2 | 573.2 | 588.1 | 603 | 618 |
| Oil Capacity(Kg) | 138.2 | 140.5 | 145 | 149.2 | 153.6 | 158.1 | 182.5 | 156.8 | 171.3 | 175.3 | |
| ONAN Effective Cooling Area (m2) | 32.07 | 33.09 | 34.11 | 35.13 | 36.15 | 37。17 | 36.19 | 39.21 | 40.24 | 41.27 | |
| ONAF Effective Cooling Area (m²) | 36.12 | 39.35 | 40.56 | 41.61 | 43 04 | 44.27 | 45.5 | 46.73 | 47.96 | 49.1 | |
| 20 | Weight(Kg) | 508.2 | 523.9 | 539.6 | 555.3 | 571 | 506.7 | 602.5 | 618.2 | 693.9 | 649.6 |
| Oil Capacity(Kg) | 143.3 | 147.9 | 152.5 | 157.1 | 161.7 | 166.3 | 170.9 | 175.6 | 180.1 | 184.7 | |
| ONAN Effective Cooling Area (m2) | 33.53 | 34.61 | 35.69 | 36.77 | 37.85 | 38.93 | 40.01 | 41.09 | 42.17 | 43.25 | |
| ONAF Effective Cooling Area (m²) | 39.88 | 4116 | 42:.44 | 43.72 | 45 | 48.28 | 47.56 | 48.84 | 50.12 | 51.4 | |
| 21 | Weight(Kg) | 532.8 | 549.3 | 565.8 | 582.3 | 698.8 | 615.3 | 631.8 | 648.3 | 664.8 | 681.2 |
| Oil Capacity(Kg) | 150.4 | 155.2 | 160.2 | 164.8 | 169.7 | 174.7 | 179.6 | 184.3 | 189.2 | 193.3 | |
| ONAN Effective Cooling Area (m2) | 34.99 | 36.11 | 37.23 | 36.35 | 39.47 | 40.59 | 41.71 | 42.83 | 43.95 | 45.07 | |
| ONAF Effective Cooling Area (m²) | 41.63 | 42.87 | 44.31 | 45.65 | 4800 | 48.99 | 49.87 | 51.01 | 52.35 | 53.6 | |
| 22 | Weight(Kg) | 557.5 | 574.7 | 592 | 809.3 | 626.5 | 643.8 | 661.1 | 678.3 | 696.6 | 7122 |
| Oil Capacity(Kg) | 158.1 | 163.7 | 168.2 | 172.7 | 177.8 | 182.9 | 187.9 | 193 | 198 | 203.1 | |
| ONAN Effective Cooling Area (m2) | 36.43 | 37.6 | 38.77 | 39.94 | 41.11 | 42.28 | 4345 | 44.62 | 45.79 | 46.96 | |
| ONAF Effective Cooling Area (m²) | 43.31 | 44.71 | 46.11 | 47.51 | 48.91 | GO.31 | 51.71 | 53.15 | 54.51 | 52.91 | |
| 23 | Weight(Kg) | 582.1 | GOO.2 | 618.2 | 936.3 | 654.2 | 672.3 | 690.4 | 708.4 | 726.5 | 744.5 |
| Oil Capacity(Kg) | 164.6 | 169.9 | 175.4 | 180.4 | 165.8 | 191.3 | 196.7 | 201.8 | 207 | 212.1 | |
| ONAN Effective Cooling Area (m2) | 37.94 | 39.11 | 40.28 | 41.45 | 42.62 | 43.79 | 45.96 | 46.13 | 47.3 | 48.47 | |
| ONAF Effective Cooling Area (m²) | 45.06 | 46.51 | 47.96 | 49.41 | 5086 | 52.31 | 53.76 | 55.21 | 56.06 | 58.11 | |
| 24 | Weight(Kg) | GO6.6 | G25.6 | G44.4 | GG3.3 | 682.1 | 700.9 | 719.7 | 738.5 | 767.3 | 766.1 |
| Oil Capacity(Kg) | 171.8 | 177.4 | 82.9 | 188.4 | 193.9 | 199.4 | 204.9 | 210.5 | 21G | 221.5 | |
| ONAN Effective Cooling Area (m2) | 39.45 | 40.69 | 41.93 | 43.17 | 44.4 | 45.83 | 46.86 | 48.1 | 49.34 | 50.58 | |
| ONAF Effective Cooling Area (m²) | 6.75 | 48.25 | 49.76 | 51.28 | 62.77 | 54.27 | 55.78 | 57.29 | 58.79 | G0.3 | |
| 25 | Weight(Kg) | 631.5 | 651.1 | 6706 | 690.2 | 709.8 | 729.4 | 749 | 768.6 | 788.2 | 807.8 |
| Oil Capacity(Kg) | 178-8 | 184.6 | 190.6 | 196 | 201.9 | 202.9 | 213.8 | 219.3 | 224.9 | 230.3 | |
| ONAN Effective Cooling Area (m²) | 41.14 | 4242 | 43.7 | 44.97 | 46 .24 | 47.51 | 48.79 | 50.07 | 5135 | 52.62 | |
| ONAF Effective Cooling Area (m²) | 48.41 | 49.97 | 5153 | 63.07 | 5465 | 5621 | 57。77 | 59.33 | 60.89 | 62.45 | |
| 26 | Weight(Kg) | 656.1 | 676.5 | 696.9 | 717.2 | 737.6 | 757.9 | 778.3 | 798.7 | 819 | 639.4 |
| Oil Capacity(Kg) | 186.1 | 192.1 | 198 | 204 | 210 | 216 | 222 | 228 | 233.9 | 239.8 | |
| ONAN Effective Cooling Area (m2) | 42.74 | 44.07 | 45.4 | 46.72 | 48.04 | 49.37 | 50.69 | 52.02 | 52.35 | 54.68 | |
| ONAF Effective Cooling Area (m²) | 50.05 | 5166 | 53.27 | 54.88 | 5640 | 581 | 5971 | 61.32 | 62.93 | 6454 | |
| 27 | Weight(Kg) | 680.8 | 701.9 | 723.1 | 744.2 | 765.3 | 786.5 | 807.6 | 828.7 | 849.9 | 871 |
| Oil Capacity(Kg) | 193.1 | 199.3 | 205.6 | 211.9 | 218 | 224.2 | 230.5 | 236.9 | 242.8 | 248.8 | |
| ONAN Effective Cooling Area (m²) | 44.34 | 46.72 | 47.1 | 48.48 | 49.86 | 51.24 | 52.82 | 54 | 55.38 | 58.76 | |
| ONAF Effective Cooling Area (m²) | 51.68 | 53.35 | 55.02 | 56.69 | 58.36 | 60.03 | 61.7 | 63.37 | 65.04 | 66.71 | |
| 28 | Weight(Kg) | 705.5 | 727.4 | 749.3 | 771.2 | 793.1 | 815 | 836.9 | 858.8 | 880.7 | 902.6 |
| Oil Capacity(Kg) | 200.4 | 206.8 | 213.2 | 219.6 | 226.1 | 232.6 | 239 | 246.5 | 251.9 | 258.3 | |
| ONAN Effective Cooling Area (m2) | 45.94 | 47.37 | 48.8 | 50.23 | 51.66 | 53.09 | 54.52 | 55.95 | 57.38 | 58.81 | |
| ONAF Effective Cooling Area (m²) | 53.28 | 55 | 56.72 | 58.44 | 60.15 | 61.88 | 63.6 | 65.32 | 67.04 | 68.76 | |
| 29 | Weight(Kg) | 730.1 | 752.8 | 775.6 | 798.2 | 820.9 | 843.5 | 866.2 | 888.9 | 911.6 | 934.3 |
| Oil Capacity(Kg) | 207.4 | 214.1 | 220.8 | 227.5 | 234.1 | 240.8 | 247.5 | 254.3 | 260 | 267.5 | |
| ONAN Effective Cooling Area (m²) | 47.54 | 49.02 | 50.5 | 51.98 | 53.45 | 54.94 | 56.42 | 57.9 | 59.38 | 60.86 | |
| ONAF Effective Cooling Area (m²) | 54.86 | 56.63 | 58.4 | 60.17 | 61.94 | 63.71 | 65.48 | 67.25 | 69.02 | 70.79 | |
| 30 | Weight(Kg) | 754.8 | 778.3 | 801.7 | 825.2 | 840.8 | 872.1 | 895.5 | 919 | 942.4 | 965.9 |
| Oil Capacity(Kg) | 214.6 | 221.5 | 228.4 | 235.3 | 242.2 | 249.1 | 256 | 263 | 269.8 | 276.7 | |
| ONAN Effective Cooling Area (m2) | 49.14 | 50.67 | 52.2 | 53.73 | 55.26 | 56.79 | 58.32 | 59.85 | 61.38 | 62.91 | |
| ONAF Effective Cooling Area (m²) | 53.42 | 68.24 | 60.06 | 61.88 | 63.7 | 65.52 | 67.34 | 69.16 | 70.98 | 72.8 | |
| 31 | Weight(Kg) | 779.5 | 803.7 | 827.9 | 852.2 | 876.4 | 900.6 | 924.8 | 949.1 | 973.3 | 997.5 |
| Oil Capacity(Kg) | 221.7 | 228.9 | 236 | 243.1 | 250.2 | 257.4 | 264.5 | 271.7 | 278.8 | 285.9 | |
| ONAN Effective Cooling Area (m²) | 50.74 | 62.32 | 53.9 | 55.48 | 57.06 | 50.84 | 60.22 | 61.8 | 83.38 | 64.96 | |
| ONAF Effective Cooling Area (m²) | 57.97 | 59.84 | 61.71 | 63.58 | 66.45 | 67.32 | 68.19 | 71.06 | 72.93 | 74.8 | |
| 32 | Weight(Kg) | 804.1 | 829.1 | 854.1 | 879.1 | 904.1 | 929.1 | 954.1 | 979.1 | 1004.1 | 1029.1 |
| Oil Capacity(Kg) | 228.8 | 236.3 | 243.6 | 250.9 | 258.3 | 255.7 | 273 | 280.4 | 287.7 | 295.1 | |
| ONAN Effective Cooling Area (m2) | 52.34 | 53.97 | 55.6 | 57.23 | 56.86 | GO.49 | 62.12 | G3.75 | G6.3 | 67.01 | |
| ONAF Effective Cooling Area (m²) | 59.53 | 61.44 | 63.36 | G5.28 | 67。2 | 69.12 | 71.04 | 72.96 | 74.8 | 76.8 | |
| P C ( G ) H – N / 5 2 0 Radiator Parameter Table | ||||||||||||||||
| Number of Fin Sheets | Center Distance (mm) | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 | 2100 | 2200 |
| 6 | Weight(Kg) | 56.4 | 61.5 | 65.6 | 72.4 | 75.6 | ||||||||||
| Oil Capacity(Kg) | 19.3 | 20.9 | 22.6 | 23.8 | 24.3 | |||||||||||
| ONAN Effective Cooling Area (m2) | 3.16 | 3.41 | 3.87 | 4.03 | 4.36 | |||||||||||
| ONAF Effective Cooling Area (m²) | ||||||||||||||||
| 7 | Weight(Kg) | 64.5 | 69.8 | 74.9 | 90.6 | 66.5 | ||||||||||
| Oil Capacity(Kg) | 23.4 | 24.4 | 26.5 | 27.4 | 28.4 | |||||||||||
| ONAN Effective Cooling Area (m2) | 3.04 | 394 | 4.41 | 4.7 | 5.0B | |||||||||||
| ONAF Effective Cooling Area (m²) | ||||||||||||||||
| 8 | Weight(Kg) | 71.2 | 77.5 | 84.3 | 95.5 | 97.4 | 103.3 | 109.9 | 117.8 | 124.7 | 134.4 | 138.7 | 145.6 | 152 | 155.3 | 165.3 |
| Oil Capacity(Kg) | 27.2 | 27.8 | 30.2 | 31.7 | 32.5 | 33.1 | 33.7 | 35.4 | 37.4 | 39.5 | 42.5 | 43.6 | 46.6 | 47.7 | 49.8 | |
| ONAN Effective Cooling Area (m2) | 3.91 | 4.48 | 4.94 | 5.98 | 5.81 | 6.28 | 6.76 | 7.4 | 7.89 | 8.06 | 8.B3 | 9.31 | 9.8 | 1028 | 10.77 | |
| ONAF Effective Cooling Area (m²) | 9.16 | 9.73 | 10.27 | 10.85 | 11.43 | 11.98 | 12.56 | |||||||||
| 9 | Weight(Kg) | 79.7 | 86 | 93.3 | 100.5 | 107.1 | 114.7 | 121.8 | 131.3 | 139.2 | 140.2 | 154.5 | 162.2 | 169.4 | 173.7 | 184.4 |
| Oil Capacity(Kg) | 30.6 | 32.6 | 33.9 | 36.3 | 366 | 37.3 | 37.9 | 39.7 | 42 | 44.4 | 46.8 | 49 | 61.3 | 63.6 | 65.94 | |
| ONAN Effective Cooling Area (m2) | 4.41 | 4.95 | 5.47 | 6.05 | 6.54 | 7.6 | 7.67 | 8.28 | 8.82 | 9.35 | 9.87 | 10.31 | 10.96 | 11.5 | 12.03 | |
| ONAF Effective Cooling Area (m²) | 10.27 | 10.9 | 11.63 | 12.16 | 12.81 | 13.44 | 14.07 | |||||||||
| 10 | Weight(Kg) | 8G.2 | 94.7 | 103.4 | 111.5 | 119.4 | 127.4 | 136.4 | 144.7 | 163 | 1G4.1 | 170.3 | 178.8 | 186.9 | 192.1 | 203.6 |
| Oil Capacity(Kg) | 30 | 36.1 | 37.6 | 39.2 | 40.7 | 41.4 | 41.8 | 44.09 | 46.6 | 49.3 | 51.3 | 54.4 | 80.1 | 59.5 | 62.1 | |
| ONAN Effective Cooling Area (m2) | 4.67 | 5.47 | 6.06 | 6.72 | 7.23 | 7.88 | 8.41 | 9.15 | 9.74 | 10.33 | 10.91 | 11.61 | 12.11 | 12.7 | 13.3 | |
| ONAF Effective Cooling Area (m²) | 11.3B | 12.08 | 12.76 | 13.48 | 14.18 | 14.89 | 15.59 | |||||||||
| 11 | Weight(Kg) | 95.2 | 103.1 | 112.3 | 122.6 | 130.5 | 138.9 | 147.6 | 157.9 | 167.1 | 179.2 | 186.1 | 195.4 | 204.4 | 210.5 | 222.8 |
| Oil Capacity(Kg) | 37.5 | 39.8 | 41.4 | 43.1 | 44.2 | 46.5 | 48 | 48.4 | 51.3 | 54.1 | 67.2 | 69.8 | 62.6 | 66.4 | 68.3 | |
| ONAN Effective Cooling Area (m2) | 5.38 | 60 | 6.65 | 7.39 | 7.93 | 8.61 | 9.22 | 10.02 | 10.67 | 11.32 | 11.95 | 12.61 | 13.26 | 13.92 | 14.57 | |
| ONAF Effective Cooling Area (m²) | 12.48 | 13.26 | 14.02 | 14.8 | 15.57 | 1634 | 17.11 | |||||||||
| 12 | Weight(Kg) | 102.4 | 114.4 | 121 | 132.6 | 141.3 | 152.6 | 161.3 | 171.3 | 181.2 | 194.2 | 202.1 | 212 | 221.9 | 228.9 | 241.9 |
| Oil Capacity(Kg) | 40.8 | 43.4 | 45 | 47.1 | 48.8 | 49.6 | 52.6 | 52.6 | 55.9 | 58.9 | 62.1 | 66.2 | 6B.2 | 71.3 | 74.4 | |
| ONAN Effective Cooling Area (m2) | 6.87 | 6.66 | 7.2 | 8.07 | 8.69 | 9.53 | 9.88 | 10.89 | 11.6 | 12.31 | 13.01 | 13.71 | 14.42 | 16.13 | 16.83 | |
| ONAF Effective Cooling Area (m²) | 13.6 | 14.44 | 16.27 | 16.11 | 16.9G | 17.78 | 18.63 | |||||||||
| 13 | Weight(Kg) | 111.6 | 121.3 | 131.3 | 143.2 | 153.5 | 163.7 | 174.3 | 185.1 | 196.2 | 208.9 | 217.8 | 220.6 | 239.3 | 247.3 | 261.1 |
| Oil Capacity(Kg) | 44 | 47 | 48.5 | 51.2 | 52.9 | 53.8 | 56.8 | 57.2 | 80.5 | 63.9 | 67.2 | 70.52 | 73.8 | 77.2 | 60.6 | |
| ONAN Effective Cooling Area (m2) | 6.36 | 7.1 | 7.74 | 8.74 | 9.24 | 10.06 | 10.74 | 11.65 | 12.4 | 13.17 | 13.9 | 14.66 | 15.4 | 16.18 | 16.92 | |
| ONAF Effective Cooling Area (m²) | 14.56 | 15.47 | 16.35 | 17.26 | 15.12 | 18.05 | 19.94 | |||||||||
| 14 | Weight(Kg) | 118.9 | 130.4 | 141.4 | 154.3 | 166.3 | 175.2 | 186.8 | 196.1 | 210.1 | 221.6 | 233.6 | 246.2 | 256.7 | 266.6 | 280.3 |
| Oil Capacity(Kg) | 47.7 | 61.2 | 52.3 | 54.9 | 55.9 | 57.9 | 61.8 | 63.5 | 65.1 | 68.6 | 72.5 | 75.D | 795 | 83.1 | 86.7 | |
| ONAN Effective Cooling Area (m2) | 6.8d | 7.82 | 8.34 | 9.41 | 9.87 | 10.77 | 11.48 | 12.5 | 13.33 | 14.12 | 14.93 | 15.75 | 16.56 | 17.38 | 18.19 | |
| ONAF Effective Cooling Area (m²) | 14.69 | 15.66 | 16.61 | 17.58 | 18.56 | 19.52 | 20.48 | 21.45 | ||||||||
| 15 | Weight(Kg) | 126.7 | 138.5 | 150.9 | 163.4 | 176.7 | 167.3 | 199.3 | 211.7 | 224.1 | 236.8 | 249.4 | 261.8 | 274.2 | 284 | 299.4 |
| Oil Capacity(Kg) | 61.1 | 64.2 | 66 | 68.8 | 69.9 | 62.1 | 66.9 | 66.8 | 89.3 | 73.61 | 77.5 | 81.5 | 86.1 | 89 | 92.9 | |
| ONAN Effective Cooling Area (m2) | 7.35 | 836 | 8.93 | 10.0B | 10 | 11.49 | 12.22 | 13.24 | 14.1 | 14.24 | 15.81 | 16.66 | 17.53 | 16.39 | 19.25 | |
| ONAF Effective Cooling Area (m²) | 15.57 | 16.59 | 17.6 | 16.61 | 19.65 | 2067 | 21.7 | 22.72 | ||||||||
| 16 | Weight(Kg) | 135.3 | 148.2 | 160.9 | 174.3 | 188.3 | 199.8 | 212.3 | 225.6 | 238.7 | 252.3 | 265.7 | 278.9 | 292.1 | 302.4 | 318.5 |
| Oil Capacity(Kg) | 54.5 | 57.8 | 59.6 | 62.7 | 64.2 | 66.2 | 70.3 | 70.2 | 74.3 | 78.6 | 82.6 | 86.7 | 90.6 | 94.9 | 99 | |
| ONAN Effective Cooling Area (m2) | 7.89 | 8.92 | 9.53 | 10.75 | 11.29 | 12.21 | 13.01 | 14.09 | 15.01 | 15.9 | 16.82 | 17.75 | 18.86 | 19.58 | 20.49 | |
| ONAF Effective Cooling Area (m²) | 16.69 | 17.66 | 18.75 | 19.62 | 20.94 | 22.04 | 23.12 | 24.21 | ||||||||
| 17 | Weight(Kg) | 141.6 | 166.7 | 170.8 | 185.3 | 200.3 | 210.3 | 224 | 243.8 | 253 | 267.3 | 281.5 | 295.6 | 309.6 | 323.5 | 337.7 |
| Oil Capacity(Kg) | 57.9 | 61.5 | 63.5 | 66.7 | 65.4 | 70.38 | 74.6 | 74.5 | 79.2 | 84.32 | 87.8 | 92 | 96.45 | 100 | 105.2 | |
| ONAN Effective Cooling Area (m2) | 8.32 | 9.48 | 10.12 | 11.43 | 11.99 | 12.93 | 13.82 | 14.95 | 15.92 | 16.67 | 17.65 | 18.82 | 12.79 | 20.77 | 21.73 | |
| ONAF Effective Cooling Area (m²) | 1761 | 18.76 | 19.91 | 21.06 | 22.22 | 23.39 | 2455 | 25.7 | ||||||||
| 18 | Weight(Kg) | 149.8 | 165.2 | 179.4 | 196.5 | 211.6 | 221.7 | 237.5 | 252.2 | 267 | 282.2 | 297.4 | 312.2 | 327 | 341.9 | 356.8 |
| Oil Capacity(Kg) | 61.3 | 65.1 | 67.2 | 70.6 | 72.4 | 74.5 | 7,906 | 78.9 | 83.56 | 89.2 | 93 | 97.5 | 102 | 106.7 | 111.4 | |
| ONAN Effective Cooling Area (m2) | 6.81 | 10.0d | 10.72 | 11.42 | 12.7 | 13.65 | 14.64 | 15.81 | 16.83 | 17.83 | 16.87 | 19 | 20.92 | 21.95 | 22.97 | |
| ONAF Effective Cooling Area (m²) | 18.63 | 19.85 | 21.07 | 22.29 | 23.52 | 24.74 | 25.9G | 2838 | ||||||||
| 19 | Weight(Kg) | 157.3 | 170.5 | 189.4 | 205.4 | 222.7 | 234.3 | 290.2 | 266.1 | 261.6 | 297.6 | 313.6 | 329.3 | 344.9 | 360.6 | 376.3 |
| Oil Capacity(Kg) | 84.7 | 68.7 | 70.9 | 74.5 | 76.3 | 78.7 | 83.5 | 83.2 | 88.2 | 93.1 | 97.9 | 102.8 | 107.7 | 112.6 | 117.5 | |
| ONAN Effective Cooling Area (m2) | 9.23 | 10.61 | 11.32 | 12.77 | 13.41 | 14.37 | 15.45 | 16.48 | 17.56 | 18.61 | 19.68 | 20.77 | 21.83 | 22.9 | 23.97 | |
| ONAF Effective Cooling Area (m²) | 19.45 | 2073 | 22.01 | 23.27 | 23.62 | 25.83 | 2711 | 28.38 | ||||||||
| 20 | Weight(Kg) | 165.6 | 183.1 | 198.3 | 217.5 | 233.8 | 246.1 | 262.8 | 279.3 | 295.8 | 312.6 | 3,294 | 346 | 362.4 | 378.9 | 395.4 |
| Oil Capacity(Kg) | 68.2 | 72.3 | 74.6 | 76.4 | S1.2 | 52.8 | 87.8 | 87.6 | 92.8 | 97.9 | 103.1 | 108.2 | 113.4 | 118.5 | 123.6 | |
| ONAN Effective Cooling Area (m2) | 9.78 | 11.16 | 11.32 | 13.44 | 14.11 | 15.09 | 16.26 | 17.25 | 18.57 | 19.46 | 20.6 | 21.71 | 22.63 | 23.94 | 25.07 | |
| ONAF Effective Cooling Area (m²) | 20.36 | 21.68 | 23.01 | 24.35 | 26.68 | 27.04 | 28.3G | 29.7 | ||||||||
| 21 | Weight(Kg) | 196 | 207 | 216.5 | 245.1 | 258.2 | 275.3 | 292.6 | 310.1 | 327.6 | 345 | 362.6 | 3,798 | 097.2 | 414.5 | |
| Oil Capacity(Kg) | 62.4 | 84.5 | 86.9 | 90.1 | 92 | 97.4 | 102.8 | 10B.1 | 113.5 | 119 | 124.4 | 129.8 | ||||
| ONAN Effective Cooling Area (m2) | 14.11 | 14.67 | 15.61 | 17.07 | 18.02 | 19.19 | 20.3 | 21.56 | 22.67 | 23.86 | 25.02 | 26.2 | ||||
| ONAF Effective Cooling Area (m²) | 21.26 | 22.6 | 24.02 | 25.46 | 25.85 | 28.25 | 29.65 | 31.04 | ||||||||
| 22 | Weight(Kg) | 216 | 237.5 | 266.4 | 269.7 | 207.6 | 306.4 | 324.1 | 342.6 | 61.1 | 379.2 | 997.3 | 416.4 | 433.5 | ||
| Oil Capacity(Kg) | 86.3 | 88.5 | 91.1 | 942 | 95 | 102.2 | 107.8 | 113.3 | 119 | 124.7 | 130.3 | 135.9 | ||||
| ONAN Effective Cooling Area (m2) | 14.76 | 15.52 | 16.53 | 17.88 | 18.86 | 20.05 | 21.3 | 22.51 | 23.73 | 24.96 | 26.18 | 27.41 | ||||
| ONAF Effective Cooling Area (m²) | 22.27 | 23.72 | 25.16 | 26.84 | 28.11 | 29.5B | 31.04 | 32.5 | ||||||||
| 23 | Weight(Kg) | 261.4 | 300.6 | 319.6 | 338.7 | 358 | 377.4 | 396.3 | 415.2 | 434.2 | 453.1 | |||||
| Oil Capacity(Kg) | 95.2 | 95.2 | 100.7 | 196.7 | 123.2 | 118.5 | 124.4 | 130.3 | 136.2 | 142.1 | ||||||
| ONAN Effective Cooling Area (m2) | 17.25 | 18.69 | 19.69 | 20.91 | 22.23 | 23.51 | 24.8 | 26.08 | 27.35 | 28.62 | ||||||
| ONAF Effective Cooling Area (m²) | 23.28 | 24.6 | 26.31 | 27.83 | 29.35 | 30.91 | 32.43 | 33.96 | ||||||||
| 24 | Weight(Kg) | 293.1 | 313.3 | 333.1 | 352.9 | 373.1 | 393.2 | 412.9 | 432.6 | 452.4 | 472.2 | |||||
| Oil Capacity(Kg) | 99.2 | 102.2 | 105.8 | 111.3 | 117.5 | 123.6 | 129.8 | 135.2 | 142.1 | 14B2 | ||||||
| ONAN Effective Cooling Area (m2) | 17.07 | 19.5 | 20.47 | 21.78 | 23.11 | 24.43 | 25.76 | 27.1 | 28.43 | 29.75 | ||||||
| ONAF Effective Cooling Area (m²) | 24.2 | 25.79 | 27.36 | 28.95 | 30.54 | 32.14 | 33.72 | 35.31 | ||||||||
| 25 | Weight(Kg) | 304.4 | 326.4 | 346.9 | 367.5 | 388.5 | 409 | 429.3 | 449.1 | 470.4 | 491.8 | |||||
| Oil Capacity(Kg) | 103.2 | 105.1 | 109.4 | 115.9 | 112.3 | 128.8 | 135.2 | 141.6 | 149 | 1545 | ||||||
| ONAN Effective Cooling Area (m2) | 18.69 | 20.22 | 21.3 | 22.68 | 24.05 | 25.44 | 25.53 | 26.21 | 29.57 | 30.96 | ||||||
| ONAF Effective Cooling Area (m²) | 25.19 | 26.65 | 28.49 | 30.14 | 3180 | 33.45 | 35.11 | 36.76 | ||||||||
| 26 | Weight(Kg) | 316.7 | 339.3 | 360.2 | 381.6 | 403.5 | 426.3 | 448.1 | 466.7 | 488.5 | 488.8 | |||||
| Oil Capacity(Kg) | 107.2 | 110 | 113.8 | 120.5 | 127.1 | 133.9 | 140.5 | 147.2 | 153.9 | 160.7 | ||||||
| ONAN Effective Cooling Area (m2) | 19.41 | 20.94 | 22.14 | 23.5 | 25.06 | 26.44 | 27.57 | 29.31 | 30.74 | 31.55 | ||||||
| ONAF Effective Cooling Area (m²) | 26.19 | 27.91 | 29.62 | 31.46 | 33.07 | 34.78 | 3G.5 | 3,822 | ||||||||
| 27 | Weight(Kg) | 373.2 | 395.8 | 418.5 | 441.5 | 452.6 | 484.5 | 607.2 | 530 | |||||||
| Oil Capacity(Kg) | 118.1 | 125 | 132 | 138.9 | 145.9 | 1.52.8 | 159.8 | 166.7 | ||||||||
| ONAN Effective Cooling Area (m2) | 22.97 | 24.47 | 25.01 | 27.44 | 28.92 | 30.41 | 31.9 | 33.39 | ||||||||
| ONAF Effective Cooling Area (m²) | 27.19 | 28.97 | 30.76 | 32.53 | 3566 | 56.1 | 37.89 | 39.68 | ||||||||
| 28 | Weight(Kg) | 386.7 | 409.5 | 433.4 | 455.9 | 4,794 | 503.9 | 525.6 | 549.1 | |||||||
| Oil Capacity(Kg) | 122.6 | 120.7 | 136.8 | 144.2 | 151.2 | 1.58,5 | 165.7 | 172.9 | ||||||||
| ONAN Effective Cooling Area (m2) | 23.61 | 25.35 | 26.9 | 28.44 | 29.98 | 31.52 | 53.07 | 34.61 | ||||||||
| ONAF Effective Cooling Area (m²) | 28.18 | 30.03 | 31.87 | 33.73 | 35.58 | 37.4 | 39.28 | 41.12 | ||||||||
| 29 | Weight(Kg) | 399.6 | 424 | 448.5 | 461.7 | 496 | 519.3 | 543.8 | 568.2 | |||||||
| Oil Capacity(Kg) | 126.8 | 134.2 | 141.5 | 149.3 | 156.6 | 164.1 | 171.6 | 179 | ||||||||
| ONAN Effective Cooling Area (m2) | 24.65 | 26.25 | 27.81 | 29.44 | 31.04 | 32.63 | 34.23 | 36.82 | ||||||||
| ONAF Effective Cooling Area (m²) | 2,918 | 31.1 | 33.01 | 34.93 | 36.34 | 38.76 | 40.67 | 82.57 | ||||||||
| 30 | Weight(Kg) | 413.1 | 438.1 | 463.2 | 488.5 | 512.6 | 536.8 | 562.1 | 587.3 | |||||||
| Oil Capacity(Kg) | 131.2 | 139.2 | 146.8 | 154.4 | 162 | 169.3 | 177.5 | 185.3 | ||||||||
| ONAN Effective Cooling Area (m2) | 25.49 | 29.14 | 28.77 | 30.44 | 32.09 | 33.73 | 35.39 | 37.03 | ||||||||
| ONAF Effective Cooling Area (m²) | 30.18 | 32.16 | 3413 | 36.11 | 38.1 | 40.07 | 42.06 | 44.04 | ||||||||
| 31 | Weight(Kg) | 680.3 | 606.4 | |||||||||||||
| Oil Capacity(Kg) | 183.4 | 191.4 | ||||||||||||||
| ONAN Effective Cooling Area (m2) | 36.54 | 38.25 | ||||||||||||||
| ONAF Effective Cooling Area (m²) | 43.46 | 46.6 | ||||||||||||||
| 32 | Weight(Kg) | 598.6 | 825.5 | |||||||||||||
| Oil Capacity(Kg) | 189.3 | 197.6 | ||||||||||||||
| ONAN Effective Cooling Area (m2) | 37.71 | 39.4G | ||||||||||||||
| ONAF Effective Cooling Area (m²) | 44.84 | 46.94 | ||||||||||||||
| 33 | Weight(Kg) | 617 | 644 | |||||||||||||
| Oil Capacity(Kg) | 195.2 | 203.8 | ||||||||||||||
| ONAN Effective Cooling Area (m2) | 36.87 | 40.67 | ||||||||||||||
| ONAF Effective Cooling Area (m²) | 45.73 | 48.3 | ||||||||||||||
| P C ( G ) H — N / 5 2 0 Radiator Parameter Table | ||||||||
| Number of Fin Sheets | Center Distance (mm) | 3400 | 3500 | 3600 | 3700 | 3800 | 3900 | 4000 |
| 20 | Weight(Kg) | 599.5 | 617.9 | 635.6 | 652.3 | 668.9 | 685.2 | 7016 |
| Oil Capacity(Kg) | 185.1 | 190.6 | 195.7 | 200.7 | 205.9 | 211.1 | 216.3 | |
| ONAN Effective Cooling Area (m2) | 38.46 | 39.6 | 40.69 | 41.82 | 42.93 | 44.05 | 45.16 | |
| ONAF Effective Cooling Area (m²) | 45.71 | 47.05 | 48.38 | 49.72 | 51.05 | 52.39 | 53.73 | |
| 21 | Weight(Kg) | 628.6 | 648.1 | 666.7 | 684.2 | 701.7 | 713.8 | 736 |
| Oil Capacity(Kg) | 193.6 | 200 | 205.4 | 210.8 | 216.3 | 221.7 | 227 | |
| ONAN Effective Cooling Area (m2) | 40.17 | 41.34 | 42.5 | 43.67 | 44.84 | 46 | 47.17 | |
| ONAF Effective Cooling Area (m²) | 44.77 | 49.16 | 50.56 | 51.96 | 53.35 | 54.75 | 56.14 | |
| 22 | Weight(Kg) | 658 | 678.3 | 697.9 | 718.1 | 734.2 | 752.5 | 770.5 |
| Oil Capacity(Kg) | 203.9 | 209.6 | 215.2 | 220.6 | 226.5 | 232.1 | 237.8 | |
| ONAN Effective Cooling Area (m2) | 42.04 | 43.28 | 44.49 | 45.7 | 46.92 | 48.15 | 49.37 | |
| ONAF Effective Cooling Area (m²) | 50.02 | 51.5 | 5,294 | 54.4 | 55.36 | 57.32 | 58.78 | |
| 23 | Weight(Kg) | 687.3 | 708.4 | 728.9 | 748.1 | 766.8 | 785.9 | 804.8 |
| Oil Capacity(Kg) | 213.2 | 219 | 224.9 | 230.9 | 236.8 | 242.7 | 248.5 | |
| ONAN Effective Cooling Area (m2) | 43.93 | 45.21 | 46.46 | 47.74 | 49.01 | 50.29 | 51.56 | |
| ONAF Effective Cooling Area (m²) | 5226 | 53.86 | 55.32 | 56.84 | 58.37 | 59.9 | 61.43 | |
| 24 | Weight(Kg) | 716.3 | 740.8 | 760 | 780.1 | 799.6 | 819.6 | 839.2 |
| Oil Capacity(Kg) | 222.3 | 228.5 | 234.7 | 240.9 | 247 | 253.2 | 259.4 | |
| ONAN Effective Cooling Area (m2) | 45.64 | 46.9 | 48.3 | 49.61 | 50.94 | 52.3 | 53.59 | |
| ONAF Effective Cooling Area (m²) | 54.33 | 55.93 | 67.52 | 59.1 | 60.69 | 52.3 | 63.87 | |
| 25 | Weight(Kg) | 745.6 | 770.8 | 791.2 | 812 | 832.4 | 853.2 | 873.7 |
| Oil Capacity(Kg) | 231.5 | 238 | 244.5 | 250.9 | 257.3 | 263.8 | 270.2 | |
| ONAN Effective Cooling Area (m2) | 47.5 | 48.08 | 50.26 | 51.64 | 53.02 | 54.41 | 55.78 | |
| ONAF Effective Cooling Area (m²) | 55.58 | 58.23 | 59.89 | 61.54 | 63.2 | 64.66 | 66.5 | |
| 26 | Weight(Kg) | 774.7 | 800.5 | 822.2 | 843.8 | 865.1 | 986.6 | 908 |
| Oil Capacity(Kg) | 240.6 | 247.6 | 254.2 | 260.9 | 267.6 | 247.3 | 280.9 | |
| ONAN Effective Cooling Area (m2) | 49.37 | 50.81 | 52.23 | 53.67 | 55.1 | 56.54 | 57.97 | |
| ONAF Effective Cooling Area (m²) | 58.82 | 60.54 | 62.26 | 64 | 65.7 | 67.41 | 69.14 | |
| 27 | Weight(Kg) | 803.9 | 830.8 | 853.3 | 875.2 | 697.9 | 920.3 | 942.4 |
| Oil Capacity(Kg) | 250 | 257 | 263.9 | 270.9 | 277.8 | 284.8 | 291.8 | |
| ONAN Effective Cooling Area (m2) | 51.23 | 52.73 | 64.23 | 55.71 | 67.19 | 58.67 | 60.16 | |
| ONAF Effective Cooling Area (m²) | 51.06 | 62.85 | 64.64 | 66.42 | 68.2 | 70 | 71.77 | |
| 28 | Weight(Kg) | 833.2 | 861.2 | 884.5 | 907.7 | 930.7 | 953.9 | 976.9 |
| Oil Capacity(Kg) | 259.2 | 266.6 | 273.8 | 200.9 | 28B.2 | 295.4 | 302.6 | |
| ONAN Effective Cooling Area (m2) | 53.11 | 54.64 | 56.1 | 57.72 | 59.2 | 60.82 | 82.35 | |
| ONAF Effective Cooling Area (m²) | 53.3 | 65.15 | 67.19 | 68.85 | 70.71 | 72.55 | 74.4 | |
| 29 | Weight(Kg) | 882.3 | 891.4 | 915.6 | 939.7 | 963.5 | 987.6 | 1011.4 |
| Oil Capacity(Kg) | 268.6 | 276 | 283.5 | 290.9 | 298.6 | 305.9 | 313.3 | |
| ONAN Effective Cooling Area (m2) | 54.96 | 58.55 | 58.15 | 59.75 | 61.34 | 62.94 | 65.54 | |
| ONAF Effective Cooling Area (m²) | 6554 | 67.26 | 69.37 | 71.29 | 73.21 | 75.12 | 77.03 | |
| 30 | Weight(Kg) | 891.5 | 921.6 | 946.6 | 971.5 | 996.2 | 1021.8 | 1045.7 |
| Oil Capacity(Kg) | 277.8 | 285.6 | 293.2 | 300.9 | S08.7 | 316.4 | 324.1 | |
| ONAN Effective Cooling Area (m2) | 56.82 | 58.5 | 60.12 | 61.77 | 63.42 | 55.07 | 66.72 | |
| ONAF Effective Cooling Area (m²) | 67.79 | 69.77 | 71.74 | 73.72 | 75.71 | 77.68 | 79.66 | |
| 31 | Weight(Kg) | 920.6 | 951.9 | 977.6 | 1003.5 | 1028.9 | 1054.7 | 1081.1 |
| Oil Capacity(Kg) | 287 | 295 | 303 | 311 | 316.9 | 326.9 | 334.9 | |
| ONAN Effective Cooling Area (m2) | 58.69 | 60.4 | 62.12 | 83.8 | 65.51 | 67.21 | 68.91 | |
| ONAF Effective Cooling Area (m²) | 70.02 | 72.07 | 74.13 | 76.16 | 78.21 | 0.25 | 82.51 | |
| 32 | Weight(Kg) | 950 | 982.1 | 1008.8 | 1035.4 | 1061.6 | 1008.2 | 1114.4 |
| Oil Capacity(Kg) | 296.2 | 304.6 | 312.8 | 321 | 329.3 | 337.5 | 345.7 | |
| ONAN Effective Cooling Area (m2) | 50.55 | 62.31 | 64.07 | 85.83 | 67.6 | 69.34 | 71.11 | |
| ONAF Effective Cooling Area (m²) | 7226 | 74.37 | 76.49 | 78.6 | 80.71 | 72.82 | 84.93 | |
| 33 | Weight(Kg) | 979.3 | 1012.5 | 1040.1 | 1067.3 | 1094.3 | 1121.8 | 1148.8 |
| Oil Capacity(Kg) | 305.6 | 314 | 322.5 | 331 | 339.6 | 348 | 356.5 | |
| ONAN Effective Cooling Area (m2) | 62.41 | 64.22 | 66.04 | 67.85 | 69.67 | 71.48 | 73.29 | |
| ONAF Effective Cooling Area (m²) | 74.51 | 76.68 | 78.86 | 81.03 | B3,21 | 85.39 | 87.56 | |
