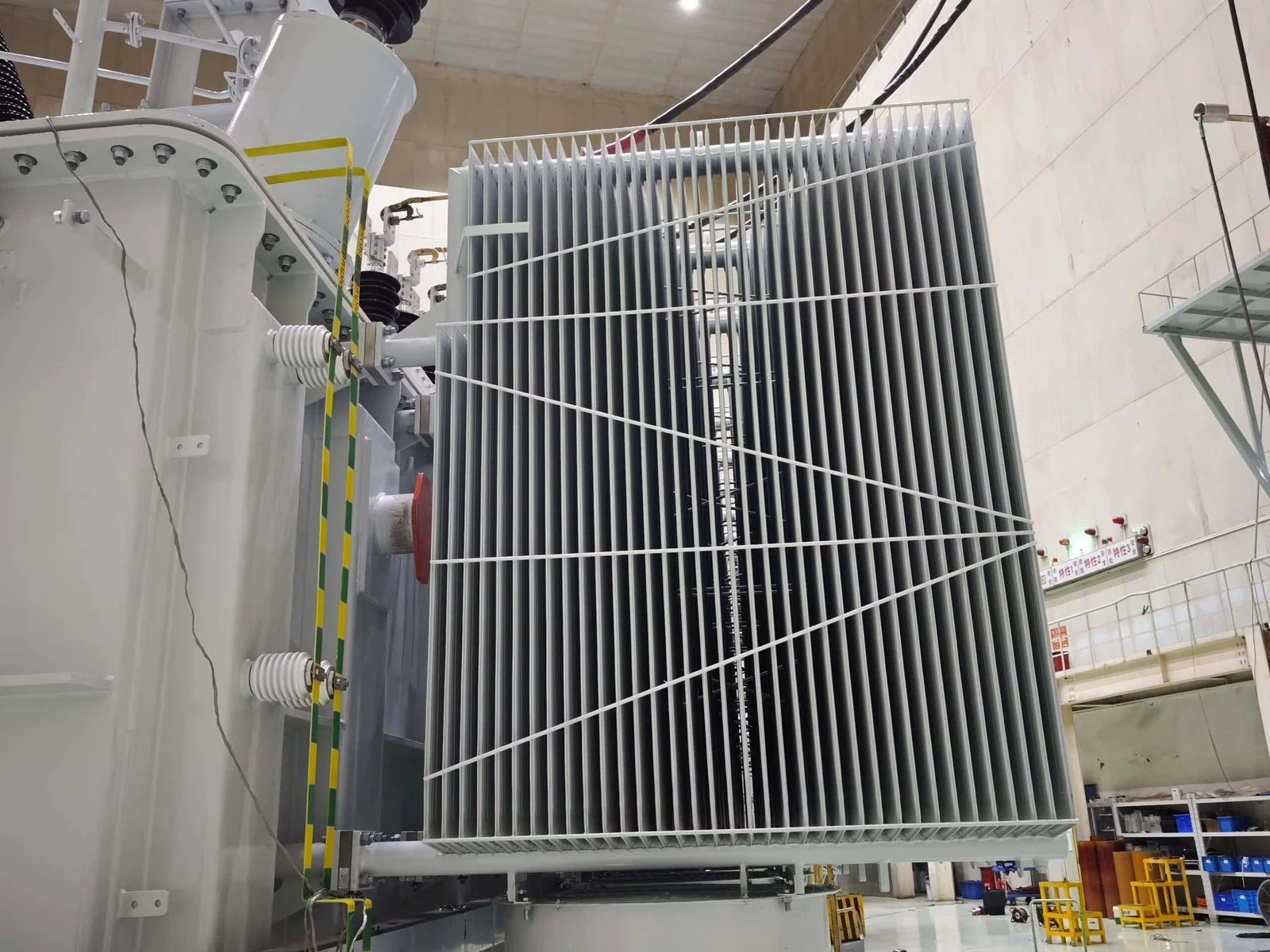

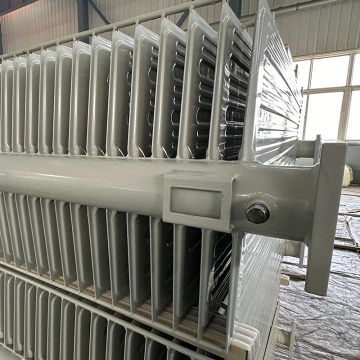

Radiastar manufactures Detachable Transformer Radiators for oil-immersed distribution transformers and power transformers. Designed with a modular panel structure and bolted flange connections, our radiators provide efficient heat dissipation, easy transportation, and convenient on-site installation and maintenance.
Engineered to comply with IEC 60076 and customer-specific requirements, our detachable radiators are widely used by transformer manufacturers, EPC contractors, utilities, and transformer repair companies worldwide.

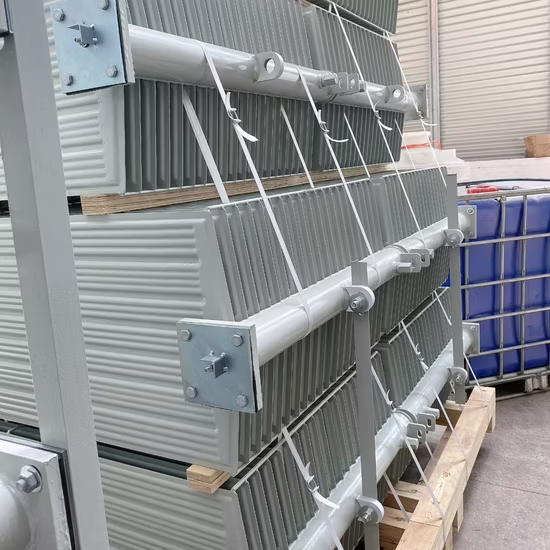

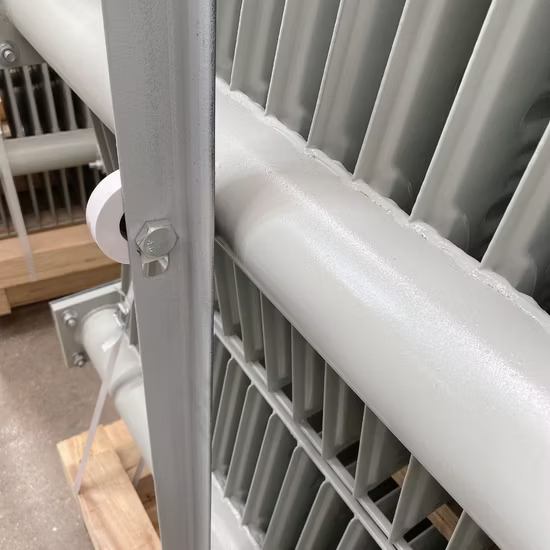

A Detachable Transformer Radiator is a removable cooling unit connected to the transformer tank through flanged joints. Unlike welded radiators, detachable designs allow individual radiator banks to be installed, replaced, or maintained without replacing the complete cooling system.
This design is especially suitable for medium and large oil-filled transformers where transportation, installation, and future maintenance are critical.
| Item | Specification |
|---|---|
| Product Name | Detachable Transformer Radiator |
| Application | Oil-Immersed Distribution & Power Transformers |
| Cooling Method | ONAN / ONAF |
| Transformer Capacity | 100 kVA – 500 MVA |
| Voltage Class | 10 kV – 500 kV |
| Radiator Type | Detachable Panel Type |
| Material | High-Quality Carbon Steel |
| Panel Thickness | 1.2 / 1.5 / 2.0 / 2.5 mm |
| Panel Width | 120 / 140 / 160 / 180 mm |
| Radiator Height | 500–3500 mm |
| Center Distance | 300–3500 mm |
| Panel Quantity | 5–36 Panels |

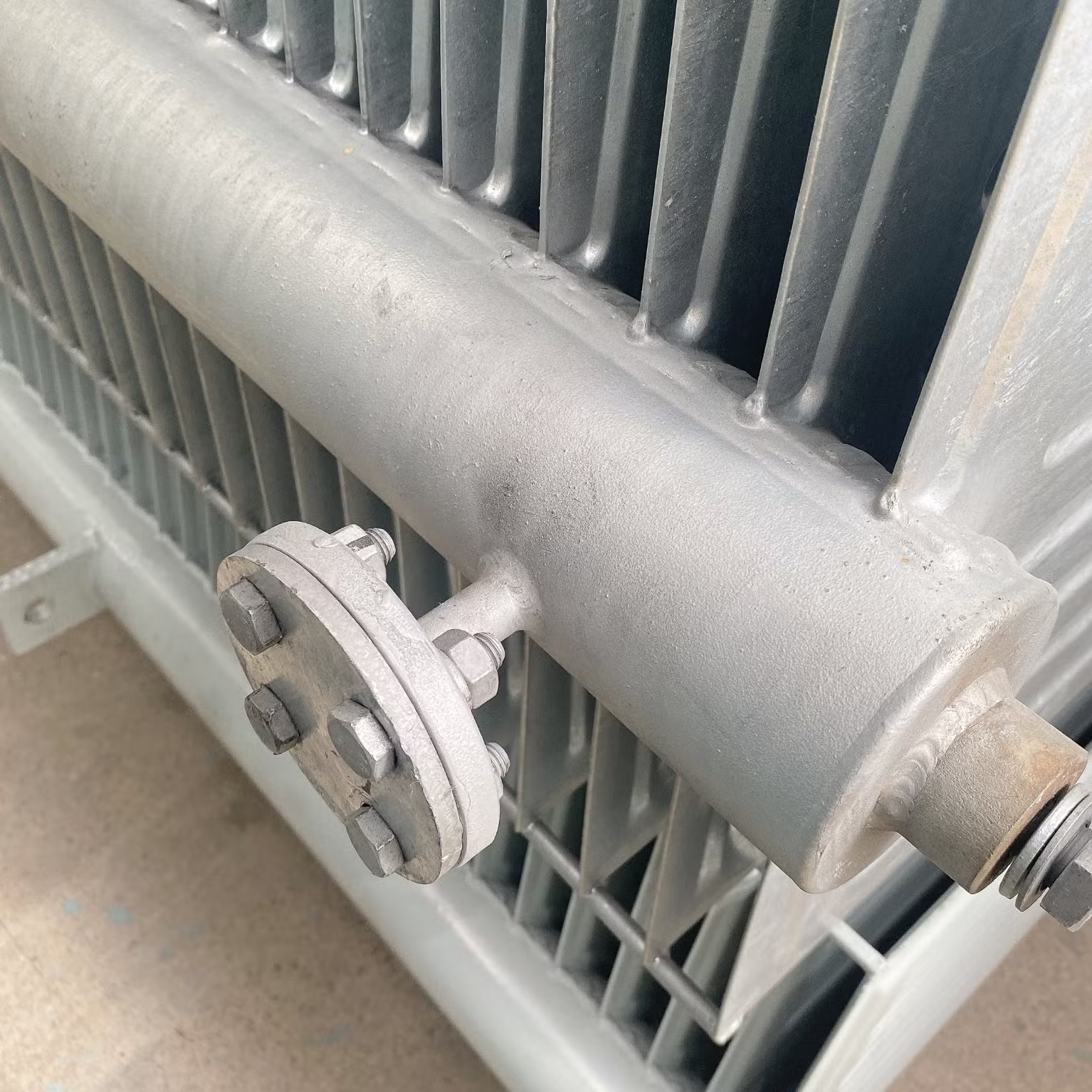

| Connection Type | Flanged Bolted Connection |
| Working Pressure | ≤0.6 MPa |
| Hydraulic Test | 0.8 MPa Pressure Test |
| Leakage Test | 100% Oil Tightness Tested |
| Surface Treatment | Shot Blasting + Powder Coating / Liquid Paint |
| Coating Thickness | 80–240 μm |
| Corrosion Protection | C3 / C4 / C5-I / C5-M |
| Operating Temperature | -45°C to +120°C |
| Manufacturing Standard | IEC 60076 |
| OEM / ODM | Supported |
