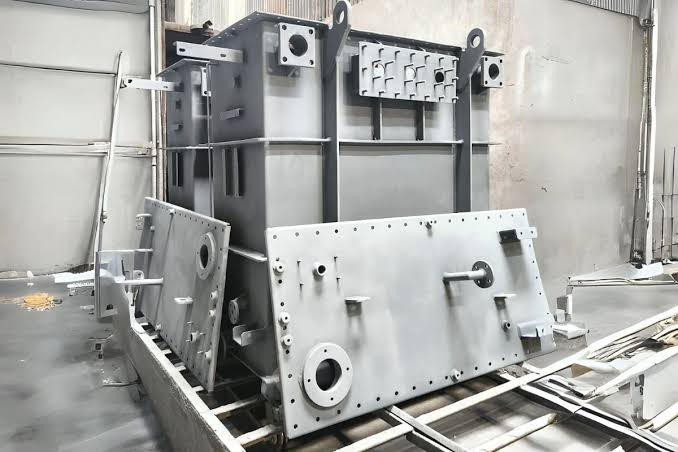

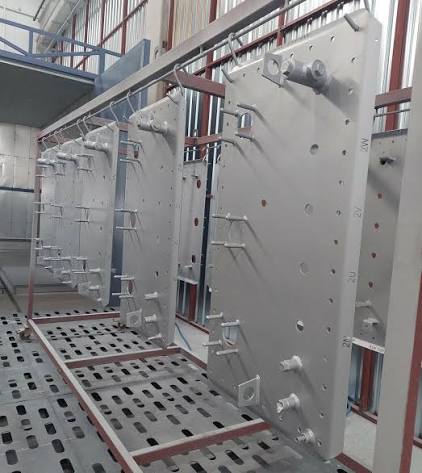

Transformer Tank Covers

Custom transformer tank covers and boiler covers for oil-type transformers from 25 kVA to 10 MVA. High-strength CCR 6112 steel, 5–10 mm thickness, IEC 144 compliant.
Sheet Thickness:
5 mm -10 mm
Welding & Etching:
Precision plasma cutting and welded assembly
power ranges
25 kVA up to 10 MVA
Send E-mail Get Price WhatsApp

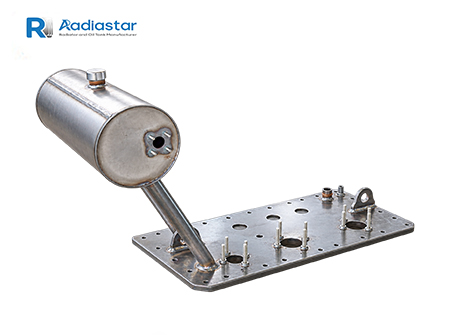

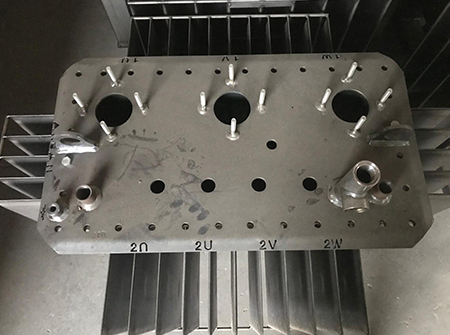

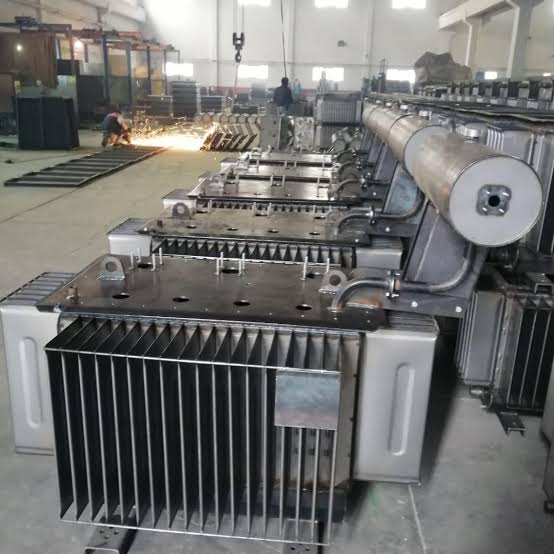

Boiler Cover for Oil-Type Transformers



Specification

Technical Requirement

Material GradeS235JR
Sheet Thickness5–15 mm
Dimension Range600 × 400 – 3000 × 2000 mm
Compatible Transformer Rating25kVA–10MVA
Surface PreparationAbrasive Blasting, Sa 2½ (ISO 8501-1)
Coating SystemEpoxy Primer + Polyurethane Topcoat
Dry Film Thickness (DFT)120 µm

CERTIFIED PATENTS

We hold authoritative international and domestic certifications, ensuring product quality, safety, and compliance with global standards for reliable power solutions.
Certification
Certification
Certification
Certification
Certification
Certification

Get Your Best Price Now

Reach out for a tailored, competitive quote on our reliable power solutions today.
