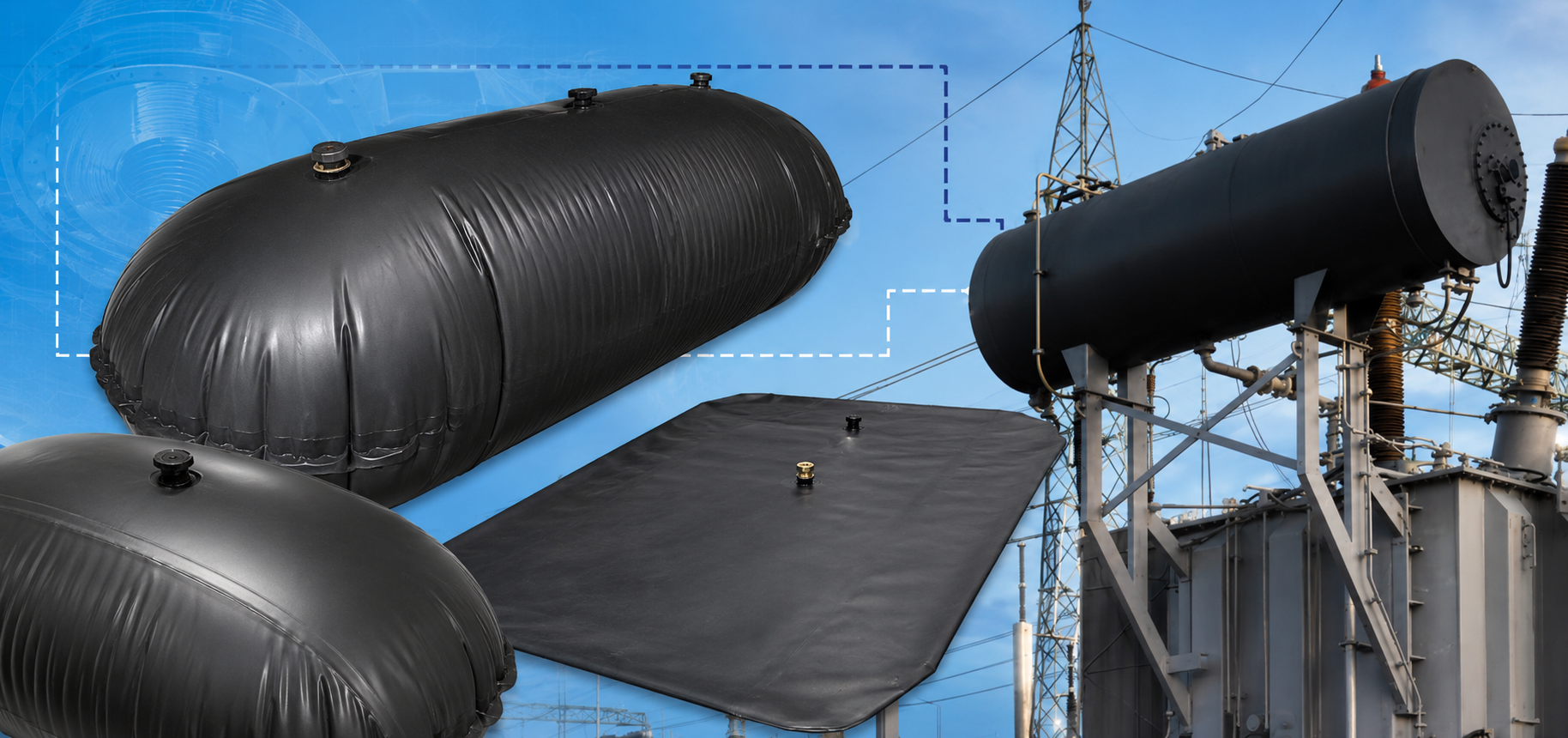

Transformer reliability depends on much more than the windings and insulation. One of the most overlooked yet essential components is the Transformer Conservator Air Cell Bladder, also known as the Conservator Rubber Bag, Oil Conservator Bladder, or Air Separation Bag.
A high-quality conservator bladder protects transformer insulating oil from moisture, oxygen, and contamination, significantly extending transformer service life and reducing maintenance costs.
As a professional transformer accessory manufacturer, Radiastar Factory supplies OEM and replacement conservator bladders for power transformers ranging from distribution transformers to extra-high-voltage substations worldwide.
This guide explains everything engineers, EPC contractors, utilities, and transformer manufacturers need to know before purchasing a conservator bladder.

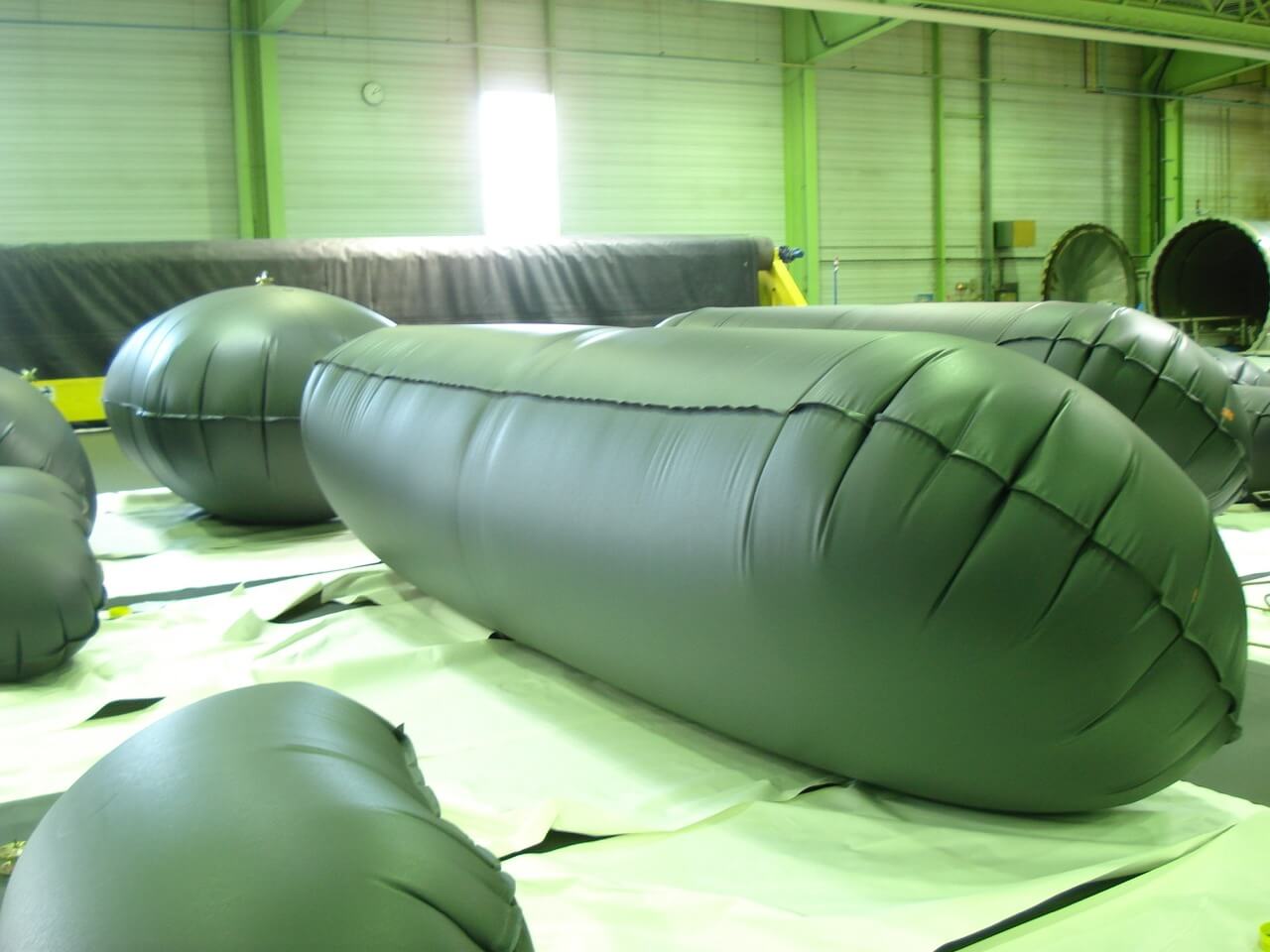

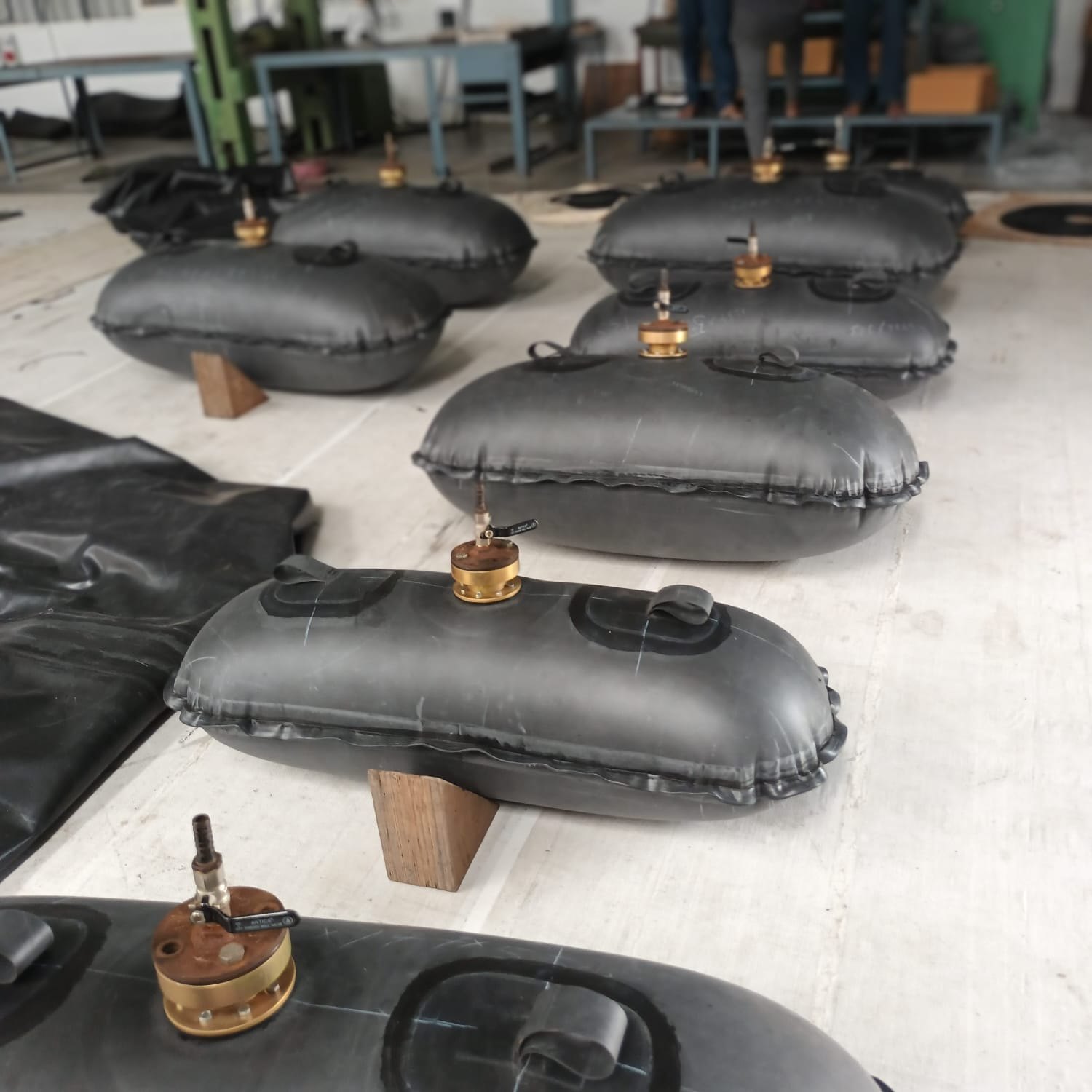

The conservator air cell bladder is an expandable rubber membrane installed inside the transformer conservator tank.
Its function is to separate transformer oil from atmospheric air.
Moisture enters oil.
Oxygen accelerates aging.
Acid value increases.
Dielectric strength decreases.
✔ Oil remains clean
✔ Oxidation is minimized
✔ Transformer lifespan increases
✔ Maintenance intervals become longer
A transformer without a properly functioning bladder faces several operational risks.
Moisture contamination
Water reduces insulation strength.
Oxidation
Air causes rapid oil degradation.
Sludge formation
Oxidized oil forms sludge, restricting cooling.
Paper insulation aging
Moisture accelerates cellulose deterioration.
Increased maintenance cost
Frequent oil filtration and replacement become necessary.
Selecting the right bladder involves more than matching dimensions.
Examples:
50 kVA
500 kVA
10 MVA
40 MVA
220 kV
500 kV
Larger transformers require custom bladder dimensions.
Measure:
Length
Diameter
Flange size
Connection position
Oil volume
Radiastar provides OEM production based on customer drawings.
Mineral Oil
Natural Ester
Synthetic Ester
Silicone Oil
Different oils require different rubber compatibility.
Typical range
-40°C
to
+110°C
High-temperature applications require premium compounds.
Outdoor substations require ozone-resistant materials.
Material selection determines service life.
| Material | Full Name | Abbreviation | Oil Resistance | Typical Operating Temperature* | Typical Applications |
|---|---|---|---|---|---|
| Nitrile Butadiene Rubber | Nitrile Butadiene Rubber | NBR | ★★★★★ | -30°C to +100°C | Most widely used for transformer conservator bladders |
| Hydrogenated Nitrile Butadiene Rubber | Hydrogenated Nitrile Butadiene Rubber | HNBR | ★★★★★ | -40°C to +150°C | Premium applications requiring superior heat and aging resistance |
| Butyl Rubber | Butyl Rubber | IIR | ★★★★☆ | -45°C to +120°C | Excellent air tightness and low gas permeability |
| Chloroprene Rubber | Chloroprene Rubber (Neoprene) | CR | ★★★☆☆ | -35°C to +110°C | General-purpose applications with good weather resistance |
| Fluoroelastomer | Fluoroelastomer | FKM / Viton® | ★★★★★ | -20°C to +200°C | High-end applications with extreme temperature and chemical resistance |
| Ethylene Propylene Diene Monomer | Ethylene Propylene Diene Monomer | EPDM | ★☆☆☆☆ | -50°C to +150°C | Suitable for weather resistance; not recommended for prolonged contact with mineral transformer oil |
| Silicone Rubber | Silicone Rubber | VMQ | ★★☆☆☆ | -60°C to +200°C | Special applications requiring excellent flexibility over a wide temperature range |
| Acrylic Rubber | Acrylic Rubber | ACM | ★★★★☆ | -25°C to +150°C | Moderate oil and heat resistance for specific industrial applications |
| Chlorosulfonated Polyethylene | Chlorosulfonated Polyethylene | CSM (Hypalon®) | ★★★☆☆ | -35°C to +120°C | Outdoor applications requiring excellent weather and ozone resistance |
| Polyurethane Rubber | Polyurethane Rubber | PU | ★★☆☆☆ | -30°C to +90°C | Rarely used for transformer conservator bladders |
Radiastar recommends high-grade NBR for most mineral-oil transformers.
Many buyers search “NBR vs Rubber”, but NBR itself is a type of synthetic rubber.
NBR
Natural Rubber
EPDM
CR
FKM
NBR Advantages
Excellent oil resistance
Low gas permeability
Long service life
High tensile strength
Good flexibility
Affordable price
Natural rubber should generally not be used in transformer conservators because its oil resistance is poor.
Material quality
Temperature
Oil condition
UV exposure
Installation quality
Standard quality
8–10 years
Premium OEM quality
15–20 years
Proper maintenance
20+ years
Radiastar uses high-quality nitrile compounds with strict quality control to maximize service life.

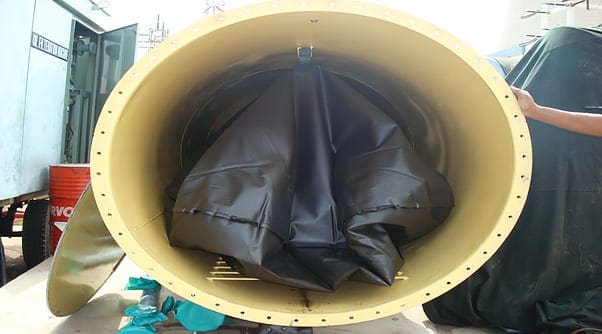

Correct installation is essential.
Clean the conservator tank.
Inspect flange surfaces.
Install the bladder carefully without twisting.
Secure clamps evenly.
Perform air leakage testing.
Fill transformer oil slowly.
Check expansion movement during commissioning.
Routine inspection every 12 months.
Visual inspection
Air leakage
Oil moisture
Oil level
Breather condition
Pressure balance
Any signs of cracking should be investigated immediately.
Usually caused by aging.
Oil leakage
Improper flange installation.
Wrinkling
Incorrect sizing.
Hardening
High temperature.
Swelling
Material incompatible with oil.
Radiastar manufactures OEM replacement bladders compatible with many transformer brands.
ABB
Hitachi Energy
Siemens Energy
CG Power
Hyosung
Hyundai
GE Grid
TBEA
WEG
Wilson Transformer
Efacec
Ormazabal
And custom transformer manufacturers worldwide.
Customer drawing
Sample
Old bladder
Nameplate
Dimensions
Unlike trading companies, Radiastar is a specialized transformer accessory manufacturer.
OEM manufacturing
ISO-certified quality management
Custom mold production
Advanced rubber mixing technology
Pressure and leak testing
Global export experience
Fast delivery
Technical engineering support
Every conservator bladder is tested before shipment to ensure reliable long-term operation.
Power transformers
Distribution transformers
Renewable energy substations
Solar power plants
Wind farms
Industrial substations
Railway traction systems
Mining facilities
Oil & gas projects
Utility grid transformers
What is a transformer conservator bladder?
A flexible rubber membrane that separates insulating oil from atmospheric air to prevent oxidation and moisture contamination.
What material is best?
High-grade NBR is recommended for mineral-oil transformers due to its excellent oil resistance and long service life.
How long does a conservator bladder last?
Typically 15–20 years under normal operating conditions when properly installed and maintained.
Can you manufacture based on samples?
Yes. Radiastar provides OEM production based on samples, drawings, or existing transformer nameplate data.
Do you supply custom sizes?
Yes, all sizes and dimensions can be customized.
Selecting the correct transformer conservator air cell bladder directly impacts transformer reliability, insulation life, and maintenance costs. Choosing the proper material, ensuring accurate dimensions, and purchasing from an experienced OEM manufacturer are essential for long-term performance.
Radiastar Factory provides high-quality, customized conservator bladders for utilities, EPC contractors, and transformer manufacturers worldwide. Whether you need an OEM replacement or a custom-engineered solution, our team is ready to support your project with reliable products, competitive pricing, and technical expertise.
Contact Radiastar Factory
Send us the following information:
Transformer capacity (kVA/MVA)
Conservator dimensions
Drawing or sample (if available)
Oil type
Operating temperature
Quantity required
Our engineering team will recommend the correct conservator bladder and provide a competitive quotation within 24 hours.
