🔷 Introduction

When selecting a transformer cooling solution, one of the most critical decisions is choosing between different oil tank designs.

The Transformer Oil Tank plays a vital role in:

• Cooling efficiency
• Structural durability
• Installation flexibility
• Overall transformer lifespan

Two of the most widely used designs are:

• Corrugated (wave fin) oil tanks
• Radiator-type oil tanks

This article provides a complete technical comparison to help engineers, buyers, and project managers make the right decision.

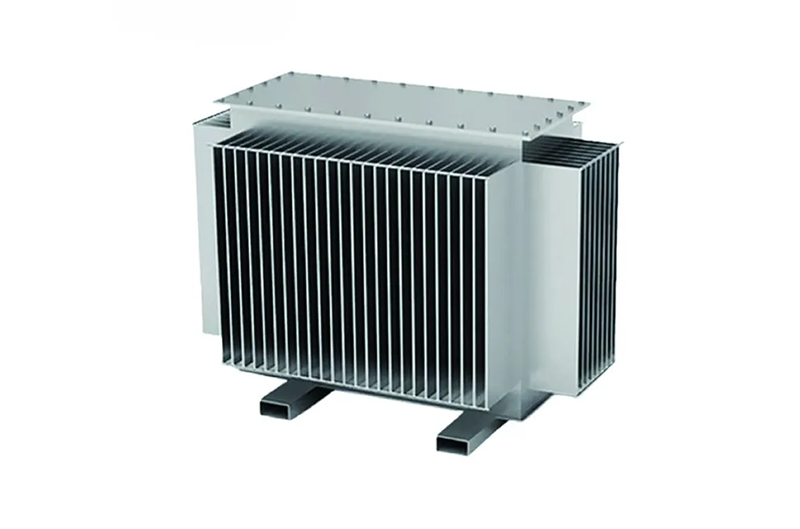

🔷 1. What is a Corrugated Transformer Oil Tank?

A corrugated transformer oil tank is a compact, fin-integrated tank structure widely used in distribution transformers.
Key Features

• Integrated corrugated cooling fins
• Flexible tank wall design
• Fully sealed construction
• No external radiators required

How It Works

The corrugated fins increase the surface area, allowing heat to dissipate naturally into the surrounding air.

🔷 Advantages of Corrugated Transformer Oil Tank

1. Compact and Space-Saving
Corrugated tanks are ideal for:

• Urban substations
• Indoor installations
• Space-limited environments

2. Maintenance-Free Design
Since there are no external radiators:

• No oil leakage points
• Minimal maintenance required
• Lower operational cost

3. Cost-Effective
Compared to radiator tanks:

• Lower manufacturing cost
• Lower installation cost
• Reduced accessories

4. Fully Sealed System

• Prevents moisture ingress
• Protects transformer oil
• Improves insulation reliability

🔷 Limitations of Corrugated Tanks

Limited cooling capacity
Not suitable for very high kVA transformers
Less flexible for upgrades

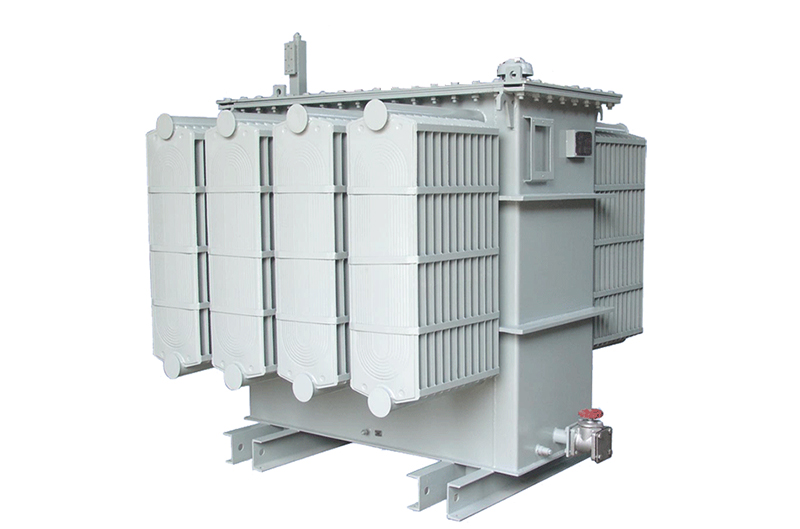

🔷 2. What is a Radiator-Type Transformer Oil Tank?

A radiator-type transformer oil tank uses external cooling radiators to dissipate heat.
These radiators significantly increase the cooling surface area.

Key Features

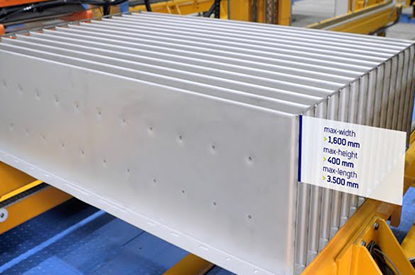

• External radiator panels
• Modular cooling system
• Expandable design
• Higher cooling efficiency

🔷 Advantages of Radiator Transformer Oil Tank

1. Superior Cooling Performance
Radiator tanks provide:

• Faster heat dissipation
• Better temperature control
• Suitable for high-load operations

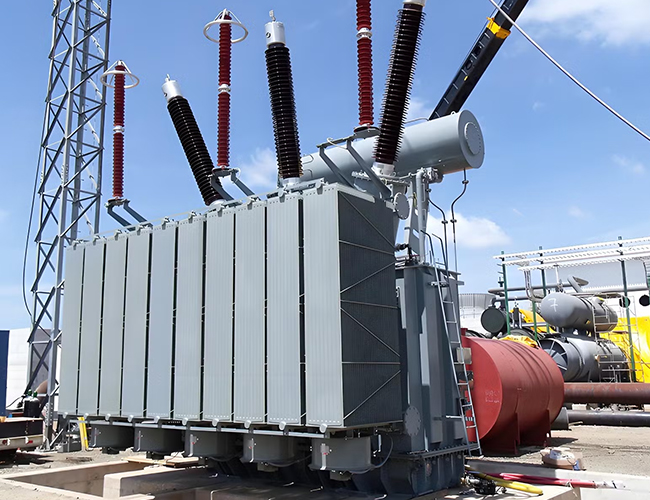

2. Suitable for Large Transformers
Commonly used in:

• Power transformers
• Industrial applications
• High-voltage systems

3. Expandable Design
Radiators can be:

• Added or removed
• Customized for cooling requirements

4. Better for Harsh Conditions
Radiator tanks perform better in:

• High ambient temperatures
• Heavy-load conditions

🔷 Limitations of Radiator Tanks
Higher cost
Larger installation space required
More maintenance points
Potential leakage risks

🔷 3. Direct Comparison: Corrugated vs Radiator Tank

Feature Corrugated Tank Radiator Tank
Cooling Efficiency Medium High
Cost Low High
Maintenance Very Low Medium
Space Requirement Compact Large
Application Distribution transformers Power transformers
Expandability Limited High
Leakage Risk Low Higher (more joints)

🔷 4. Cooling Performance Analysis

Cooling is the most important factor in transformer design.
🔥 Heat Dissipation Differences

• Corrugated tanks rely on natural convection
• Radiator tanks provide enhanced forced surface cooling

Result:
Radiator tanks offer significantly better cooling for large transformers.

🔷 5. Application-Based Selection Guide

Choose Corrugated Tank If:

• Transformer ≤ 2500 kVA
• Limited installation space
• Budget-sensitive project
• Low maintenance required

Choose Radiator Tank If:

• Transformer > 2500 kVA
• High load conditions
• High ambient temperature
• Industrial or power applications

🔷 6. Material & Manufacturing Differences

Both tank types can be manufactured using:

• Carbon steel (Q235/Q345)
• Galvanized steel
• Stainless steel

However:

• Corrugated tanks require precision forming

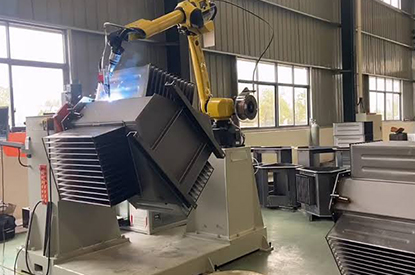

• Radiator tanks require welding and modular assembly

🔷 7. Cost Comparison

Corrugated Tank Cost Factors:

• Lower material usage
• Simpler structure
• Lower labor cost

Radiator Tank Cost Factors:

• Additional radiator units
• More complex manufacturing
• Higher transportation cost

🔷 8. Installation Differences

Corrugated Tank:

• Easy installation
• No external components
• Faster setup

Radiator Tank:

• Requires radiator assembly
• Needs more installation space
• More complex logistics

🔷 9. Maintenance Considerations

Corrugated Tank:
Minimal maintenance
Fewer failure points
Radiator Tank:
Requires periodic inspection
Risk of oil leakage at joints

🔷 10. Custom Design Capabilities

A professional Transformer Oil Tank Manufacturer can provide:

• Custom dimensions
• Fin/radiator configuration
• Surface treatment
• OEM/ODM solutions

🔷 11. Industry Trends

Modern transformer oil tank design is evolving toward:

• Lightweight structures
• Improved cooling efficiency
• Modular radiator systems
• Environmentally friendly materials

🔷 12. Which One Should You Choose?

👉 The choice depends on:

• Transformer capacity
• Project budget
• Cooling requirements
• Installation environment

🔷 Frequently Asked Questions (FAQ)

Q1: Which tank is more efficient?
A: Radiator tanks provide better cooling efficiency.

Q2: Which is more cost-effective?
A: Corrugated tanks are more economical.

Q3: Which requires less maintenance?
A: Corrugated tanks require minimal maintenance.

Q4: Can corrugated tanks be used for large transformers?
A: Generally not recommended beyond 2500 kVA.

Q5: Can radiator tanks be customized?
A: Yes, radiator tanks are highly customizable.
