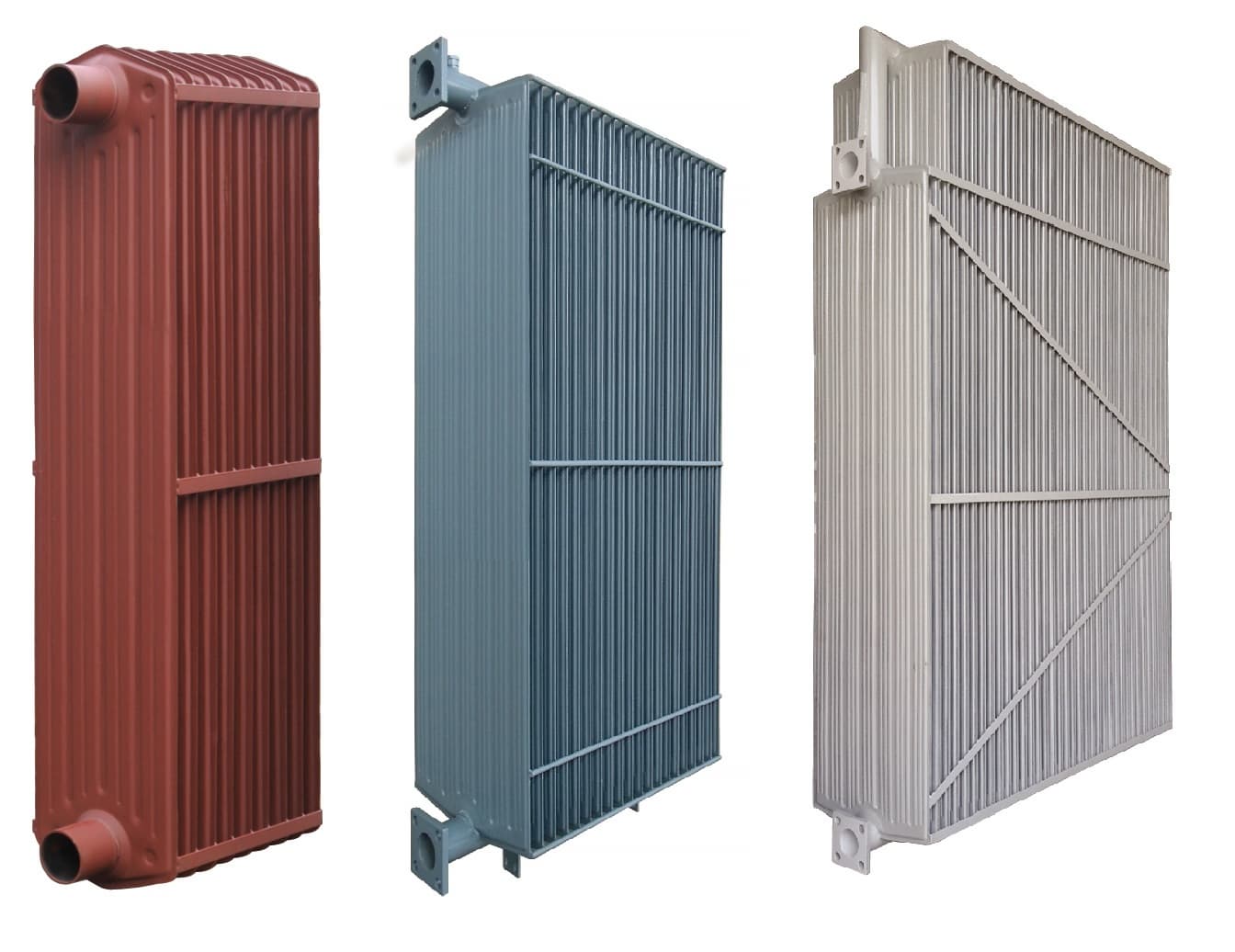

A 310mm width transformer radiator is a pressed steel cooling panel designed for oil-filled transformers. Each radiator panel contains internal oil channels that circulate transformer oil naturally or through forced cooling systems.
As transformer oil heats up, it flows into the radiator where heat is transferred to the surrounding air before returning to the transformer tank. This continuous cycle maintains the transformer’s operating temperature within a safe range.
Compared with custom radiator widths, the 310mm panel has become an industry-standard dimension because it provides an excellent balance between cooling capacity, manufacturing efficiency, and installation flexibility.
The optimized panel spacing increases the cooling surface area, allowing efficient heat transfer while maintaining compact dimensions.
Since 310mm is a common industry standard, production is highly efficient, resulting in shorter lead times and competitive pricing.
Manufactured from high-quality cold-rolled steel using precision stamping and automated welding, these radiators provide excellent structural integrity.
Standard flange connections simplify installation on new transformers and replacement of existing radiator banks.
Advanced surface treatment, phosphating, and powder coating improve corrosion resistance for outdoor environments.
Electric utilities are the largest users of 310mm transformer radiators.
Applications include:
These projects require reliable cooling performance and standardized components that simplify maintenance.
As solar and wind installations continue expanding worldwide, oil-filled transformers remain essential for voltage conversion.
Typical applications include:
Reliable radiator performance helps transformers operate efficiently under varying load conditions.
Industrial facilities often operate transformers continuously under heavy loads.
Industries include:
Stable transformer temperatures improve operational reliability and reduce downtime.
Mining environments expose transformers to dust, vibration, and high ambient temperatures.
310mm radiators are suitable for:
Their robust construction ensures dependable cooling even in harsh conditions.
Oil and gas facilities require transformers capable of operating continuously.
Applications include:
High-quality radiator welding and leak-proof construction are especially important in these demanding environments.
Modern data centers require highly reliable electrical infrastructure.
Power transformers equipped with efficient radiator systems help ensure:
Railway systems rely on transformers for traction power and distribution.
Common projects include:
Standard radiator dimensions simplify maintenance and spare parts management.
Large commercial facilities often use medium- and high-capacity transformers.
Examples include:
Reliable transformer cooling minimizes operational interruptions.
Although radiator selection depends on thermal calculations, 310mm width panels are commonly used on:
| Transformer Capacity | Typical Application |
|---|---|
| 100 kVA–630 kVA | Distribution Transformers |
| 800 kVA–2500 kVA | Industrial Transformers |
| 3 MVA–10 MVA | Power Transformers |
| 10 MVA–63 MVA | Utility Transformers |
| Larger Transformers | Multiple Radiator Banks |
Actual radiator quantity depends on transformer losses, ambient temperature, cooling method, and customer specifications.
310mm transformer radiators support various transformer cooling systems.

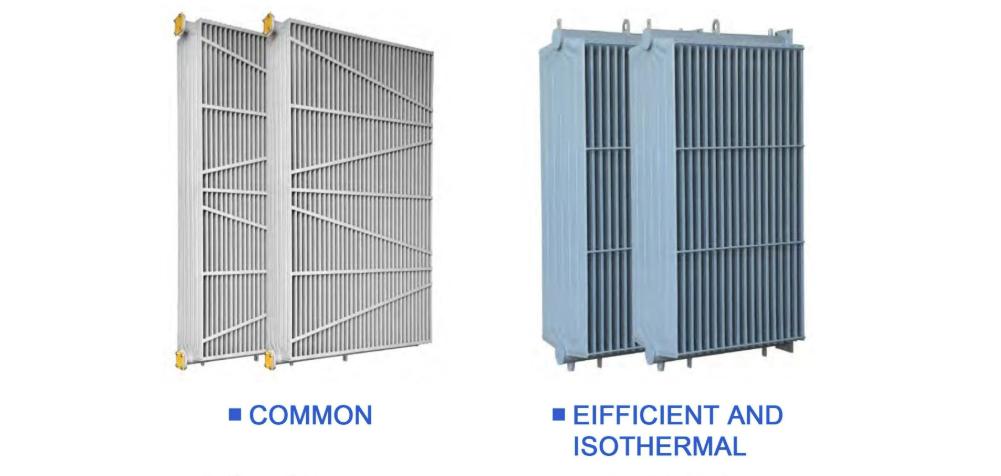

Oil Natural Air Natural
The most common cooling method for distribution transformers.
Oil Natural Air Forced
Cooling fans increase heat dissipation during peak loads.
Oil Forced Air Forced
Oil pumps and cooling fans provide enhanced cooling for high-capacity transformers.
High-quality transformer radiators are typically manufactured using:
Each production stage helps ensure long-term reliability.
Before placing an order, buyers should provide:
Providing complete technical information enables accurate thermal design and quotation.
Working directly with an experienced manufacturer offers several advantages:

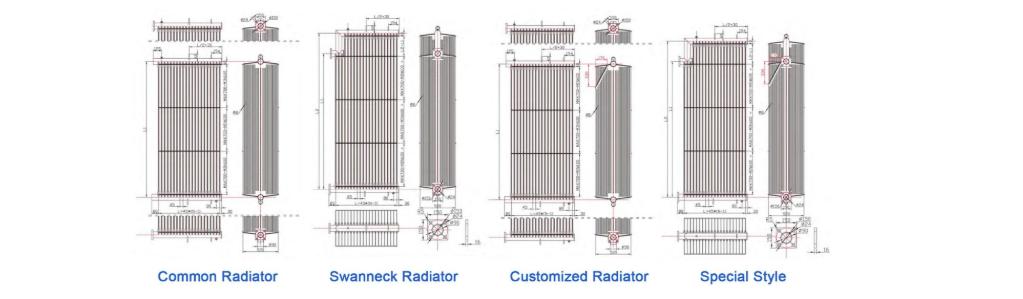

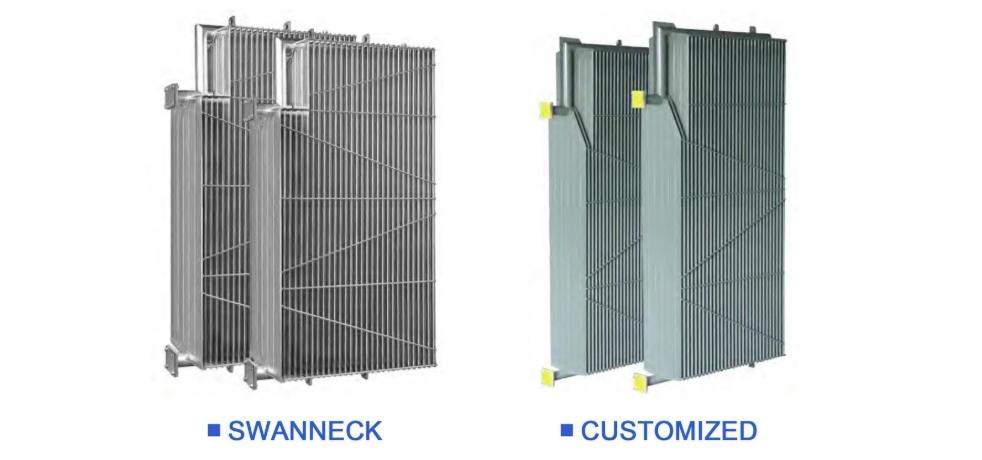

Professional manufacturers can also customize radiator dimensions, flange positions, coatings, and cooling configurations to match specific transformer designs.
No. The correct radiator size depends on transformer losses, capacity, cooling method, and environmental conditions.
Yes. Most manufacturers offer customized radiator heights, panel quantities, flange spacing, and connection sizes.
Quality manufacturers typically design and manufacture radiators according to IEC requirements and customer specifications.
Yes. Many radiator systems are designed for future fan installation if transformer loading increases.
The 310mm width transformer radiator has become one of the most widely adopted cooling solutions for oil-immersed transformers because it combines excellent heat dissipation, standardized production, cost efficiency, and long-term reliability.
From utility substations and renewable energy projects to industrial plants, mining operations, railways, and commercial infrastructure, this radiator size supports a wide range of transformer applications across global markets.
If you are sourcing transformer radiators for a new project or replacement program, partnering with an experienced manufacturer ensures you receive the right thermal design, reliable quality, and customized solutions that meet your project’s technical requirements.
