Introduction
Optimizing transformer performance is critical for industrial and utility-scale power systems. Innovations in transformer oil tanks and radiator systems significantly enhance cooling efficiency, reduce energy losses, and increase lifespan. This guide explores these technologies and their practical applications.

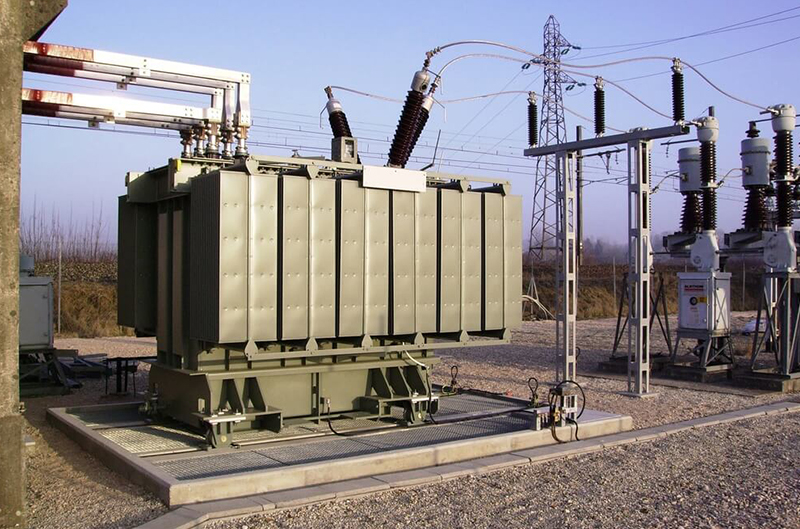

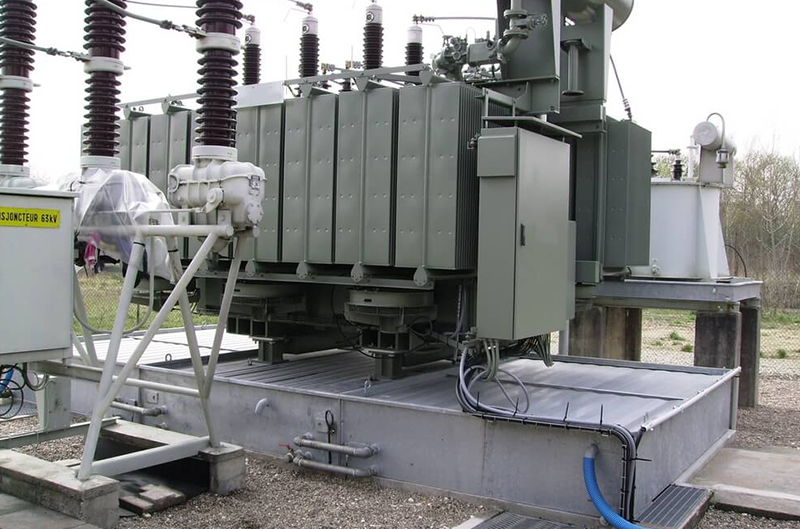

Transformer Oil Tank Innovations
- Corrugated tanks for thermal expansion
- Sealed tanks for contamination prevention
- Smart monitoring and alarms
- Materials: stainless steel, high-durability coatings

Radiator Innovations
- High-efficiency fins (beveled, goose-neck, straight)
- Hybrid cooling solutions
- Optimized fin spacing and geometry for maximum heat transfer
- Corrosion-resistant materials for long-term operation
Combined Impact on Power Efficiency
- Reduced temperature rise ensures insulation longevity
- Lower energy loss due to stable operating temperatures
- Minimizes unplanned maintenance and downtime
- Supports larger transformer loads without overheating
Example Table: Cooling & Efficiency Comparison
| Transformer kVA | Tank Type | Radiator Type | Efficiency Gain (%) |
| 500 | Corrugated | Straight Fin | 8 |
| 1000 | Sealed | Goose-neck Fin | 12 |
| 2000 | Waveform | Beveled Corner Fin | 15 |
Design & Customization
- Match oil volume and radiator fin configuration to kVA
- Consider environment: heat, humidity, coastal, or industrial
- Smart sensors for remote monitoring and automated alarms
Installation & Maintenance
- Proper tank and radiator alignment
- Regular inspection of oil, fins, and valves
- Use smart monitoring to reduce manual checks
