Radiastar is a professional Corrugated Transformer Tank Manufacturer specializing in the design, manufacturing, and supply of hermetically sealed oil-immersed transformer tanks for distribution transformers and power transformers.
With advanced manufacturing technology, strict quality control systems, and customized OEM capabilities, Radiastar supplies high-performance transformer tanks for transformer manufacturers, utilities, EPC contractors, and electrical equipment distributors worldwide.
Our corrugated transformer tanks are widely used for:
Available capacity range:
50kVA to 3150kVA
Voltage range:
Up to 35kV

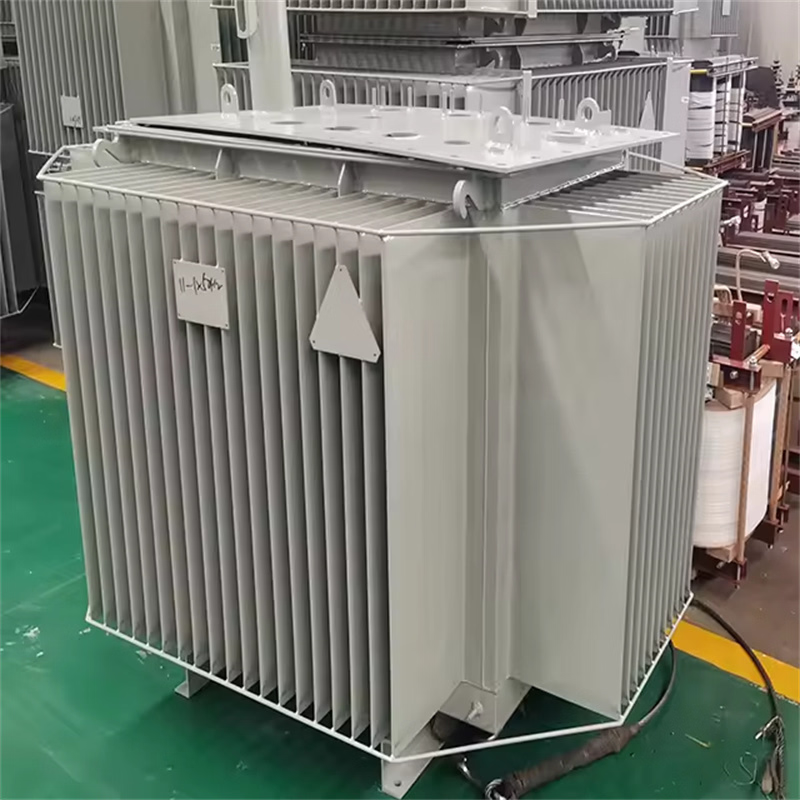

A corrugated transformer tank is a specially designed oil-filled transformer enclosure with corrugated steel walls that provide both:
Unlike traditional flat-wall transformer tanks, corrugated fin tanks use formed steel panels to improve cooling efficiency while reducing overall transformer size.
The corrugated structure allows transformer oil expansion and contraction caused by temperature changes, making it ideal for hermetically sealed transformers without conservators.

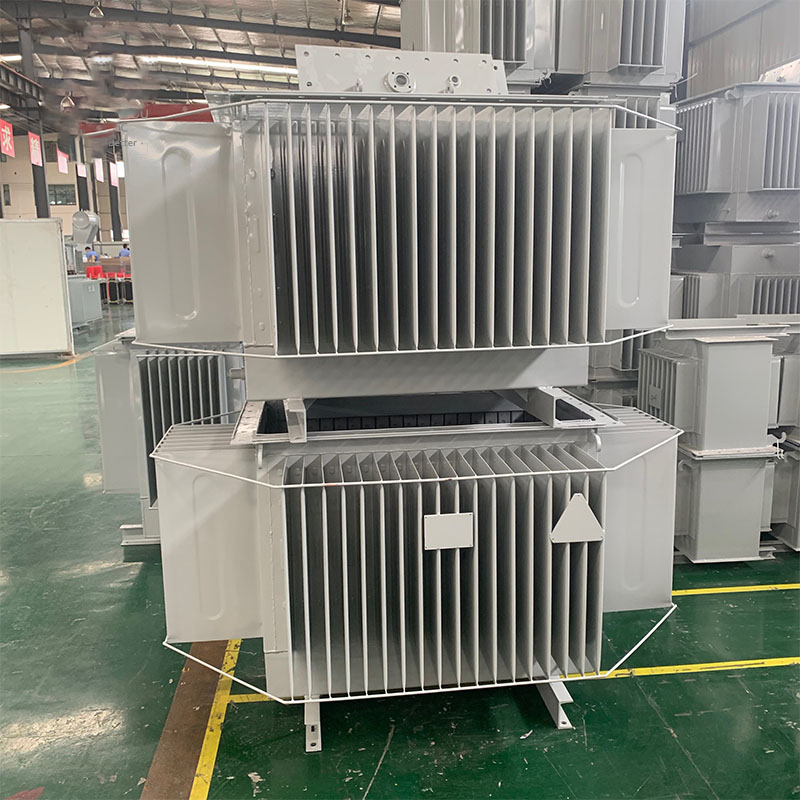

As an experienced transformer tank manufacturer, Radiastar provides complete production solutions from raw material preparation to finished tank assembly.
Transformer tanks are manufactured using premium low-carbon steel plates with excellent:
Common materials:
The corrugated panels are produced through precision hydraulic forming equipment.
Advantages:
Typical corrugation designs:
Radiastar uses advanced welding processes including:
Benefits:
Each transformer tank undergoes:
before shipment.
Transformer tanks operate outdoors for decades, so corrosion protection is a critical factor.
Radiastar provides multi-layer anti-corrosion treatment according to customer requirements.
Typical protection structure:
Sand blasting:
Sa 2.5 grade
Removal of:
Epoxy zinc-rich primer:
Epoxy intermediate layer:
Polyurethane finishing paint:
Advantages:
Radiastar transformer tanks can be customized for different environments:
| Environment | Recommended Protection |
|---|---|
| Indoor application | Standard coating |
| Normal outdoor | C3 protection |
| Coastal area | C4 protection |
| High humidity / marine environment | C5 protection |
Optional:
Radiastar selects materials according to transformer design requirements.
| Component | Material |
|---|---|
| Tank wall | Q235B / Q345B steel |
| Corrugated fins | Cold rolled steel plate |
| Cover plate | Carbon steel |
| Reinforcement parts | Structural steel |
Compatible sealing materials include:
Suitable for:

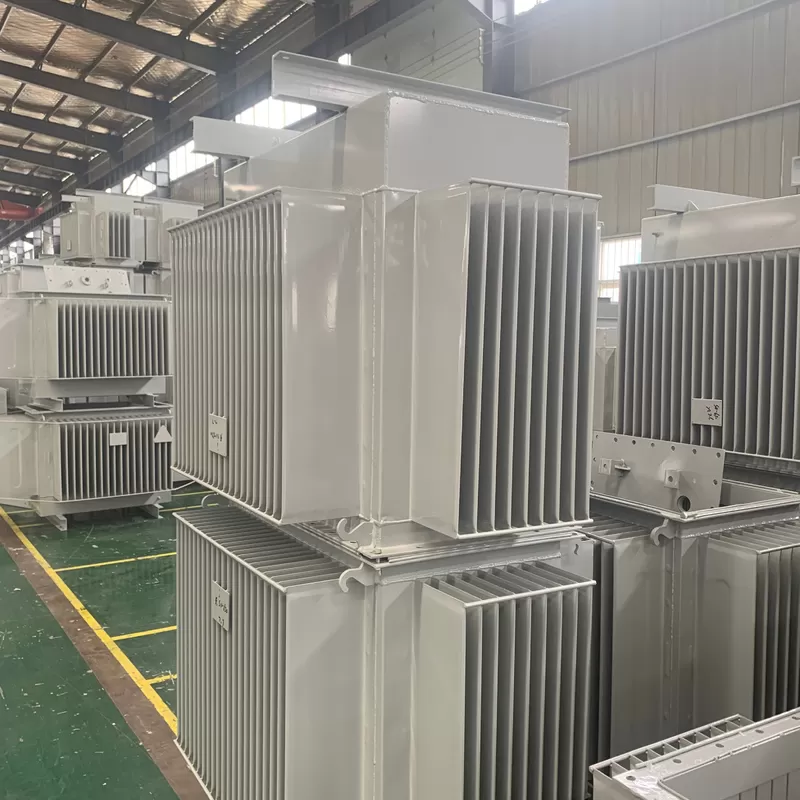

Radiastar hermetically sealed transformer tanks provide:
Advantages:
The corrugated wall design compensates for:
Large surface area corrugated fins provide:
| Item | Specification |
|---|---|
| Product Type | Corrugated Transformer Tank |
| Application | Oil Immersed Transformer |
| Capacity Range | 50kVA–3150kVA |
| Voltage Level | 6kV / 10kV / 11kV / 20kV / 33kV / 35kV |
| Frequency | 50Hz / 60Hz |
| Cooling Type | ONAN |
| Tank Type | Hermetically Sealed |
| Material | Q235B / Q345B Steel |
| Surface Treatment | Sa2.5 Sand Blasting |
| Painting System | Epoxy + Polyurethane |
| Corrosion Grade | C3 / C4 / C5 |
| Oil Type | Mineral Oil / Ester Oil |
| Manufacturing | OEM Customized |
Radiastar supports customized transformer tank manufacturing according to:
Customization options:
✔ Tank dimensions
✔ Corrugated fin height
✔ Fin quantity
✔ Steel thickness
✔ Painting system
✔ Flange design
✔ Bushing arrangement
✔ Lifting structure
Radiastar focuses on transformer components manufacturing with experience in:
Every transformer tank is inspected through:
Radiastar supplies transformer tank solutions for:
A corrugated transformer tank uses formed steel fins to increase cooling surface area and provide oil expansion capability, while conventional tanks usually require additional radiators or conservators.
Corrugated transformer tanks are commonly used for:
50kVA, 100kVA, 160kVA, 250kVA, 400kVA, 630kVA, 1000kVA, 1600kVA, 2500kVA and 3150kVA transformers.
Yes. Radiastar provides OEM transformer tank manufacturing based on customer drawings and transformer specifications.
Radiastar provides C3, C4, and C5 anti-corrosion coating systems suitable for indoor, outdoor, coastal, and harsh environments.
Looking for a reliable Corrugated Transformer Tank Manufacturer?
Radiastar provides:
Send us your transformer specifications, drawings, or required capacity.
Get your customized transformer tank quotation today.
