Corrugated Transformer Oil Tank

1. What is a 10kV Corrugated Transformer Oil Tank?

A 10kV corrugated transformer oil tank is an engineered enclosure that houses insulating oil within a medium-voltage transformer operating at 10kV. The tank ensures:

• Electrical Insulation: Separates windings and core from electrical faults.
• Cooling: Circulates oil to absorb heat and prevent overheating.
• Protection: Shields sensitive components from environmental and mechanical damage.
• Structural Integrity: Corrugated walls allow for thermal expansion without compromising tank stability.

Corrugated designs have become a standard for modern transformers due to their enhanced heat dissipation, mechanical strength, and resilience against oil pressure changes.

2. Key Features of Radiastar 10kV Oil Tanks

2.1 High-Quality Steel Construction

• Built from premium-grade steel for long-term durability.
• Resistant to corrosion, moisture, and UV exposure.
• Suitable for outdoor substation environments.

2.2 Corrugated Wall Design

• Allows for thermal expansion of insulating oil.
• Improves mechanical strength during transport and installation.
• Increases heat dissipation efficiency, improving transformer reliability.

2.3 Optimal Insulation and Cooling

• Large oil volume ensures uniform cooling.
• Supports both natural convection and forced circulation cooling methods.
• Reduces transformer downtime by preventing overheating.

2.4 Customizable Dimensions

• Radiastar offers bespoke tank sizes, shapes, and lifting arrangements.
• Designed to match the transformer’s operational and site-specific requirements.

2.5 Environmental Adaptation

• Suitable for C1–C5 climatic zones including tropical, desert, and coastal environments.
• Can withstand extreme temperatures, high humidity, and corrosive conditions.

2.6 Compliance and Safety

• Meets IEC 60076 and ANSI C57 standards.
• Features reinforced lifting lugs, secure sealing, and inspection hatches.
• Designed for safe handling and operation during installation and service.

3. Applications in Power Distribution and Industry

Radiastar 10kV corrugated oil tanks are widely used in several sectors:

1. Utility Substations: Stable electricity distribution to residential, commercial, and industrial areas.
2. Industrial Plants: Factories and chemical plants require medium-voltage transformers with robust oil tanks.
3. Renewable Energy: Solar, wind, and hydroelectric installations utilize 10kV transformers for energy conversion.
4. Urban Infrastructure: Smart grids and city-wide energy management rely on reliable transformer enclosures.
5. Railway Systems: Electrified railways and metro networks use these tanks for consistent medium-voltage power.

4. Advantages of Corrugated Transformer Oil Tanks

• Thermal Expansion Management: Corrugated walls absorb expansion without leaks.
• Enhanced Cooling: Larger surface area improves natural air convection.
• Mechanical Strength: Resistant to external forces during handling.
• Reduced Maintenance: Lower risk of structural damage and oil leakage.
• Long-Term Reliability: Supports consistent performance over decades.

5. Technical Specifications Table

6. Transportation and Installation Guidelines

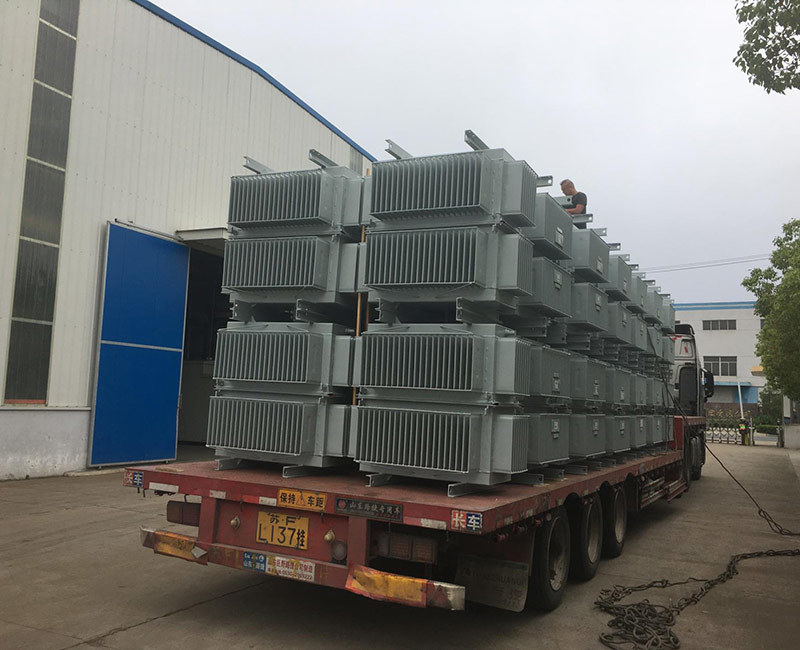

6.1 Transportation

• Use low-bed trucks or heavy-duty trailers.
• Reinforced lifting lugs and chains prevent damage during transit.
• Proper handling ensures the tank arrives intact and ready for installation.

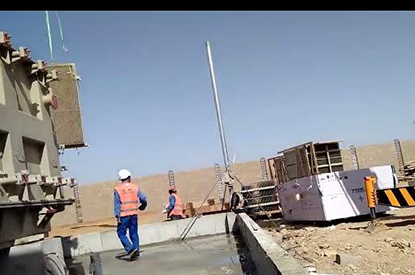

6.2 Installation

• Prepare a leveled foundation matching tank dimensions.
• Use cranes to lift and align tanks accurately.
• Verify sealing and oil filling procedures per IEC and ANSI standards.

6.3 Safety Considerations

• Inspect lifting points before transport.
• Avoid sharp impacts and improper positioning.
• Follow guidelines for oil handling and environmental safety.

7. Maintenance and Best Practices

1. Oil Testing: Regularly check dielectric strength, moisture, and contamination.
2. Visual Inspection: Monitor for corrosion, cracks, or leaks.
3. Radiator Cleaning: Keep heat-dissipating surfaces free of debris.
4. Seal Integrity: Ensure all gaskets and covers are tightly secured.
5. Temperature Monitoring: Prevent overheating and prolong transformer life.

Regular maintenance ensures continuous efficiency and reduces operational costs.

8. Frequently Asked Questions (FAQs)

Q1: Why choose a corrugated oil tank over a flat-wall tank?

• Corrugated walls absorb oil expansion, improve mechanical strength, and enhance heat dissipation.

Q2: Can these tanks be customized?

• Yes, Radiastar offers custom shapes, sizes, lifting arrangements, and colors based on client drawings.

Q3: What standards do these tanks comply with?

• IEC 60076 and ANSI C57.

Q4: Are these tanks suitable for extreme climates?

• Yes, they are designed for C1–C5 climatic zones, including tropical, desert, and coastal regions.

Q5: How is installation handled?

• Tanks are lifted with cranes onto prepared foundations, filled with oil, and inspected for sealing.

9. Case Studies and Global Applications

• Southeast Asia Urban Distribution: Provided reliable 10kV transformers in high-density areas.
• European Industrial Park: Delivered customized oil tanks supporting 31.5 MVA transformers.
• African Solar Farm: Installed corrugated tanks for renewable energy transformers.
• Middle East Electrified Railway: Ensured consistent power supply with robust oil tank solutions.

10. Conclusion

The Radiastar 10kV Corrugated Transformer Oil Tank is a superior solution for medium-voltage transformer applications. Combining durability, thermal efficiency, and international standards compliance, it ensures reliable operation for utilities, industrial facilities, renewable energy installations, and rail systems.

With customizable designs, secure transport, and proven maintenance practices, Radiastar provides the ultimate solution for 10kV transformer oil tanks.
