1. About Radiastar Transformer Tanks

Radiastar transformer tanks are designed for durable performance and optimal insulation. They store and circulate insulating oil to maintain core and winding efficiency while providing mechanical protection against external forces. Radiastar ensures compliance with IEC and ANSI standards for global deployment.

With a focus on customization, Radiastar offers tanks for a wide range of voltages and capacities, from 10kV to 132kV and 3MVA to 100MVA transformers.

2. Types of Transformer Tanks

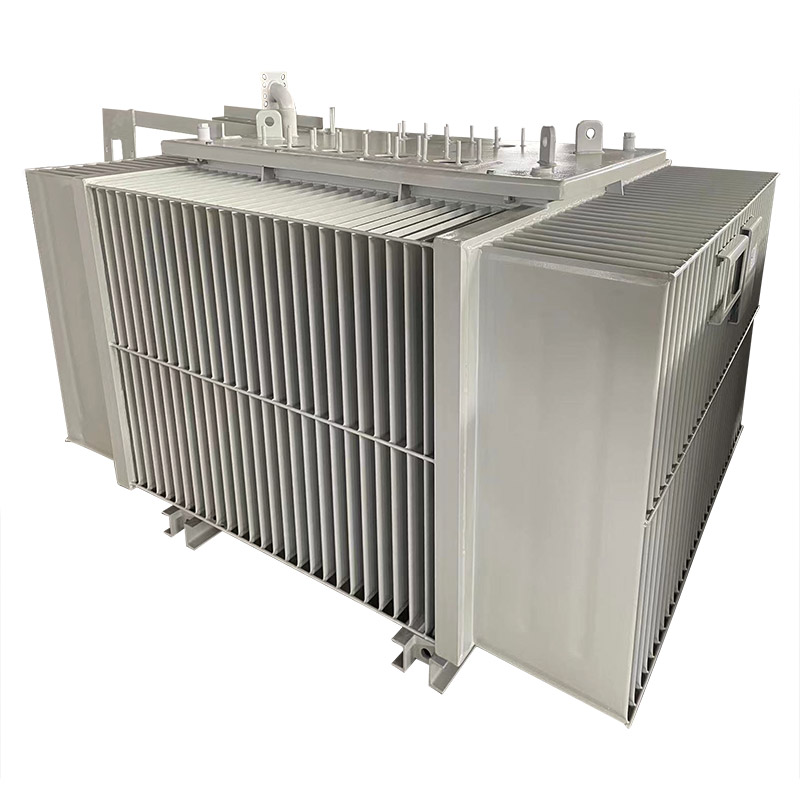

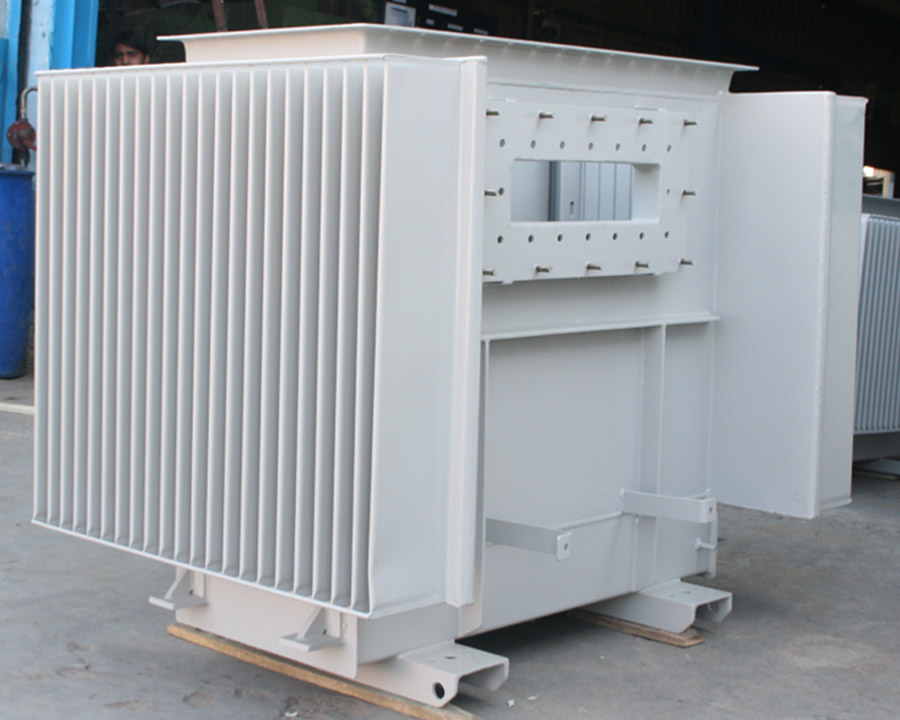

2.1 Corrugated Transformer Tanks

Corrugated walls enhance mechanical strength and thermal performance, allowing the oil to expand safely. Key benefits include:

• Improved cooling due to increased surface area
• Absorption of oil expansion and contraction
• Reduced maintenance and longer lifespan
• Suitable for high-performance 10kV–33kV transformers

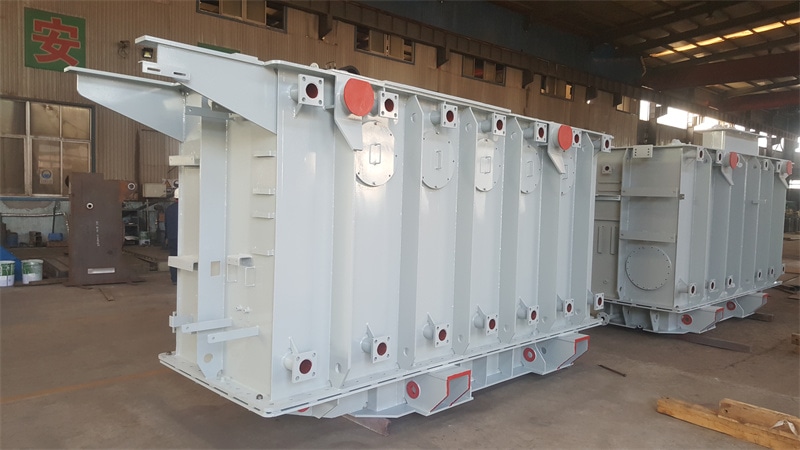

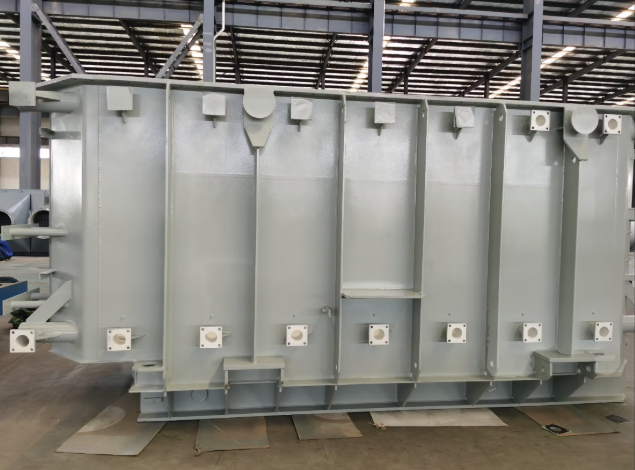

2.2 Conventional Transformer Tanks

Conventional tanks feature flat walls and robust steel construction. Benefits include:

• Cost-effective manufacturing
• Ideal for standard industrial applications
• Supports natural or forced oil circulation for cooling
• Compatible with various medium-voltage transformer models

3. Key Features and Benefits

• Durable Steel Construction: Corrosion-resistant and long-lasting
• Customizable Dimensions: Tailored to transformer specifications
• Efficient Oil Cooling: Optimized design for uniform heat distribution
• Reinforced Lifting Points: Safe transport and installation
• Environmental Adaptation: Suitable for C1–C5 climates
• Compliance: IEC 60076, ANSI C57

4. Radiastar Manufacturing Process

4.1 3D Design and Planning

• Each tank is modeled in 3D to ensure precise dimensions
• Simulations optimize oil flow, thermal distribution, and structural integrity

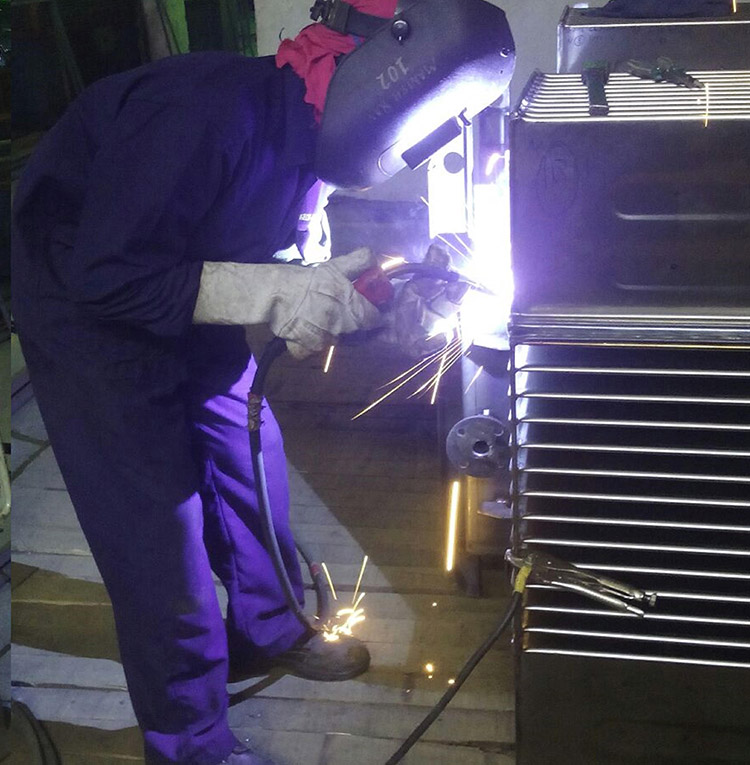

4.2 Precision Cutting and Welding

• Advanced CNC machines cut steel sheets
• Skilled welding ensures leak-proof and strong joints
• Corrugated or flat walls are formed according to design requirements

4.3 Leak Testing and Surface Treatment

• Tanks undergo hydraulic and vacuum testing to verify oil tightness

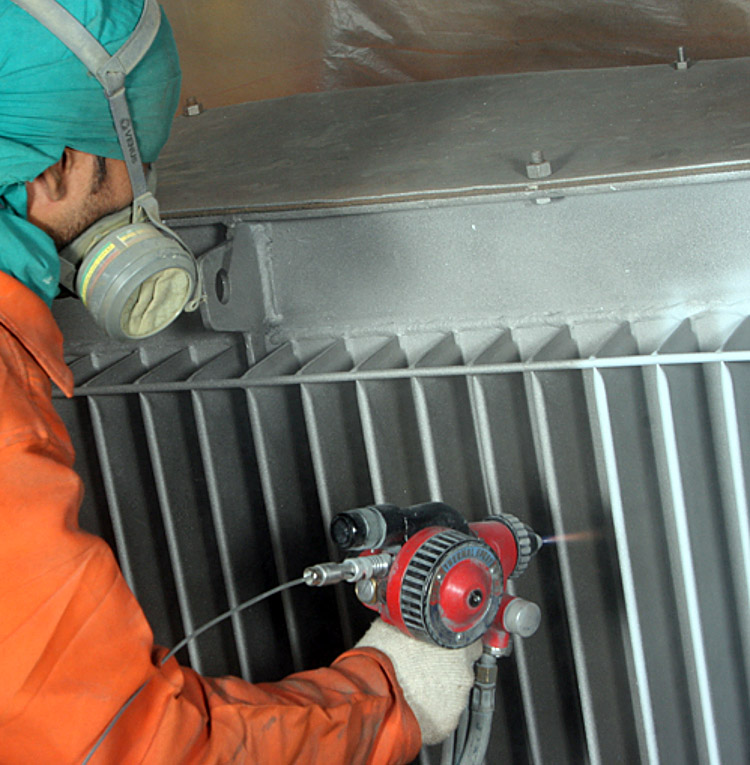

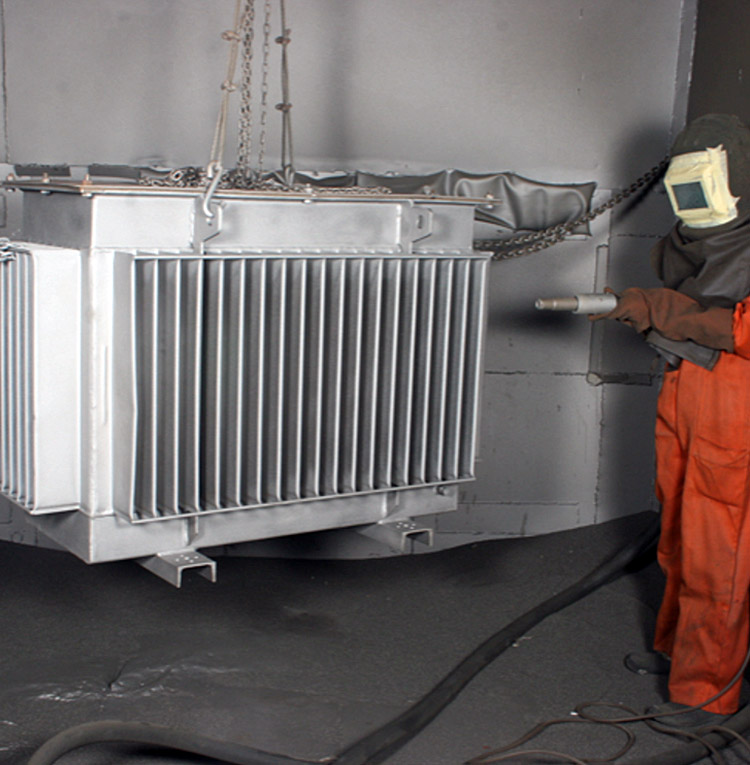

• Surface treatment includes sandblasting, primer, and paint coating for durability
• Optional epoxy or powder coatings for enhanced corrosion resistance

4.4 Pre-Dispatch Inspection

• Dimensional verification
• Functional testing for lifting and mounting
• Quality assurance before global shipment

5. Applications in Power Distribution and Industry

Radiastar transformer tanks are used across multiple sectors:

• Utility Substations: Residential, commercial, and industrial power distribution
• Industrial Plants: Factories, refineries, and chemical facilities
• Renewable Energy Projects: Solar farms, wind parks, and hydroelectric plants
• Urban Infrastructure: Smart grids and city-wide electrical systems
• Railway and Metro Systems: Electrified rail networks requiring medium-voltage transformers

6. Technical Specifications

7. Maintenance Best Practices

• Regular oil testing for dielectric strength and contamination
• Visual inspections for corrosion or leakage
• Cleaning radiators for optimal cooling
• Checking seals and gaskets for integrity
• Temperature monitoring to prevent overheating

8. Case Studies

• Southeast Asia Substations: 10kV corrugated tanks deployed for urban electricity distribution
• European Industrial Projects: Custom 31.5MVA tanks for manufacturing facilities
• African Solar Farms: Transformer oil tanks for renewable energy efficiency
• Middle East Railways: Reliable medium-voltage power supply for electrified transit systems

9. Conclusion

Radiastar transformer tanks combine durability, efficiency, and compliance to provide high-performance solutions for medium and high-voltage transformers. With customization, proven quality, and global application experience, Radiastar is the trusted choice for utility, industrial, and renewable energy projects.
