A 310mm transformer radiator is one of the most widely used cooling components for oil-immersed distribution transformers and medium-power transformers. Designed to efficiently dissipate heat generated by transformer oil circulation, the 310mm radiator improves thermal performance, extends transformer service life, and enhances operational reliability.
As a professional OEM transformer radiator manufacturer, we produce 310mm corrugated transformer radiators, pressed steel radiator panels, and hot-dip galvanized (HDG) transformer radiators for customers worldwide.
Whether you are manufacturing new transformers or replacing existing cooling panels, our 310mm transformer radiators are engineered to meet IEC, ANSI, and customer-specific requirements.

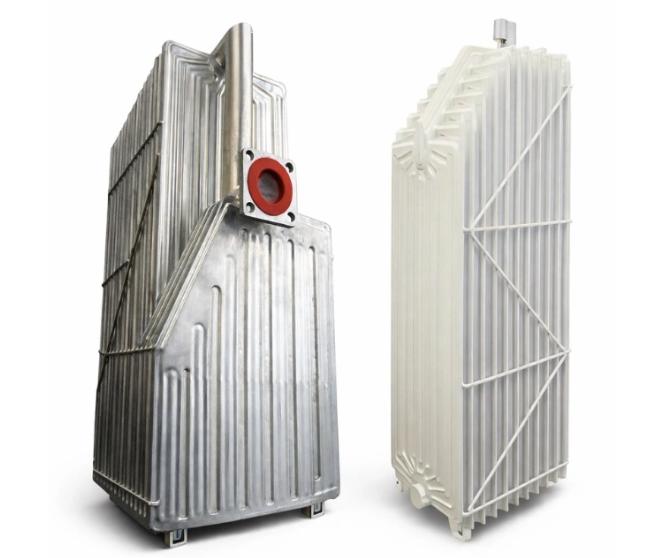

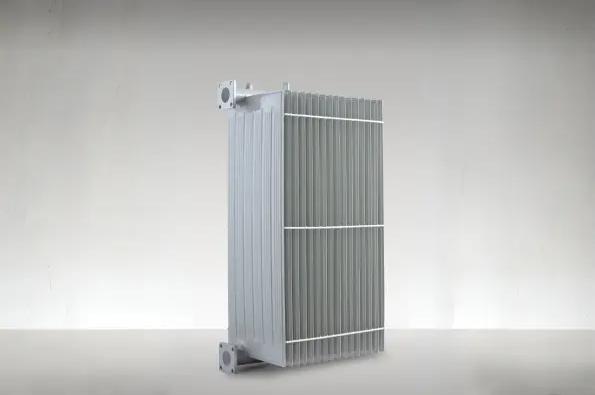

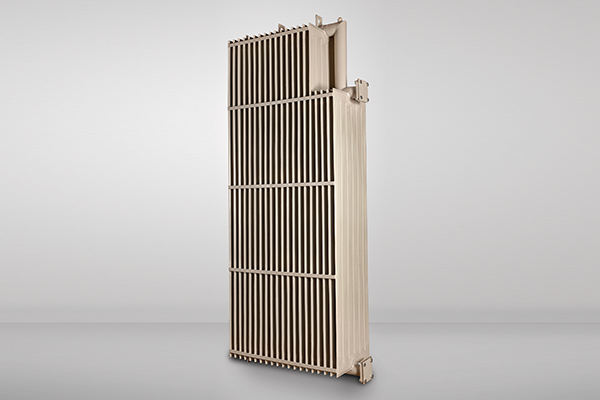

A 310mm transformer radiator is a pressed steel cooling panel with a 310 mm panel width, welded into an oil-tight radiator assembly.

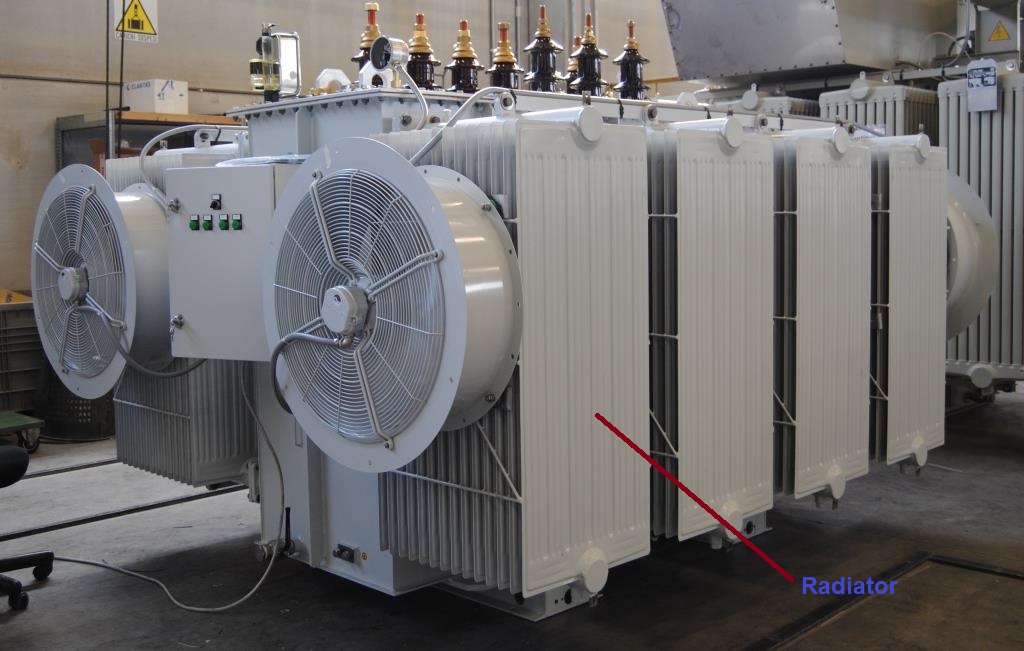

The radiator is connected to the transformer tank through flanges, allowing hot insulating oil to circulate naturally or by forced cooling.
Its primary functions include:
| Parameter | Typical Value |
|---|---|
| Panel Width | 310 mm |
| Panel Height | Custom (500–3000 mm) |
| Material | Cold Rolled Steel |
| Surface Treatment | Powder Coated / HDG |
| Cooling Type | ONAN / ONAF |
| Working Medium | Transformer Oil |
| Pressure Test | Up to 0.8 MPa |
| Connection | Flange Type |
| Leak Test | 100% Tested |
| Manufacturing Standard | IEC Standards |
The corrugated fin design increases the heat transfer area, allowing transformer oil to release heat rapidly into the surrounding air.
Every radiator undergoes:
This ensures long-term sealing performance.
Surface treatments include:
Suitable for:
Available options include:
The 310mm transformer radiator is widely used in:

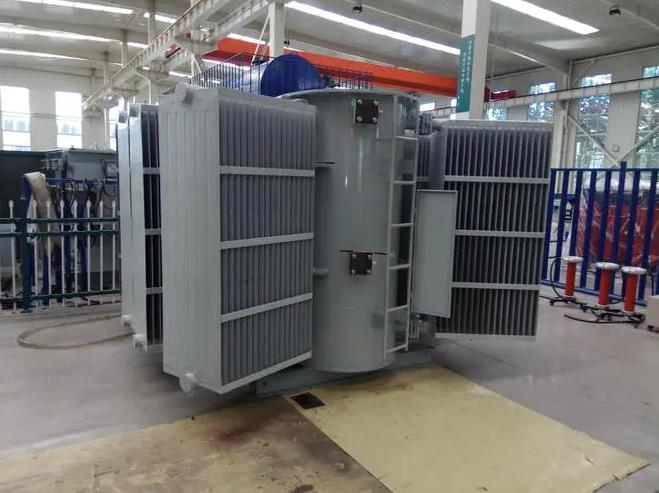

The 310mm radiator is commonly installed on:
| Transformer Rating | Typical Application |
|---|---|
| 100 kVA | Distribution |
| 160 kVA | Distribution |
| 250 kVA | Utility |
| 315 kVA | Utility |
| 500 kVA | Industrial |
| 630 kVA | Industrial |
| 800 kVA | Distribution |
| 1000 kVA | Distribution |
| 1250 kVA | Power Distribution |
Actual radiator quantity depends on transformer design, ambient temperature, cooling method, and load requirements.

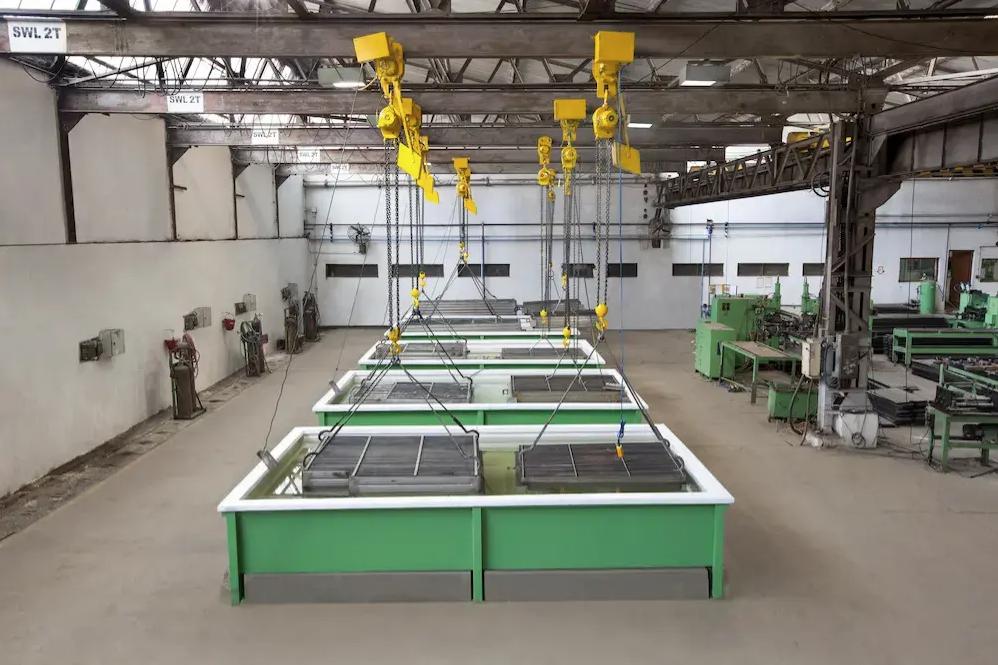

Our manufacturing process follows strict quality control procedures.
Each production batch is traceable for quality assurance.
Every 310mm transformer radiator is inspected for:
Over years of manufacturing experience in transformer cooling components.
Customized solutions for transformer manufacturers worldwide.

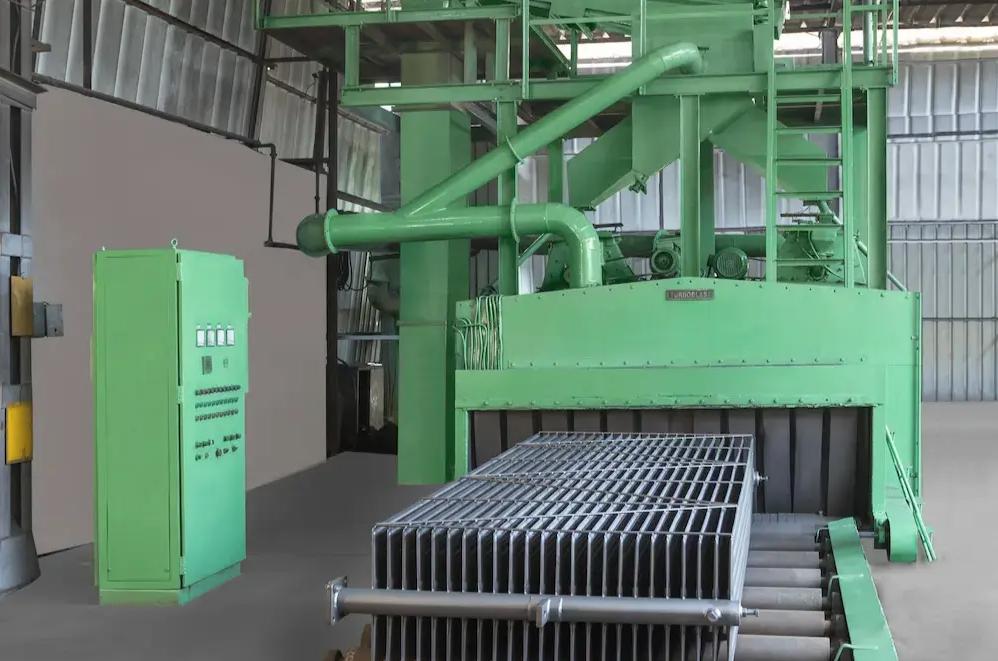

Automated production lines ensure consistent quality and fast delivery.
Products supplied to customers in:
Standard models can typically be shipped within 15 days, subject to order quantity and production schedule.
| Feature | 310mm | 480mm | 520mm |
|---|---|---|---|
| Panel Width | 310 mm | 480 mm | 520 mm |
| Cooling Area | Medium | High | Very High |
| Common Use | Distribution | Power | Large Power |
| Installation Space | Compact | Medium | Larger |
| OEM Available | Yes | Yes | Yes |
It refers to the width of the corrugated radiator panel used for transformer cooling.
Yes. Width, height, flange dimensions, and fin quantity can all be customized.

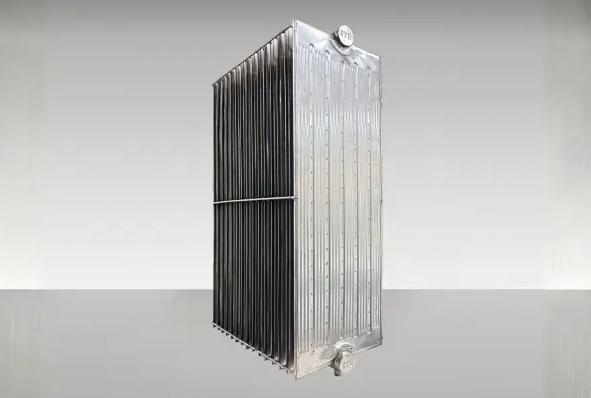

Yes. HDG surface treatment is available for projects requiring enhanced corrosion resistance.
The radiator is suitable for:
Products can be manufactured according to applicable IEC specifications and customer technical drawings. Additional inspection or testing requirements can also be accommodated.
Looking for a reliable 310mm transformer radiator manufacturer?
Our engineering team can provide:
Simply send us your transformer rating, radiator dimensions, required quantity, flange size, and technical drawings (if available), and we will prepare a tailored quotation for your project.
