OEM Corrugated Transformer Radiators for Distribution & Power Transformers

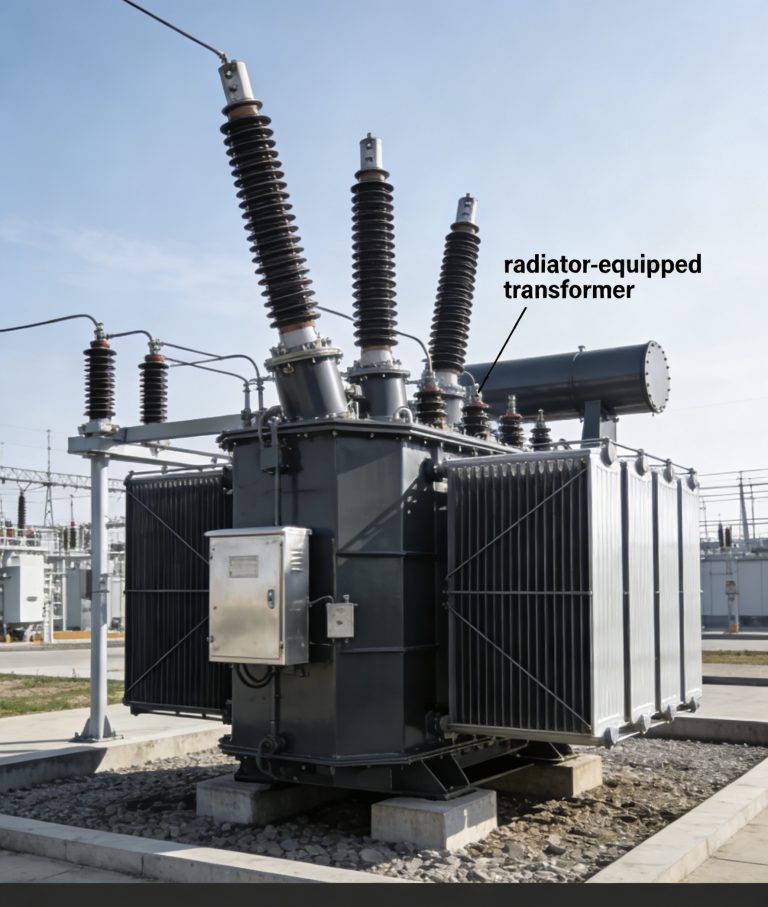

Our 480mm transformer radiators are designed for oil immersed transformers, distribution transformers, and power transformers requiring reliable heat dissipation and long service life.

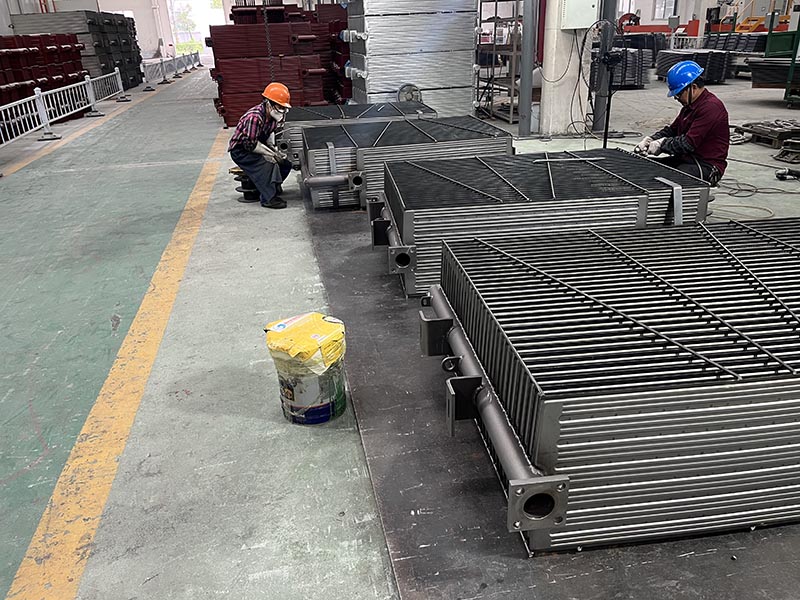

With advanced automatic production lines, robotic welding, and strict pressure testing, we manufacture high-quality radiator panels for transformer manufacturers, EPC contractors, utilities, and industrial projects worldwide.
Whether you require standard models or custom dimensions, we provide OEM manufacturing with competitive factory pricing and fast delivery.

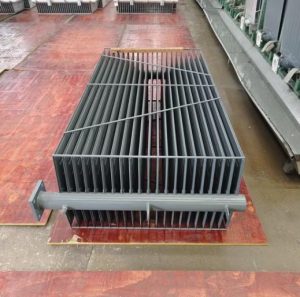

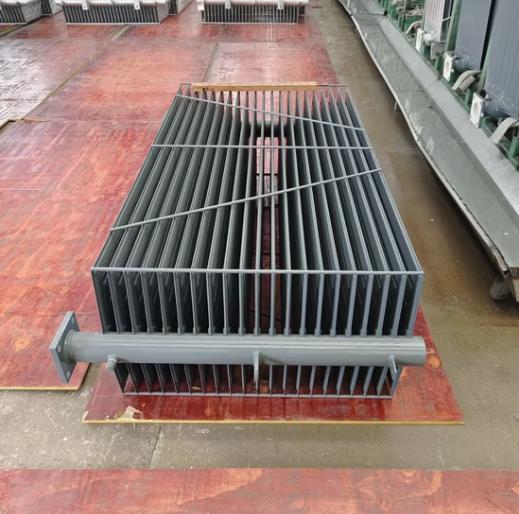

The optimized corrugated fin structure increases cooling surface area and improves natural oil circulation, helping reduce transformer operating temperature and extend insulation life.
We manufacture according to:
Custom branding and private labeling are available.

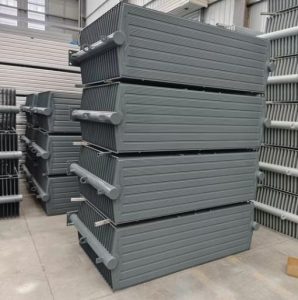

Manufactured using premium cold rolled steel with precision forming technology.
Optional surface treatments include:
Suitable for tropical, coastal, desert and industrial environments.
Every radiator undergoes:
Leak-free performance is verified before shipment.
| Item | Specification |
|---|---|
| Product | 480mm Transformer Radiator |
| Panel Width | 480 mm |
| Height | 500–3500 mm |
| Material | Cold Rolled Steel |
| Cooling Type | ONAN / ONAF |

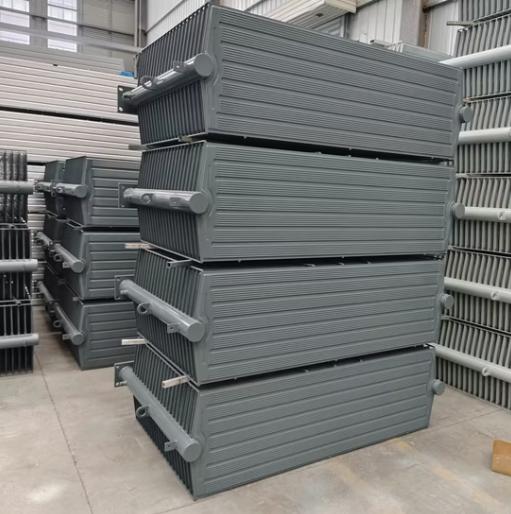

| Surface Finish | HDG / Powder Coating |

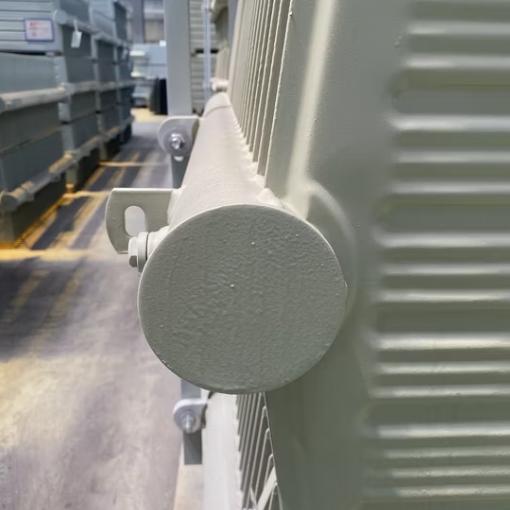

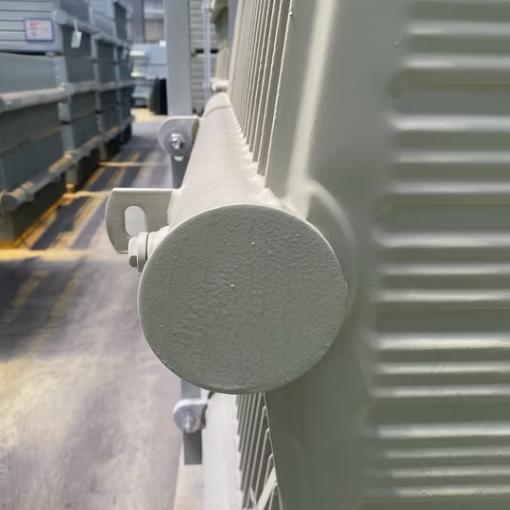

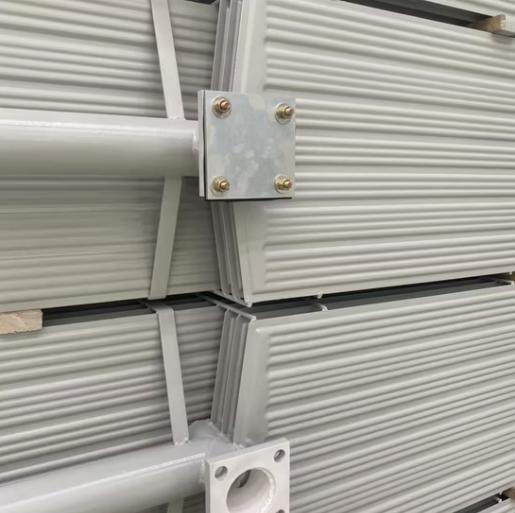

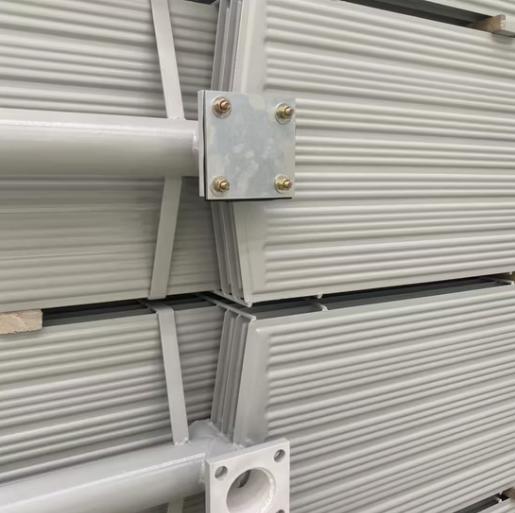

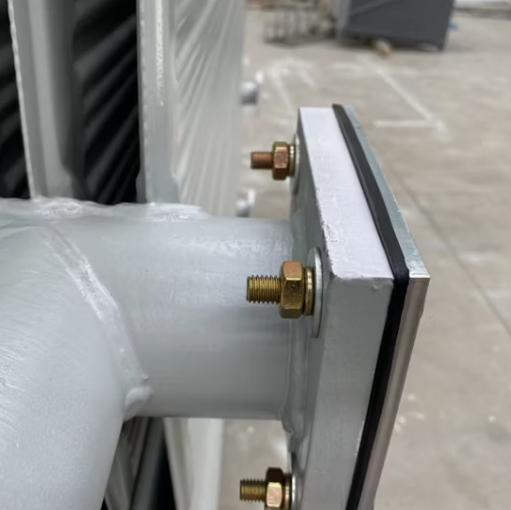

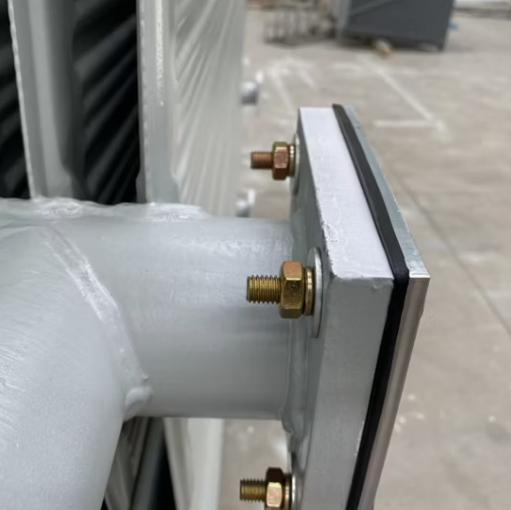

| Connection | Flange Type |
| Pressure Test | Up to 0.8 MPa |
| Standard | IEC |
| OEM | Available |

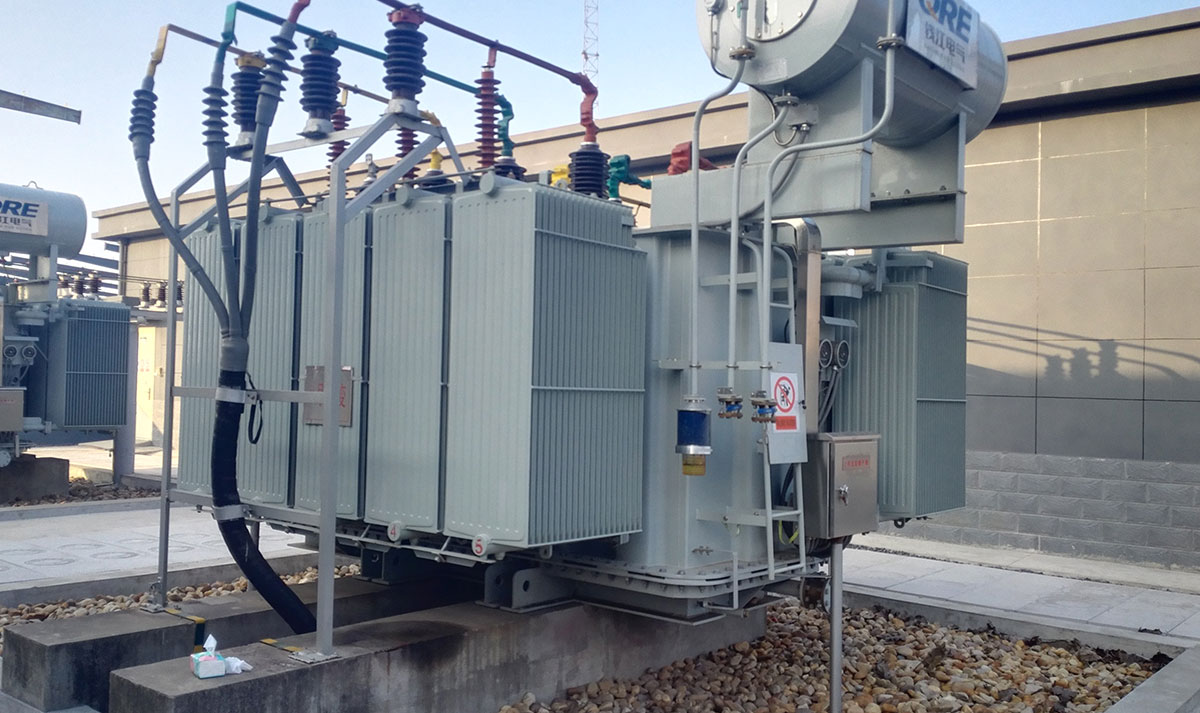

Our 480mm transformer radiators are widely used for:
480mm radiator panels are commonly used in:
| Transformer Capacity |
|---|
| 500 kVA |
| 630 kVA |
| 800 kVA |
| 1000 kVA |
| 1250 kVA |
| 1600 kVA |
| 2000 kVA |
| 2500 kVA |
| 3150 kVA |
| 5000 kVA |
The required radiator quantity depends on transformer losses, cooling method, ambient temperature, and design calculations.

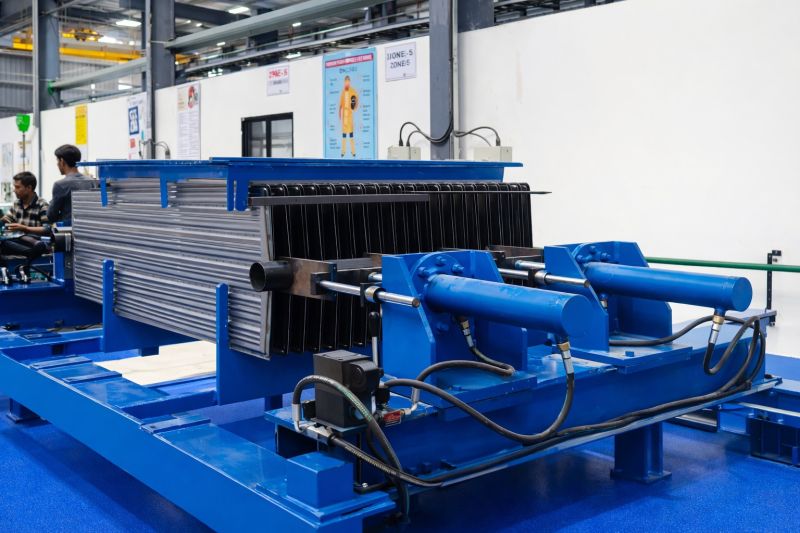

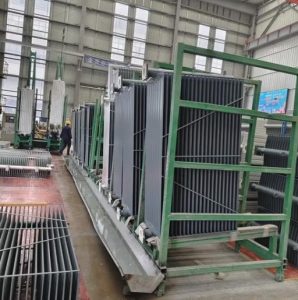

Our production process includes:
Each production batch is traceable to ensure consistent quality.
We provide customized radiator solutions including:
Purchase directly from the manufacturer without intermediaries.
Custom production for transformer factories and EPC contractors.
Technical review and quotation typically provided within 24 hours.

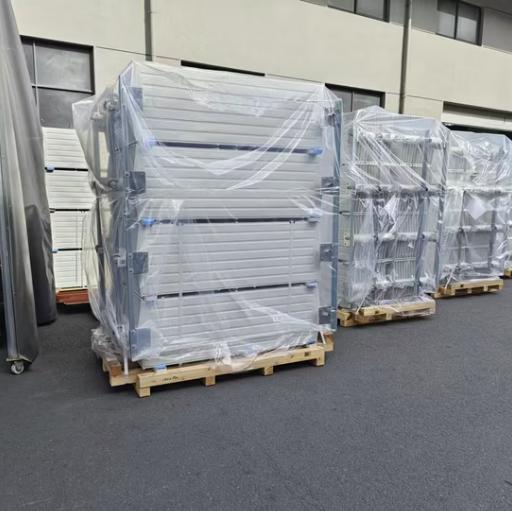

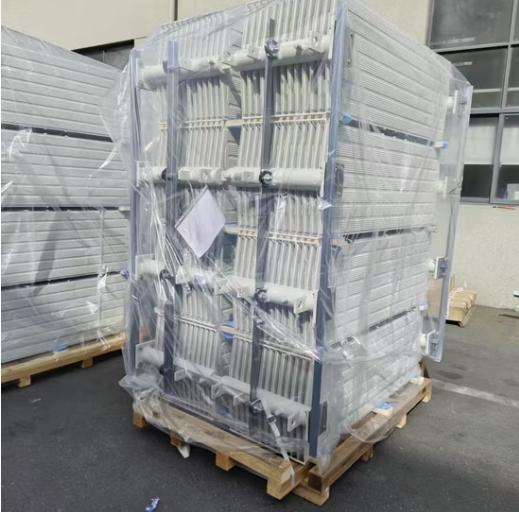

Standard models can often be produced within 15–20 days, depending on order quantity and production schedule.

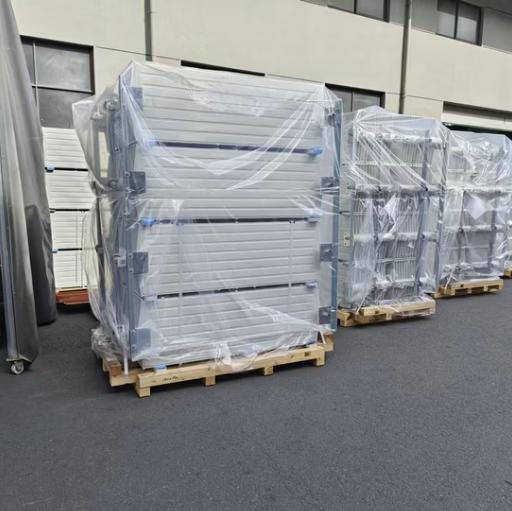

Products supplied to customers in:

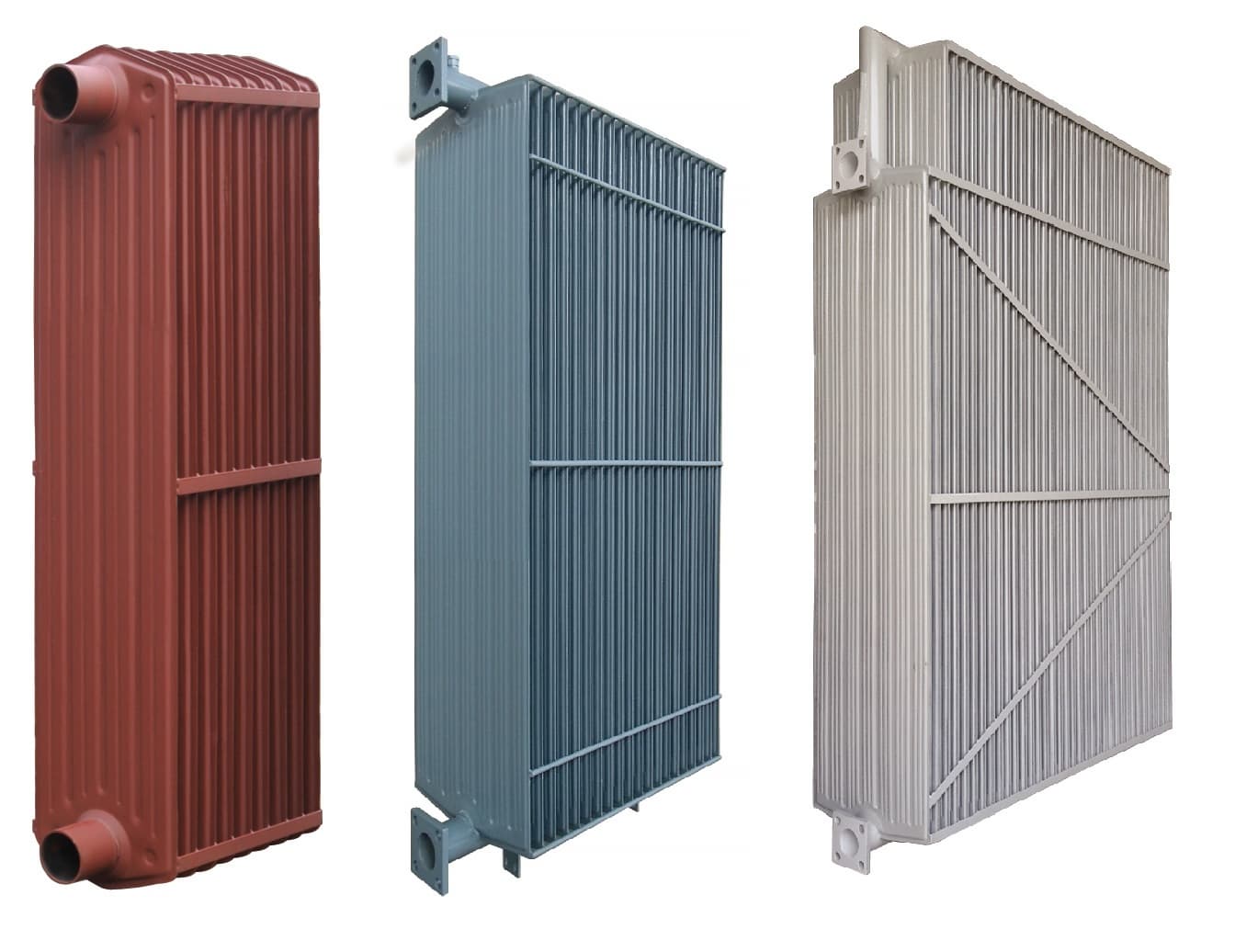

| Model | Application | Cooling Area |
|---|---|---|
| 310mm | Small Distribution Transformer | Medium |
| 480mm | Distribution & Power Transformer | High |
| 520mm | Large Power Transformer | Maximum |
Selecting the correct radiator width should be based on transformer thermal calculations, installation space, and project specifications.
480mm refers to the nominal width of the corrugated radiator panel.
Yes. We support OEM manufacturing based on customer drawings and specifications.
Yes. Hot-dip galvanized radiators are available for projects requiring enhanced corrosion resistance.
Suitable for ONAN and ONAF oil-immersed transformer cooling systems.
Products are manufactured according to applicable IEC requirements and customer technical specifications.
Please send:
Our engineering team will prepare a tailored quotation.
Looking for a reliable 480mm Transformer Radiator Manufacturer?
Our team provides:
Contact us today to receive a customized quotation for your transformer cooling project.
