A transformer oil tank is the main steel enclosure used in oil-immersed transformers. It contains the transformer core, windings, insulating oil, and cooling systems while protecting internal electrical components from external contamination.
The tank serves as both a structural frame and a thermal management system.
Transformer oil inside the tank performs two essential functions:
The oil absorbs heat generated by transformer windings and transfers it through the tank walls or radiator systems into the surrounding air.
Without an efficient transformer oil tank, transformer temperatures would rise rapidly, resulting in insulation aging and reduced operational lifespan.
Modern power transformers operate under continuous electrical and thermal stress. During operation, current passing through windings generates heat. If this heat is not properly dissipated, transformer efficiency decreases and insulation materials degrade.
The transformer oil tank ensures:
For utility companies and EPC contractors, transformer tank quality directly affects substation reliability and maintenance costs.
The most important function of a transformer oil tank is thermal management.
Transformer oil circulates naturally or forcibly inside the tank. Heat generated by the transformer core and windings transfers into the oil and then dissipates through:
Efficient cooling prevents overheating and extends transformer service life.
| Cooling Method | Full Name | Application |
|---|---|---|
| ONAN | Oil Natural Air Natural | Distribution transformers |
| ONAF | Oil Natural Air Forced | Medium power transformers |
| OFAF | Oil Forced Air Forced | Large utility transformers |
| OFWF | Oil Forced Water Forced | High-capacity power systems |
Radiastar manufactures transformer oil tanks compatible with all major cooling systems.
Transformer oil acts as a dielectric insulation medium between energized components.
The oil tank protects the insulating oil from:
A properly sealed tank prevents insulation breakdown and maintains dielectric strength.
Radiastar transformer tanks are designed with high-performance sealing systems to minimize oil contamination risks.
Transformer oil tanks must support extremely heavy internal structures including:
Large power transformer tanks may weigh tens of tons and must withstand:
Radiastar uses reinforced structural steel and precision welding technology to ensure maximum mechanical strength.
Transformer oil expands and contracts with temperature fluctuations.
Transformer tanks incorporate expansion management systems such as:
These systems maintain stable internal pressure and prevent tank deformation.
Different transformer applications require different tank structures.

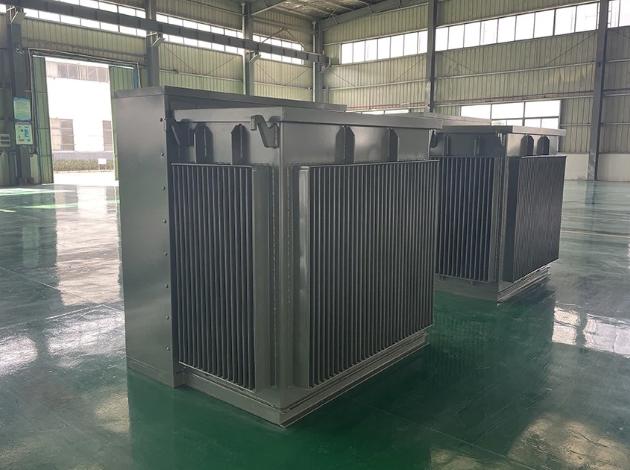

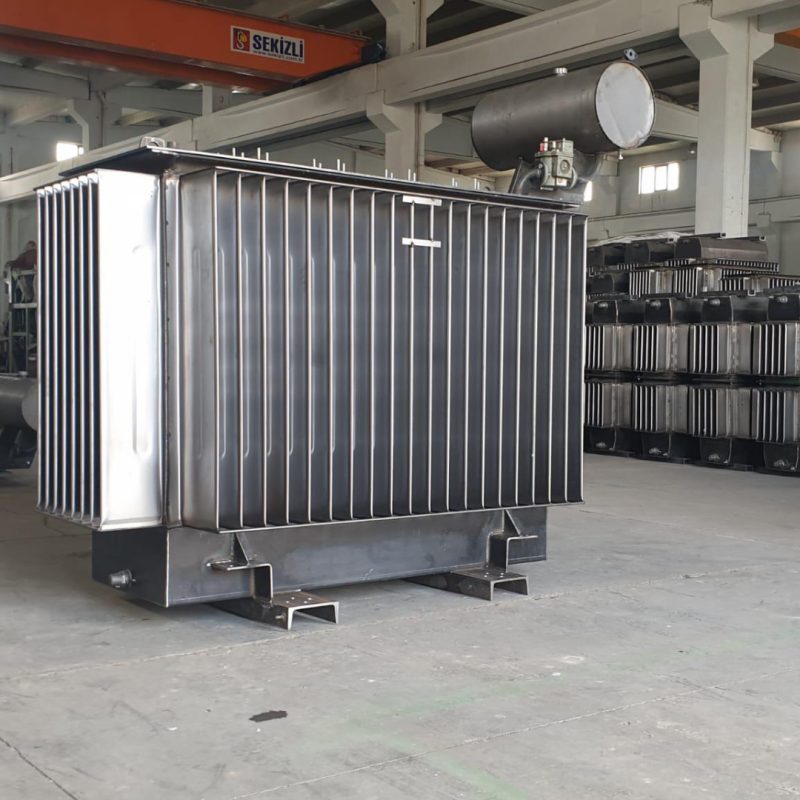

Corrugated transformer tanks use flexible corrugated fins integrated into the tank wall.
These fins function as:
Radiastar produces customized corrugated transformer tanks for various voltage levels and capacities.

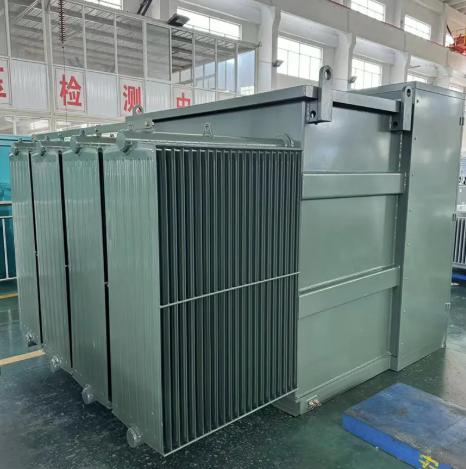

Radiator-type tanks use detachable radiator panels connected externally.
These tanks are widely used in:
Radiastar manufactures detachable radiator systems with leak-proof flange technology and high anti-corrosion coatings.

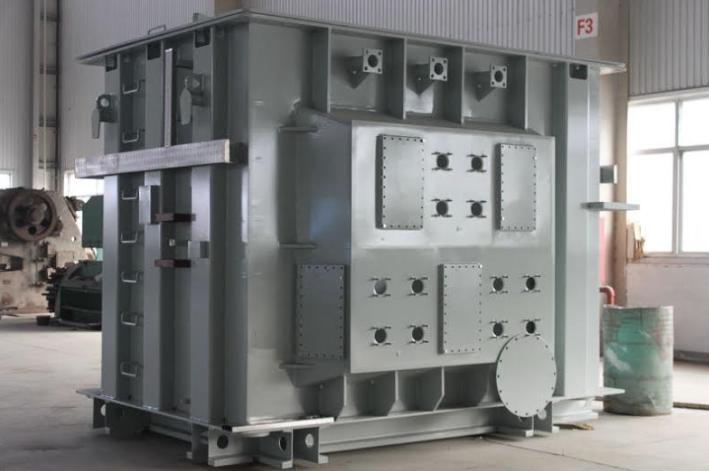

Bell-type transformer tanks separate the upper cover from the lower body.
Commonly used for high-voltage and large-capacity transformers.
Hermetically sealed tanks completely isolate transformer oil from air contact.
This design is increasingly popular in modern energy-efficient transformers.
Material quality directly influences transformer durability and operational safety.
| Material | Advantages |
|---|---|
| Carbon Steel | High strength and cost-effective |
| Stainless Steel | Excellent corrosion resistance |
| Galvanized Steel | Improved anti-rust protection |
| Weathering Steel | Suitable for harsh outdoor environments |
Radiastar selects high-grade steel materials according to project conditions and environmental requirements.
High-quality transformer tanks require advanced engineering and strict quality control.
Radiastar uses CNC laser and plasma cutting equipment to ensure precision dimensions and clean edges.
Hydraulic forming systems shape tank panels with high dimensional accuracy.
Welding quality is one of the most important factors in transformer tank manufacturing.
Radiastar applies:
Strict welding inspection ensures leak-free performance.
Every transformer oil tank undergoes multiple tests including:
Transformer tanks require strong corrosion resistance for outdoor environments.
Radiastar uses:
These coatings improve durability in coastal, desert, tropical, and industrial environments.
Below is a typical technical parameter table for Radiastar transformer oil tanks.
| Parameter | Specification |
|---|---|
| Voltage Class | 10kV – 220kV |
| Transformer Capacity | 100kVA – 250MVA |
| Tank Thickness | 3mm – 20mm |
| Cooling Type | ONAN / ONAF / OFAF |
| Surface Treatment | Sandblasting + Anti-Corrosion Paint |
| Welding Standard | ISO / AWS |
| Leakage Rate | ≤0.01% |
| Operating Temperature | -45°C to +55°C |
| Corrosion Protection | C3 / C4 / C5 Optional |
| Protection Grade | IP54 / Custom |
| Standards | IEC / ANSI / DIN |
Radiastar also supports customized transformer tank manufacturing according to customer drawings and EPC project requirements.
Efficient oil circulation and cooling structures improve transformer heat dissipation.
Stable operating temperatures reduce insulation aging and extend equipment life.
Leak-proof structures and sealed designs reduce maintenance frequency.
Reinforced tank structures withstand internal pressure and environmental stress.
Modern transformer tanks minimize oil leakage and environmental contamination risks.
Transformer oil tanks are widely used in multiple industries and power systems.
Large-capacity power transformers rely on heavy-duty oil tanks for thermal management and operational safety.
Solar and wind farms use oil-immersed transformers for voltage conversion and grid integration.
Radiastar provides transformer tanks for:
Traction transformers require vibration-resistant oil tanks capable of handling harsh operating conditions.
Radiastar has extensive experience manufacturing transformer tanks for railway power projects.
Industrial plants require reliable transformers for:
Modern data centers require highly reliable power distribution systems with efficient transformer cooling.
As a professional transformer component manufacturer, Radiastar Transformer Tank Factory provides advanced transformer oil tank solutions for customers worldwide.
Radiastar operates modern production facilities equipped with:
This ensures consistent product quality and efficient production.
Every transformer oil tank undergoes comprehensive inspection including:
Radiastar follows international quality standards to ensure long-term reliability.
Radiastar supports:
Radiastar products have been exported to:
Applications include:
The transformer industry is evolving rapidly.
Modern transformer tanks increasingly incorporate:
Environmental regulations are encouraging:
Modern substations require transformer tanks with:
Radiastar continues investing in research and advanced manufacturing technologies to meet future industry demands.
Check:
Repair damaged paint immediately to prevent rust.
Regularly test:
Abnormal pressure changes may indicate internal transformer issues.
The tank houses transformer oil, windings, and the core while providing insulation and cooling.
Common causes include poor welding, aging gaskets, corrosion, and transportation damage.
They combine cooling and oil expansion functions while reducing maintenance requirements.
Yes. Radiastar provides customized transformer oil tanks based on customer technical drawings and specifications.
Radiastar products comply with IEC, ANSI, DIN, and customer-specific international standards.
Transformer oil tanks are essential components that directly influence transformer cooling efficiency, insulation reliability, operational safety, and equipment lifespan.
As global energy infrastructure expands, demand for durable and efficient transformer oil tanks continues to rise across utility, renewable energy, railway, and industrial sectors.
With advanced manufacturing technology, strict quality control, and extensive export experience, Radiastar has become a reliable global supplier of transformer oil tank solutions.
Whether your project requires:
Radiastar delivers high-performance solutions engineered for reliability, efficiency, and international standards compliance.
