A Finned Radiator For Transformer is an essential cooling component used in oil immersed transformers to improve heat dissipation and maintain safe operating temperatures during continuous power operation.
As a professional Transformer Radiator Manufacturer and Oil Transformer Spare Parts Supplier, we provide high-quality finned radiator panels, transformer cooling radiators, and customized OEM solutions for power utilities, transformer manufacturers, electrical contractors, and maintenance companies across the Middle East.
Our transformer finned radiators are widely used in:
With excellent cooling performance, corrosion resistance, and long service life, our Transformer Finned Radiators are designed for harsh environments including high temperature and desert climate conditions.

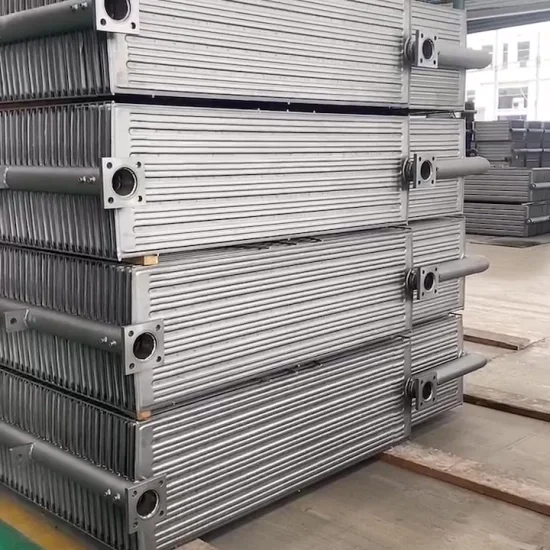

A Transformer Finned Radiator is a heat exchange device installed outside an oil filled transformer tank.
During transformer operation, electrical losses generate heat inside the transformer oil. The hot oil flows through the radiator fins, where heat is transferred to the surrounding air.
The fin structure increases the cooling surface area, allowing the transformer to operate efficiently under heavy electrical loads.
A transformer finned radiator helps:
Finned radiators are mainly used for:
Large capacity transformers require efficient cooling systems to maintain stable operation.
Applications:
Transformer fin radiators help maintain temperature control for:
Used in:
The Middle East has unique operating conditions:
Therefore, transformer cooling components must provide:
Our finned radiator design provides:
Transformer radiators are manufactured with:
Suitable for:
Our transformer radiator panels are designed for:
| Parameter | Specification |
|---|---|
| Product Name | Finned Radiator for Oil Filled Transformer |
| Product Type | Transformer Cooling Radiator Panel |
| Cooling Method | ONAN / ONAF Compatible |
| Material | High Quality Cold Rolled Carbon Steel |
| Steel Thickness | 1.2 mm / 1.5 mm / 2.0 mm (Custom Available) |
| Standard Panel Width | 310 mm / 480 mm / 520 mm / 535 mm / 620 mm |
| Panel Height | 1000–3500 mm (Customized) |
| Center Distance | Customized According to Transformer Design |
| Working Pressure | ≤0.5 MPa |
| Test Pressure | 0.8 MPa Hydraulic Test |
| Leakage Test | 100% Factory Pressure Tested |
| Surface Treatment | Sand Blasting + Anti-Rust Primer + Powder Coating |
| Paint Color | RAL7035 / RAL7032 / Customer Required |
| Cooling Fin Type | Corrugated Fin Design |
| Connection Type | Flange Connection / Welded Connection |
| Applicable Transformer | Distribution & Power Transformer |
| Transformer Capacity | 100 kVA – 500 MVA |
| Ambient Temperature | -40°C to +60°C |
| Design Standard | IEC 60076 |
| Manufacturing Standard | ISO 9001 Certified |
| OEM Service | Available |
| Export Market | Saudi Arabia, UAE, Qatar, Oman, Kuwait, Iraq, Africa, Europe |
。
| Panel Width | Popular Markets |
|---|---|
| 310 mm | Distribution Transformer |
| 480 mm | Oil Transformer |
| 520 mm | Power Transformer |
| 535 mm | Middle East Power Grid |
| 620 mm | Large Power Transformer |
| Height | Typical Transformer Capacity |
|---|---|
| 1000 mm | 100–500 kVA |
| 1200 mm | 500–800 kVA |
| 1500 mm | 800–1250 kVA |
| 1800 mm | 1250–2500 kVA |
| 2000 mm | 2500–5000 kVA |
| 2500 mm | 5–20 MVA |
| 3000 mm | 20–100 MVA |
| 3500 mm | 100–500 MVA |
Middle East buyers often ask for anti-corrosion treatment.
| Surface Finish | Application |
|---|---|
| Hot Dip Galvanized | Coastal Areas |
| Powder Coated | Desert Environment |
| Epoxy Primer | High Humidity |
| Polyurethane Finish | Outdoor Substations |
| Customer Color | OEM Projects |
| Cooling Type | Application |
|---|---|
| ONAN | Oil Natural Air Natural |
| ONAF | Oil Natural Air Forced |
| OFAF | Oil Forced Air Forced |
| OFWF | Oil Forced Water Forced |
| Item | Recommended Specification |
|---|---|
| Steel Thickness | 1.5 mm |
| Surface Treatment | Sand Blasting + Powder Coating |
| Paint | UV Resistant Outdoor Paint |
| Operating Temperature | -25°C ~ +60°C |
| Corrosion Protection | C4 / C5 Grade |
| Pressure Test | 0.8 MPa |
| Leakage Test | 100% Tested |
| Standard | IEC 60076 |
| Service Life | 25–30 Years |
| Service | Available |
|---|---|
| OEM Manufacturing | ✔ |
| ODM Design | ✔ |
| Customized Drawing | ✔ |
| Customized Height | ✔ |
| Customized Width | ✔ |
| Customized Flange | ✔ |
| Customized Color | ✔ |
| Private Label | ✔ |
| Export Packing | ✔ |
We specialize in manufacturing:
Our products support:
Common applications:
Popular searches:
Used for:
Popular searches:
Applications:
Search terms:
We provide customized transformer radiator solutions according to:
OEM services include:
✓ Custom radiator design
✓ Bulk manufacturing
✓ Export packaging
✓ Technical support
✓ Global shipping
Whether you need replacement transformer radiators or new transformer cooling components, we provide complete supply solutions.
Before purchasing a transformer radiator, customers should confirm:
Cooling requirements depend on:
Important parameters:
For Middle East applications consider:
A finned radiator is used to cool transformer oil by increasing heat exchange surface area and improving natural cooling performance.
Yes. Transformer finned radiators are widely used in Middle East environments because they provide reliable cooling performance under high temperatures.
Yes. We provide OEM transformer radiator manufacturing according to customer drawings and technical specifications.
Yes. We supply transformer cooling radiators and spare parts to customers worldwide, including Middle East, Africa, Europe, and America.
If you are looking for a reliable:
we provide high-quality Finned Radiator For Transformer solutions for global electrical industries.
Contact us for:
