Transformer radiators are essential cooling components for oil-immersed transformers. They remove heat generated by transformer losses and maintain safe operating temperatures.
The two common radiator designs used in transformer cooling systems are:
Although both radiators perform the same basic function — transferring heat from transformer oil to the surrounding air — their structure, installation method, application scenarios, and customization requirements are different.
This guide explains the differences between Offset Radiator vs Straight Radiator, helping transformer manufacturers, utilities, and EPC contractors select the right cooling solution.

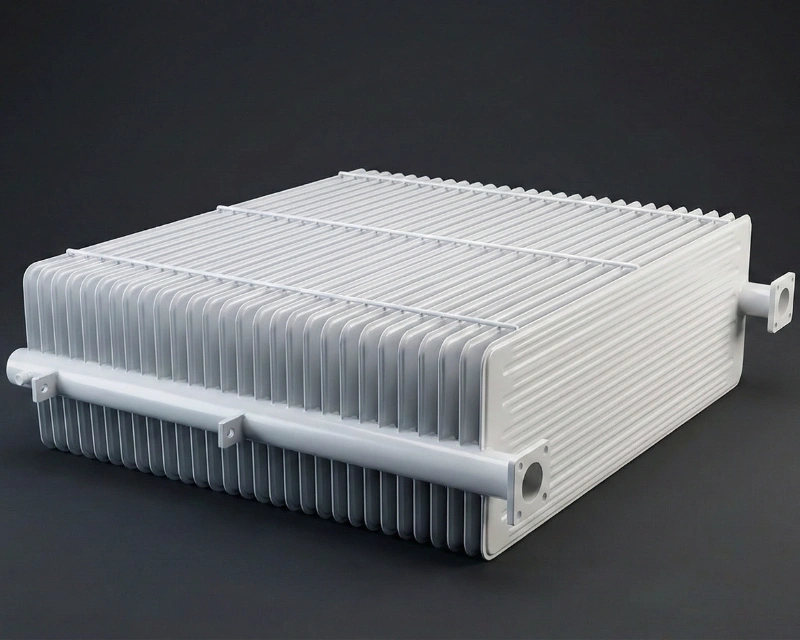

An Offset Transformer Radiator is a customized cooling radiator where the oil inlet and outlet connections are positioned away from the standard centerline.
The offset design allows the radiator to connect with transformer tanks where:
Offset radiators are widely used for:
A Straight Transformer Radiator is the conventional radiator design where the oil inlet and outlet connections are aligned vertically or horizontally in a standard position.
Straight radiators are commonly installed on:
They are the most widely used transformer cooling solution due to their simple structure and economical manufacturing.
| Comparison | Offset Radiator | Straight Radiator |
|---|---|---|
| Connection Position | Offset inlet/outlet | Straight aligned connection |
| Installation Flexibility | Excellent | Standard |
| Manufacturing Complexity | Higher | Lower |
| Customization | High | Medium |
| Installation Space | Suitable for limited space | Requires standard layout |
| Cost | Slightly higher | Lower |
| Cooling Performance | Similar | Similar |
| Replacement Application | Excellent | Limited |
| Production Lead Time | Longer | Shorter |
| Typical Use | Customized projects | Standard transformers |
The oil connection is shifted from the normal position.
Example:
Transformer Tank
|
|
Offset
\
\
RadiatorAdvantages:
The oil connection follows the standard straight arrangement.
Example:
Transformer Tank
|
|
|
RadiatorAdvantages:
Many buyers ask:
Does an Offset Radiator cool better than a Straight Radiator?
The answer:
The cooling performance is mainly determined by:
Not simply by whether the radiator is offset or straight.
| Factor | Offset Radiator | Straight Radiator |
|---|---|---|
| Heat Dissipation | Excellent | Excellent |
| Oil Circulation | Efficient | Efficient |
| ONAN Cooling | Suitable | Suitable |
| ONAF Cooling | Suitable | Suitable |
| Large Transformer Application | Yes | Yes |
| Customized Cooling Design | Better | Limited |
Offset design is preferred when:
Example:
When replacing old radiators, the original connection position may not match standard products.
Offset radiators allow:
Large transformers often require customized oil circulation arrangements.
Straight radiators are ideal when:
| Application | Recommended Radiator |
|---|---|
| Standard Distribution Transformer | Straight Radiator |
| Power Transformer | Both |
| 110kV Transformer | Offset / Straight |
| 220kV Transformer | Custom Design |
| Solar Transformer | Offset Recommended |
| Wind Transformer | Offset Recommended |
| Transformer Replacement | Offset Recommended |
| Large Quantity Production | Straight Radiator |
Offset radiators usually cost slightly more because of:
| Type | Estimated Price |
|---|---|
| Small Straight Radiator | USD 80–300 |
| Medium Straight Radiator | USD 300–800 |
| Small Offset Radiator | USD 150–500 |
| Large Offset Radiator | USD 800–2500+ |
Final price depends on:
✔ Transformer design is customized
✔ Installation space is limited
✔ Replacement radiator is required
✔ Oil connection position is special
✔ Project requires OEM manufacturing
✔ Transformer drawing is available
✔ Standard transformer design
✔ Large quantity purchase
✔ Simple installation
✔ Lower cost is priority
✔ Standard dimensions are available

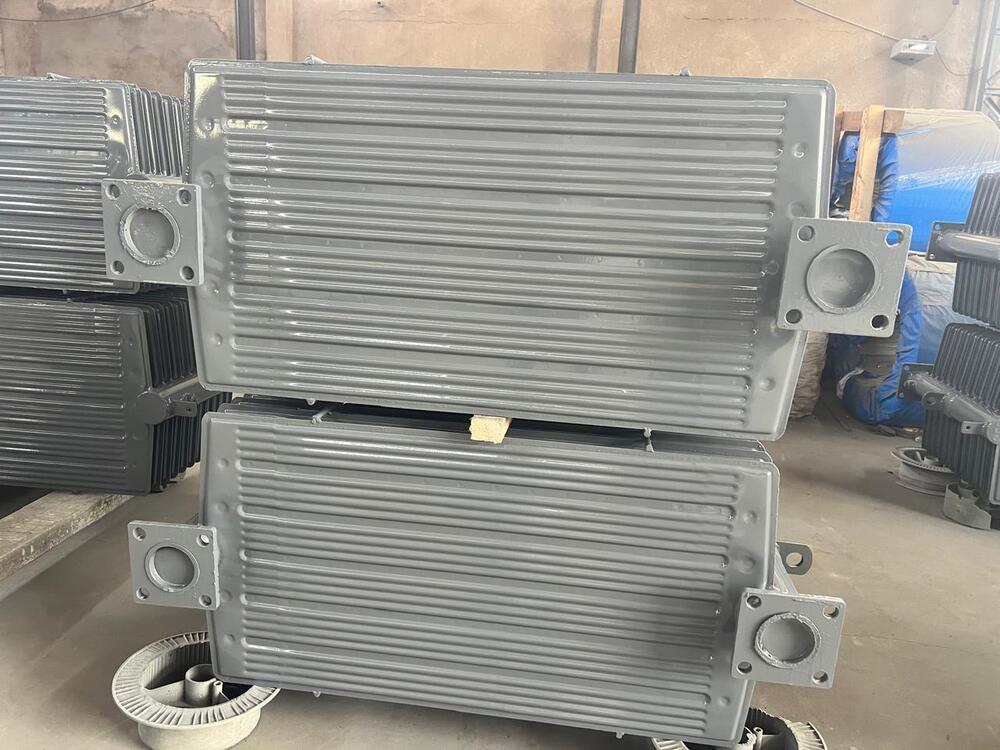

| Parameter | Offset Radiator | Straight Radiator |
|---|---|---|
| Voltage Range | 11kV–550kV | 11kV–550kV |
| Capacity Range | 50kVA–500MVA | 50kVA–500MVA |
| Cooling Type | ONAN/ONAF | ONAN/ONAF |
| Material | Carbon Steel | Carbon Steel |
| Panel Thickness | 1.2–2.5mm | 1.2–2.5mm |
| Pressure Test | Required | Required |
| Leak Test | 100% | 100% |
A professional transformer radiator manufacturer should provide:
Radiastar supports customized:
Radiastar specializes in manufacturing transformer cooling solutions for global customers.
Advantages:
No middleman, competitive pricing.
Manufactured according to:
Including:
Supporting customers in:
Neither design is universally better. Offset radiators provide better installation flexibility, while straight radiators offer simpler structure and lower cost.
Yes. If dimensions and oil connections are properly designed, offset radiators can replace standard radiators.
Usually yes, because they require customized manufacturing and engineering.
For large power transformers, both types can be used. The selection depends on transformer design, cooling requirements, and installation conditions.
The choice between Offset Radiator vs Straight Radiator depends mainly on transformer design requirements, installation conditions, and project budget.
For transformer manufacturers, utilities, and EPC contractors, working with an experienced radiator manufacturer ensures reliable cooling performance, accurate dimensions, and long-term transformer operation.
